SAVE NET SN-4016-SRCM-6H 16-POINT OUTPUT MODULE
Quick Overview
Manufactured By: SAVE NET
Manufacturer Part Number: SN-4016-SRCM-6H-N
IMS Product Code: 2144760
Packaging: Sold Individually
Description:

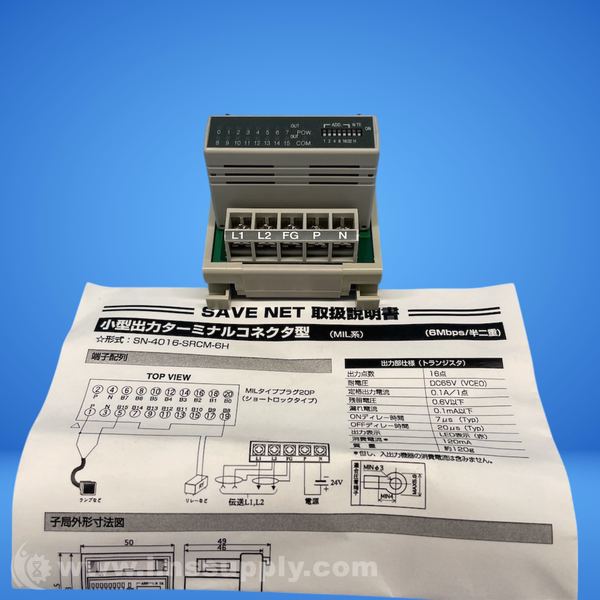

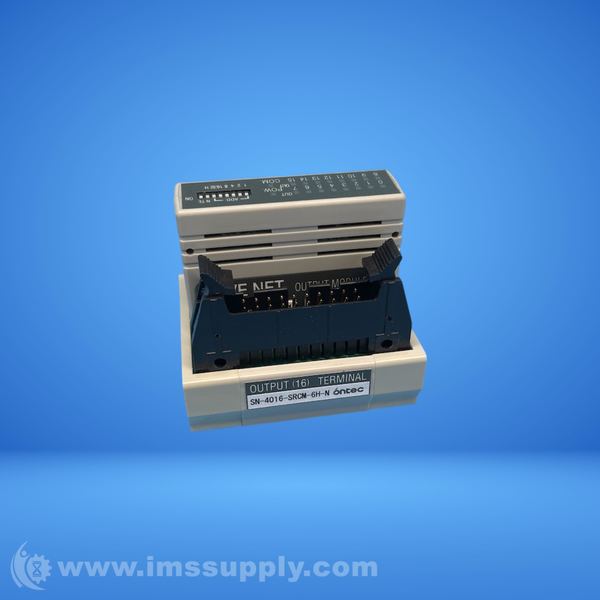

Save Net SN-4016-SRCM-6H 16-Point Output Module
A small output terminal connector type (MIL system) module with 16 output points and 6Mbps half-duplex communication speed.
Specifications
- Output Points: 16
- Rated Output Voltage: DC65V (VCEO)
- Rated Output Current: 0.1A per point
- Residual Voltage: 0.6V or less
- Leakage Current: 0.1mA or less
- ON Delay Time: 7us (Typ)
- OFF Delay Time: 20us (Typ)
- Output Indication: LED Indication
- Consumption Current: 120mA
- Weight: Approximately 120g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
