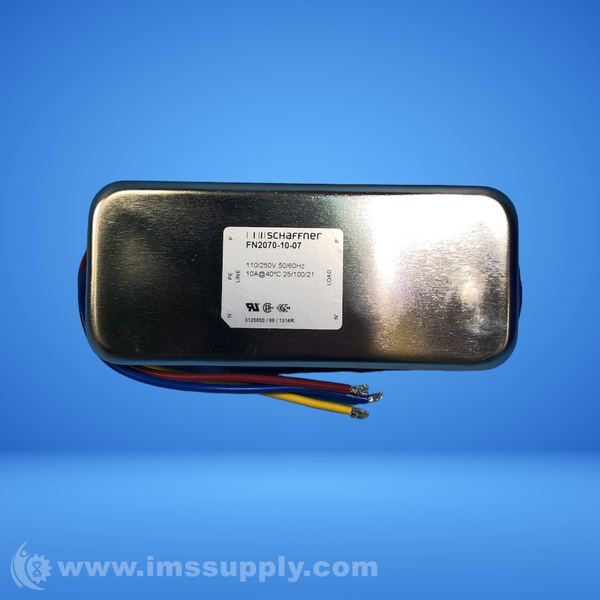

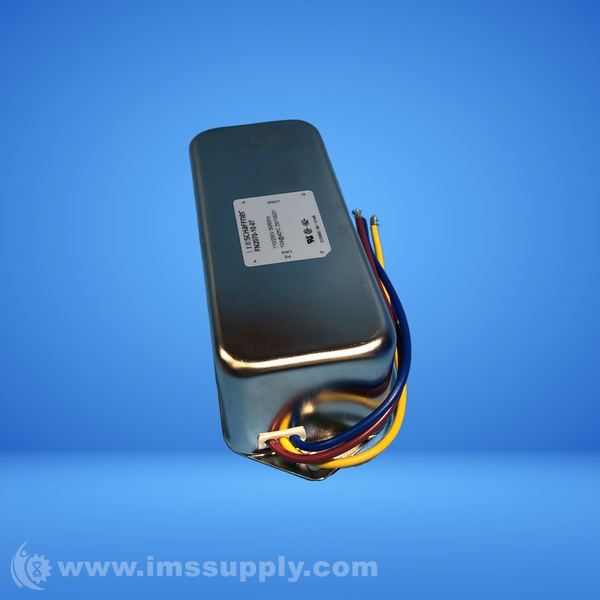

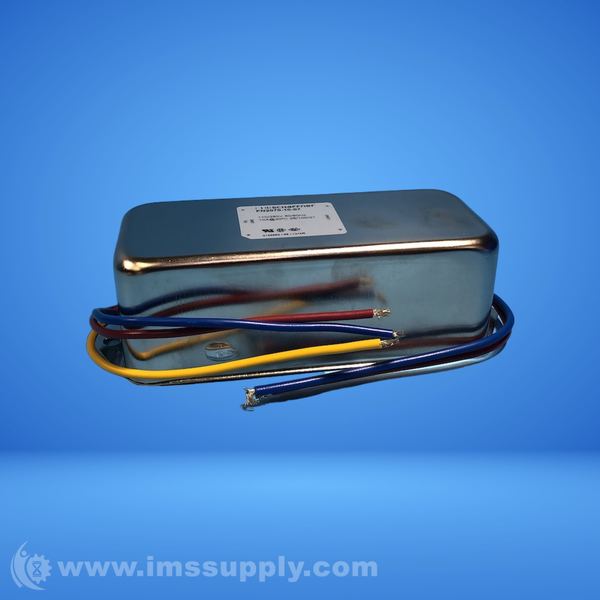

SCHAFFNER FN2070-10-07 10A EMC FILTER
Quick Overview
Manufactured By: SCHAFFNER
Manufacturer Part Number: FN2070-10-07
IMS Product Code: 2021467
Packaging: Sold Individually
Description:
Schaffner FN2070-10-07 10A EMC Filter
Single-phase, chassis mount, 250V AC, 10A EMC filter with wire leads
Specifications
- type: Chassis mount
- application: General
- phases: 1 Phase
- voltage ac: 250
- nominal frequency: 50
- rated current @ambient: 10
- ambient temperature: 40
- leakage current iec60939: 0.66
- input terminal: Wire Lead
- power loss: 9.1
- resistance: 220
- inductance l1: 4.5
- capacitance cx1: 1
- capacitance cy1: 4.7
- cm attenuation @ 150khz: 33
- dm attenuation @ 150khz: 66
- length: 130.5
- width: 56
- height: 45.4
- volume: 332
- weight: 598
- a (mm): 156
- b (mm): 57.5
- c (mm): 45.4
- d (mm): 130.5
- e (mm): 56
- f (mm): 143
- g (mm): 25
- h (mm): 12.4
- i (mm): 32.5
- j (mm): 15.5
- k (mm): 5.3
- l (mm): 6
- m (mm): 6.3 x 0.8
- o (mm): 8.4
- p (mm): 18
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
