SCHAFFNER FN2070-16-07 EMC FILTER
Quick Overview
Manufactured By: SCHAFFNER
Manufacturer Part Number: FN2070-16-07
IMS Product Code: 2138365
Packaging: Sold Individually
Description:

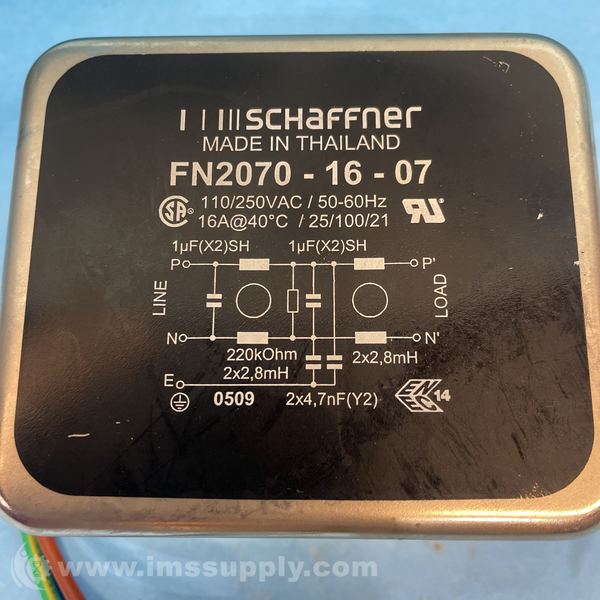

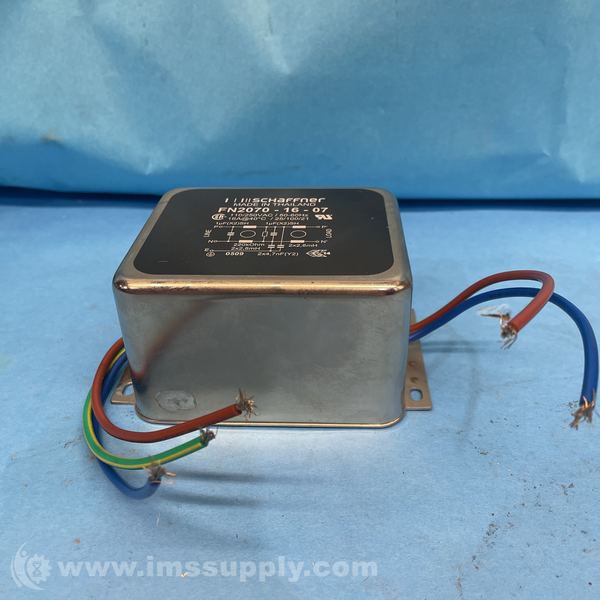

Schaffner FN2070-16-07 EMC Filter
16 A EMC filter with wire leads
Specifications
- Type: Chassis mount
- Application: General
- Phases: 1 Phase
- Voltage AC: 250
- Nominal Frequency: 50
- Rated Current @ambient: 16
- Ambient temperature: 40
- Leakage current IEC60939: 0.66
- Input terminal: Wire Lead
- Power Loss: 9.6
- Resistance: 220
- Inductance L1: 2.8
- Capacitance Cx1: 1
- Capacitance Cy1: 4.7
- CM attenuation @ 150kHz: 28
- DM attenuation @ 150kHz: 58
- Length: 98.5
- Width: 84.5
- Height: 57.6
- Volume: 479
- Weight: 1000
- A (mm): 119
- B (mm): 85.5
- C (mm): 57.6
- D (mm): 98.5
- E (mm): 84.5
- F (mm): 109
- G (mm): 40
- H (mm): 15.6
- J (mm): 42.25
- K (mm): 4.4
- L (mm): 7.4
- M (mm): 1.2 / 6.3 x 0.8
- O (mm): 8.6
- P (mm): 42.25
- Series: FN2070
- Mounting Style: Chassis Mount
- Current Rating: 16 A
- Termination Style: Wire
- Voltage Rating: 250 VAC
- Filter Type: 1-Phase Two-Stage Filter
- Operating Frequency: 0 Hz to 400 Hz
- Leakage Current: 660 uA
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
