SCHLAGE L9080 STOREROOM MORTISE LOCK
Quick Overview
Manufactured By: SCHLAGE
Manufacturer Part Number: L9080
IMS Product Code: 2165577
Packaging: Sold Individually
Description:

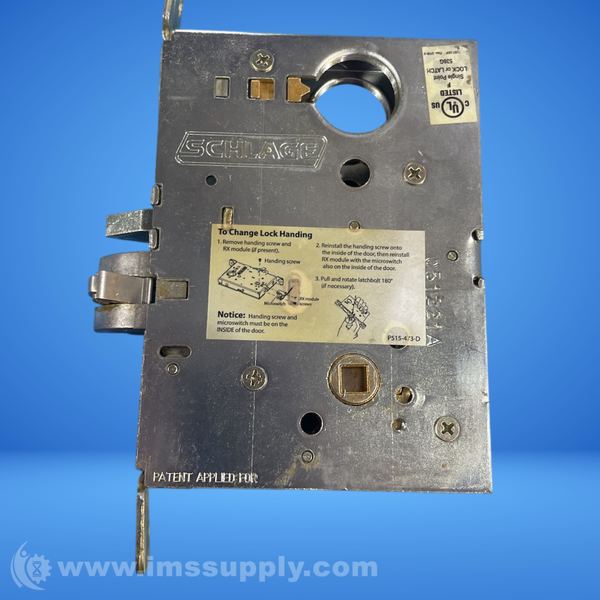

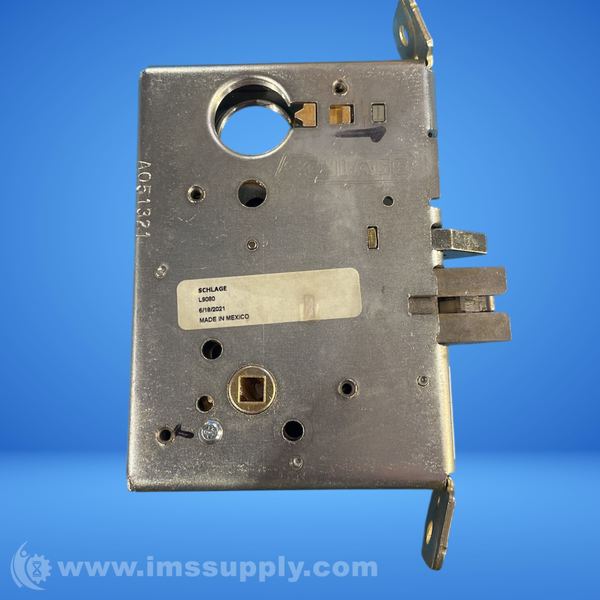

Schlage L9080 Storeroom Mortise Lock
The Schlage L Series is a heavy-duty mortise lockset designed for high-traffic facilities. It features a storeroom function with keyed entry and free egress.
Specifications
- Latchbolt: retracted from key outside or inside handle
- Handing: Field-reversible without disassembly
- Door Thickness: 1-3/4� standard, 1-3/8� to 2-1/2� optional
- Backset: 2-3/4� only
- Armored Front: 1-1/4� x 8� x 7/32�
- Case Size: 4-7/16� x 6-1/16� x 1�
- Spacing: Knob or lever to cylinder, 3-7/8�; knob or lever to thumbturn hub, 2-11/16�
- Bolts: 1� throw stainless steel deadbolt and 3/4� throw stainless steel latch with anti-friction tongue
- Cylinder & Keys: 6-pin C keyway cylinder with two keys standard
- Keying Options: Interchangeable core, master keying, grand master keying
- Weight: 3.50 LBS
- Finish: 626 - Satin Chrome
- Lever Design: Various options including 03A, 06A, and Lattitude

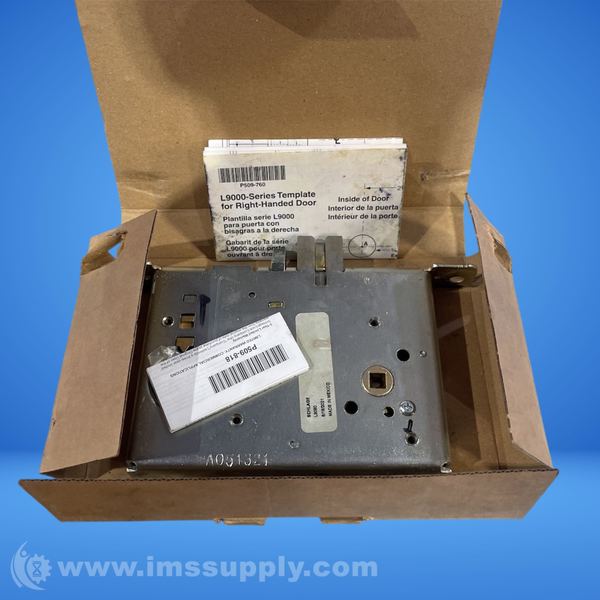

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 36 minutes.
