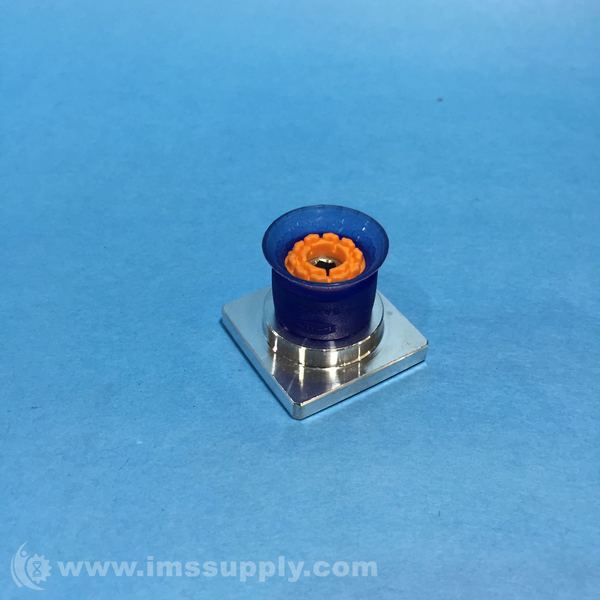

SCHMALZ SAXM-20-ED-85-RA SUCTION CUP
Quick Overview
Manufactured By: SCHMALZ
Manufacturer Part Number: SAXM-20-ED-85-RA
IMS Product Code: 1861647
Packaging: Sold Individually
Description:
Schmalz SAXM-20-ED-85-RA Suction Cup
Bell suction cup for strongly curved surfaces
Specifications
- Size: 20
- Suction cup material: Elastodur ED
- Material hardness: 85 Shore A
- Nipple material: Aluminum
- Connection: RA
- dn: 5.1 mm
- Dmax(S): 26 mm
- Ds: 21.8 mm
- H: 26 mm
- L4: 31.8 mm
- Z (Stroke): 3 mm
- Suction force: 20 N
- Lateral force: 15 N
- Lateral force oily surface: 20 N
- Volume: 1.55 cm³
- Workpiece radius min. (convex): 20 mm
- Hose inner diameter (recom.): 5 mm
- Number of folds: 0
- Weight: 24.9 g
- Product family: SAXM
