SCHMERSAL 103006865 SOLENOID INTERLOCK SWITCH
Quick Overview
Manufactured By: SCHMERSAL
Manufacturer Part Number: 103006865
IMS Product Code: 2133221
Packaging: Sold Individually
Description:

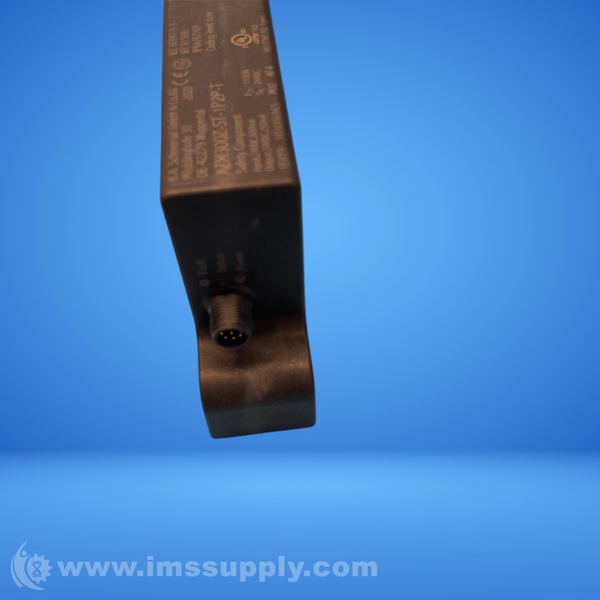

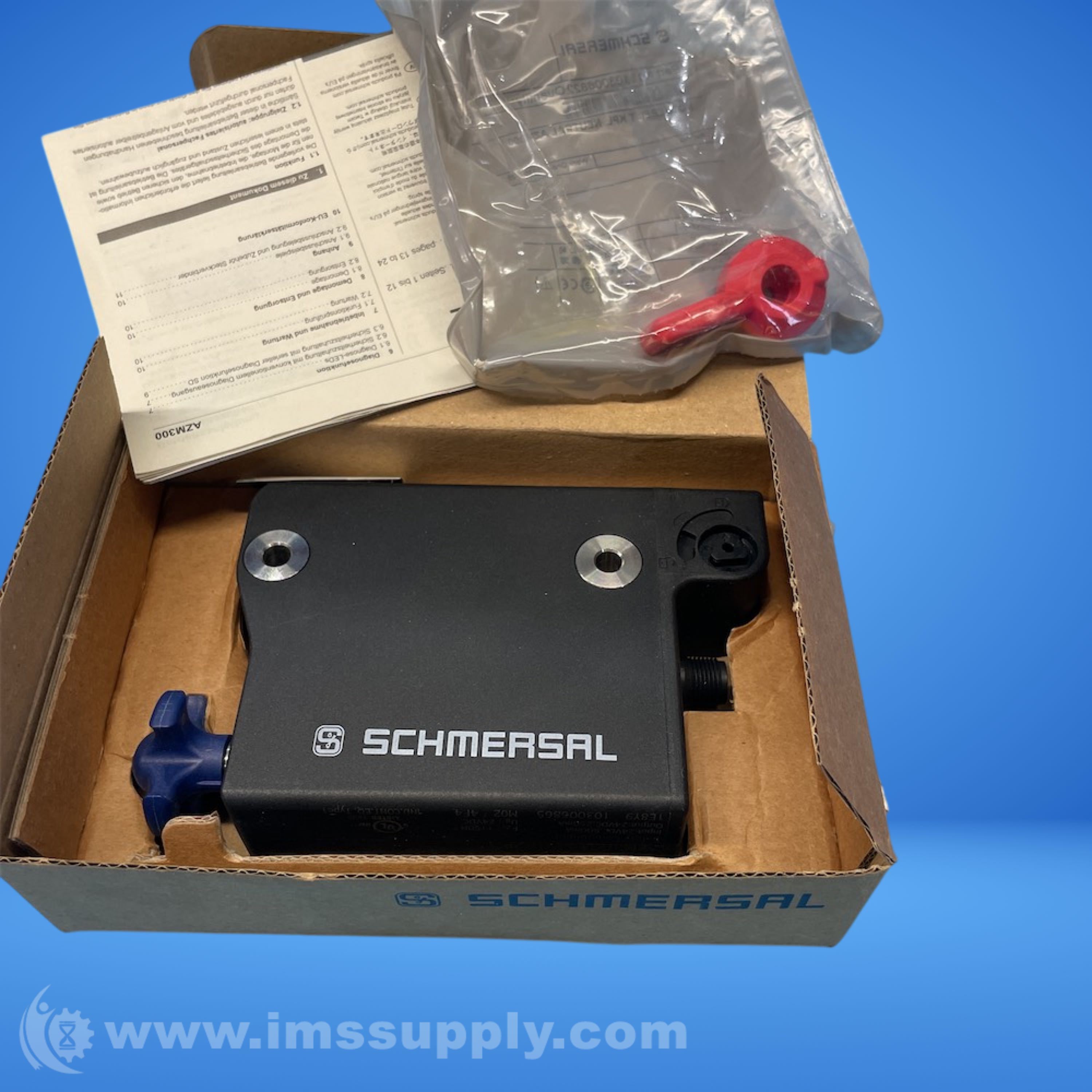

Schmersal 103006865 Solenoid Interlock Switch
Solenoid interlock switch with RFID technology, guard locking monitored, power to unlock, emergency exit, and diagnostic output. Connector M12, 8-pole. Suitable for hinged and sliding guards.
Specifications
- manufacturer: Schmersal
- part_number: 103006865
- model: AZM300Z-ST-1P2P-T
- type: Interlock Switch
- material: Glass-fibre reinforced thermoplastic
- color: Black
- finish: Matte Black
- application: Industrial
- country_region_of_manufacture: Germany
- working_principle: RFID
- frequency_band_rfid: 125 kHz
- transmitter_output_maximum: -6 dBm
- power_to_unlock: Yes
- solenoid_interlock_monitored: Yes
- latching: Yes
- emergency_exit: Yes
- short_circuit_detection: Yes
- cross_circuit_detection: Yes
- series_wiring: Yes
- safety_functions: Yes
- integral_system_diagnostics_status: Yes
- number_of_actuating_directions: 3
- number_of_fail_safe_digital_outputs: 2
- performance_level_up_to: e
- category: 4
- pfh_value: 5.20 x 10?¹° /h
- pfd_value: 4.50 x 10?5
- safety_integrity_level_sil_suitable_for_applications_in: 3
- mission_time: 20 Year(s)
- mechanical_lifetime_minimum: 1,000,000 Operations
- holding_force_fzh_in_accordance_with_en_iso_14119: 1,150 N
- holding_force_fmax_maximum: 1,500 N
- latching_force_adjustable_position_1: 25 N
- latching_force_adjustable_position_2: 50 N
- type_of_the_fixing_screws: 2x M6
- tightening_torque_of_the_fixing_screws_minimum: 6 Nm
- tightening_torque_of_the_fixing_screws_maximum: 7 Nm
- switch_distance_typical: 2 mm
- assured_switching_distance_on_sao: 1 mm
- assured_switching_distance_off_sar: 20 mm
- length_of_sensor_chain_maximum: 200 m
- termination: Connector M12, 8-pole, A-coded
- length_of_sensor: 146 mm
- width_of_sensor: 87.5 mm
- height_of_sensor: 55 mm
- degree_of_protection: IP66, IP67, IP69
- ambient_temperature: +0 ... +60 °C
- storage_and_transport_temperature: -10 ... +90 °C
- relative_humidity_maximum: 93 %
- resistance_to_vibrations: 10 … 150 Hz, amplitude 0.35 mm
- restistance_to_shock: 30 g / 11 ms
- protection_class: III
- permissible_installation_altitude_above_sea_level_maximum: 3,000 m
- rated_insulation_voltage_ui: 32 VDC
- rated_impulse_withstand_voltage_uimp: 0.8 kV
- overvoltage_category: III
- degree_of_pollution: 3
- operating_voltage: 24 VDC -15 % / +10 %
- no_load_supply_current_i0_typical: 100 mA
- current_consumption_with_magnet_on_average: 200 mA
- current_consumption_with_magnet_on_peak: 350 mA / 200 ms
- rated_operating_voltage: 24 VDC
- operating_current: 800 mA
- required_rated_short_circuit_current: 100 A
- external_wire_and_device_fuse_rating: 2 A gG
- time_to_readiness_maximum: 5,000 ms
- switching_frequency_maximum: 0.5 Hz
- utilisation_category_dc_12: 24 VDC / 0.05 A
- electrical_fuse_rating_maximum: 2 A
- designation_magnet_control: IN
- switching_thresholds: -3 V … 5 V (Low), 15 V … 30 V (High)
- current_consumption_at_24v: 10 mA
- magnet_switch_on_time: 100 %
- test_pulse_duration_maximum: 5 ms
- test_pulse_interval_minimum: 40 ms
- designation_safety_inputs: X1 and X2
- switching_thresholds: -3 V … 5 V (Low), 15 V … 30 V (High)
- current_consumption_at_24v: 5 mA
- test_pulse_duration_maximum: 1 ms
- test_pulse_interval_minimum: 100 ms
- designation_safety_outputs: Y1 and Y2
- design_of_control_elements: short-circuit proof, p-type
- voltage_drop_ud_maximum: 2 V
- leakage_current_ir_maximum: 0.5 mA
- voltage_utilisation_category_dc_12: 24 VDC
- current_utilisation_category_dc_12: 0.25 A
- voltage_utilisation_category_dc_13: 24 VDC
- current_utilisation_category_dc_13: 0.25 A
- test_pulse_interval_typical: 1000 ms
- test_pulse_duration_maximum: 0.5 ms
- designation_diagnostic_outputs: OUT
- design_of_control_elements: short-circuit proof, p-type
- voltage_drop_ud_maximum: 2 V
- voltage_utilisation_category_dc_12: 24 VDC
- current_utilisation_category_dc_12: 0.05 A
- voltage_utilisation_category_dc_13: 24 VDC
- current_utilisation_category_dc_13: 0.05 A
- pin_assignment: PIN 1: A1 Supply voltage UB, PIN 2: X1 Safety input 1, PIN 3: A2 GND, PIN 4: Y1 Safety output 1, PIN 5: OUT Diagnostic output, PIN 6: X2 Safety input 2, PIN 7: Y2 Safety output 2, PIN 8: IN Solenoid control

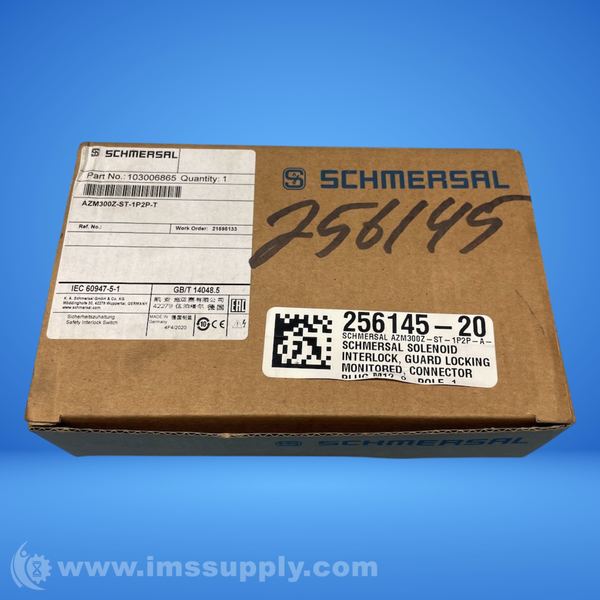

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
