SCHMERSAL AZ-16-12ZVK-M20 SAFETY SWITCH
Quick Overview
Manufactured By: SCHMERSAL
Manufacturer Part Number: AZ-16-12ZVK-M20
IMS Product Code: 1200885
Packaging: Sold Individually
Description:

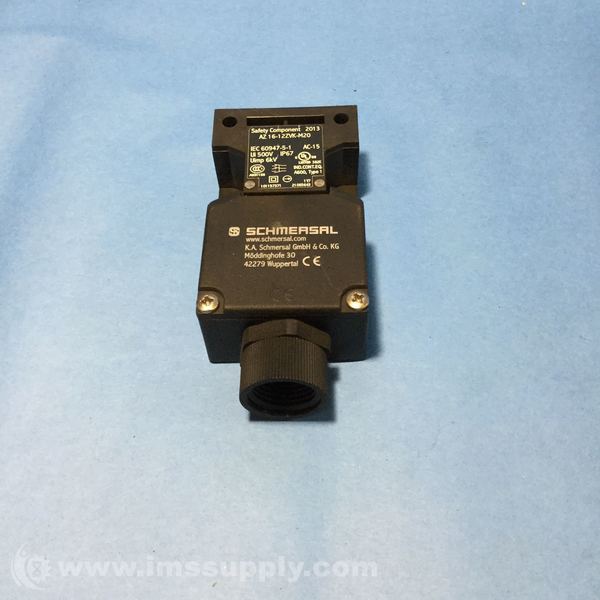

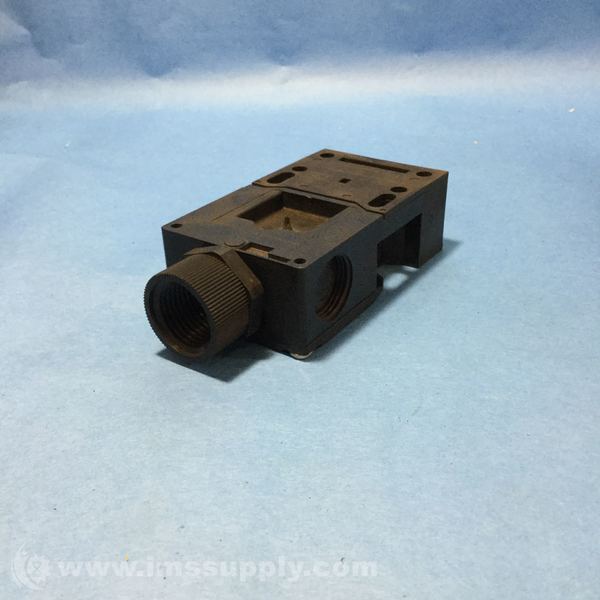

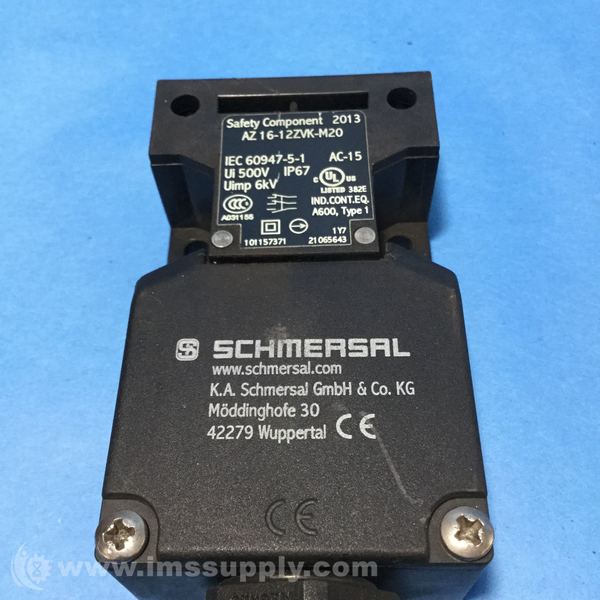

Schmersal AZ-16-12ZVK-M20 Safety Switch
Safety switch with separate actuator for sliding, hinged and removable safety guards
Specifications
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level According to EN ISO 14119: Low
- Working Principle: electromechanical
- Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Number of Actuating Directions: 3
- Number of Auxiliary Contacts: 1
- Number of Safety Contacts: 2
- Performance Level, up to: c
- Category: 1
- Mechanical Lifetime, minimum: 1,000,000 Operations
- Positive Break Travel: 8 mm
- Positive Break Force per NC Contact, minimum: 10 N
- Positive Break Force, minimum: 20 N
- Actuating Speed, maximum: 2 m/s
- Mounting: Screws
- Cable Entry: 3 x M20 x 1.5
- Termination: Screw terminals
- Cable Section, minimum: 0.25 mm²
- Cable Section, maximum: 2.5 mm²
- Degree of Protection: IP67
- Ambient Temperature: -30 ... +80 °C
- Storage and Transport Temperature: -40 ... +85 °C
- Rated Insulation Voltage Ui: 500 V
- Rated Impulse Withstand Voltage Uimp: 6 kV
- Overvoltage Category: III
- Degree of Pollution: 3
- Thermal Test Current: 10 A
- Required Rated Short-circuit Current: 1,000 A
- Switching Element: 1 NO contact, 2 NC contacts
- Switching Principle: slow action, positive break NC contact
- Voltage, Utilisation Category AC-15: 230 VAC
- Current, Utilisation Category AC-15: 4 A
- Voltage, Utilisation Category DC-13: 24 VDC
- Current, Utilisation Category DC-13: 4 A
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
