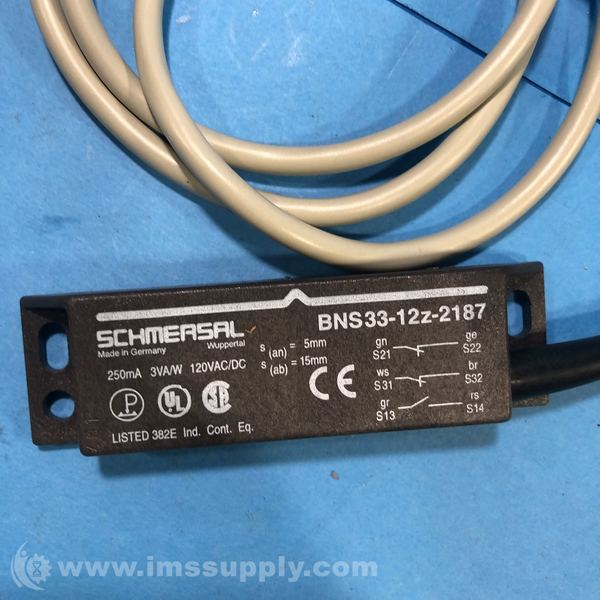

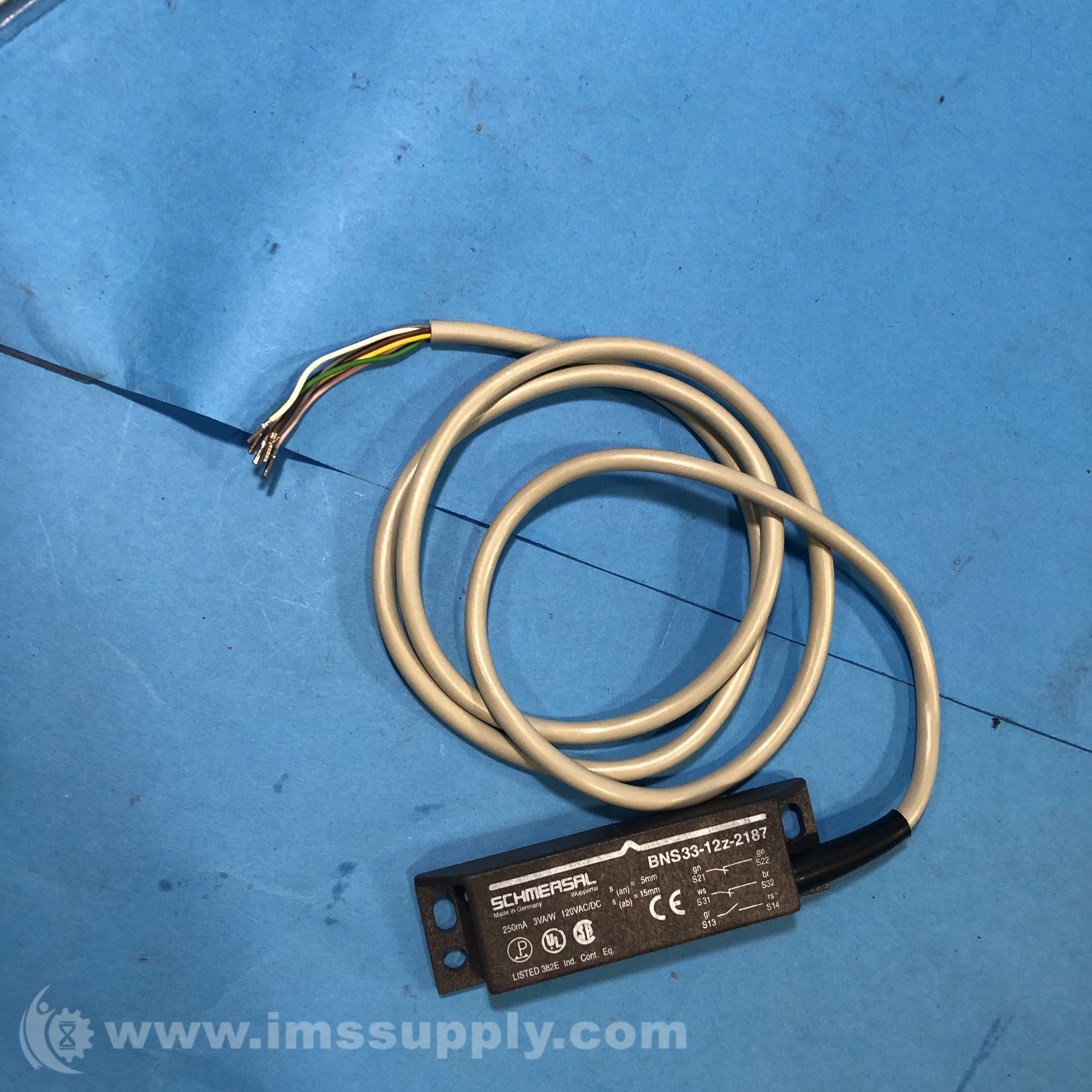

SCHMERSAL BNS33-12Z-2187 CODED SAFETY SENSOR
Quick Overview
Manufactured By: SCHMERSAL
Manufacturer Part Number: BNS33-12Z-2187
IMS Product Code: 1897618
Packaging: Sold Individually
Description:
Schmersal BNS33-12Z-2187 Coded Safety Sensor
Coded safety-sensor with magnetic operating principle
Specifications
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding level according to EN ISO 14119: Low
- Working principle: Magnetic drive
- Installation conditions (mechanical): not flush
- Housing material: Glass-fibre, reinforced thermoplastic
- Number of normally closed (NC): 2
- Number of normally open (NO): 1
- Mission time: 20 Year(s)
- B10D- Value Normally-closed contact/Normally open contact (NC/NO): 25,000,000 Operations
- Actuating element: Magnet
- Direction of motion: Head-on to the active surface
- Assured switching distance ON (Sao): 5 mm / 8 mm
- Assured switching distance OFF (Sar): 15 mm / 18 mm

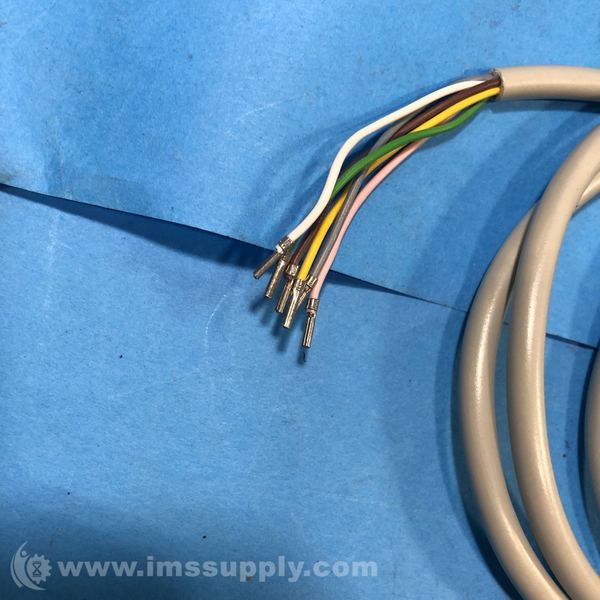

- Length of cable: 1 m
- Termination: cable
- Wire cross-section: 0.25 mm2 / 23 AWG
- Material of the Cable mantle: PVC
- Length of sensor: 13 mm
- Width of sensor: 88 mm
- Height of sensor: 25 mm
- Degree of protection: IP67
- Ambient temperature: -25 ... +70 degrees C
- Storage and transport temperature: -25 ... +70 degrees C
- Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
- Resistance to shock: 30 g / 11 ms
- Switching voltage, maximum: 100 VAC / 100 VDC
- Switching current, maximum: 0.25 A
- Switching capacity, maximum: 3 W
- Switching element: 1 NO contact, 2 NC contacts
- Switching principle: Reed contacts, Non-contact principle
- Switching frequency, maximum: 5 Hz
