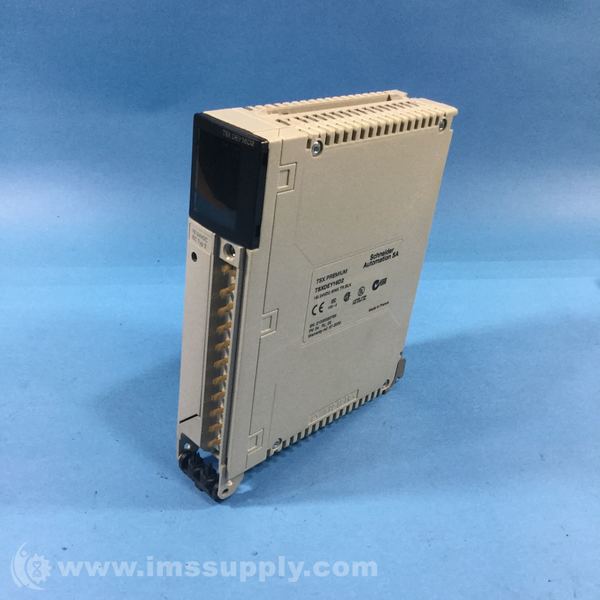

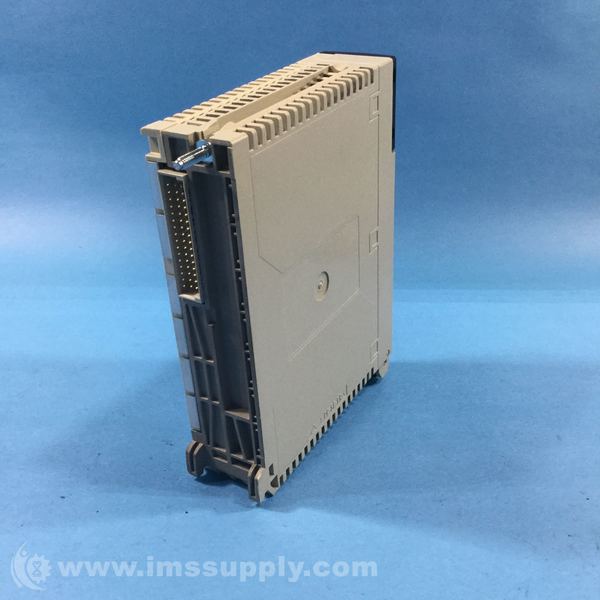

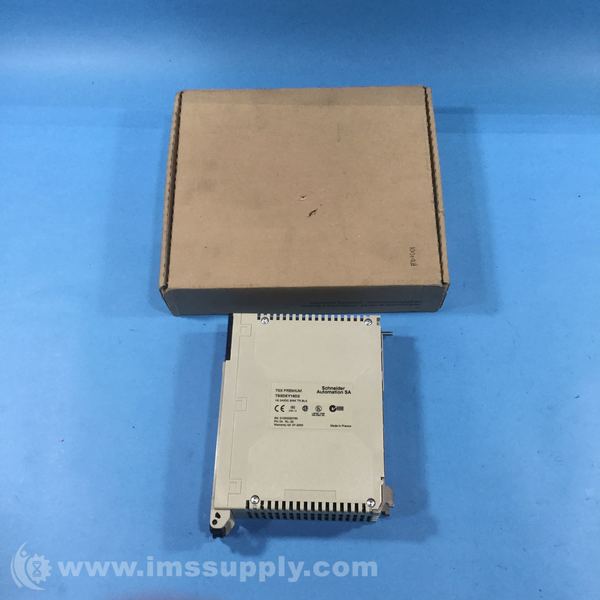

SCHNEIDER AUTOMATION TSXDEY16D2 DISCRETE INPUT MODULE
Quick Overview
Manufactured By: SCHNEIDER AUTOMATION INC
Manufacturer Part Number: TSXDEY16D2
IMS Product Code: 1844688
Packaging: Sold Individually
Description:
Schneider Automation TSXDEY16D2 Discrete Input Module
Discrete input module with 16 inputs, operating at 24V DC, supporting 2-wire and 3-wire proximity sensors.
Specifications
- Number of Inputs: 16
- Input Voltage: 24V DC
- Sensor Compatibility: 2-wire and 3-wire proximity sensors
- Type: I/O Module
- Series: Modicon Premium
- PLC Input Voltage: 24V dc
- Rated Current: 7 mA
- Terminal Type: Screw
- Temperature Rating: 0 to 60 degrees C
- Width: 7.2 inches
- Height: 2.2 inches
- Length: 10.2 inches
- Degree of Protection: IP20
- Input Impedance: 4000 Ohm at state 1
- Dielectric Strength: 1500 VAC at 50/60 Hz
- Current Consumption: 135 mA at 24 VDC/80 mA at 5 VDC
- Relative Humidity: 10 to 95% without condensation for operation/5 to 95% without condensation for storage
- Operating Altitude: 0 to 2000 m
- Insulation Resistance: less than 10 MOhm at 500 VDC
- Response Time: <=7 ms/4 ms
- Power Dissipation: (1 W + 0.15 W x number of channel used)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
