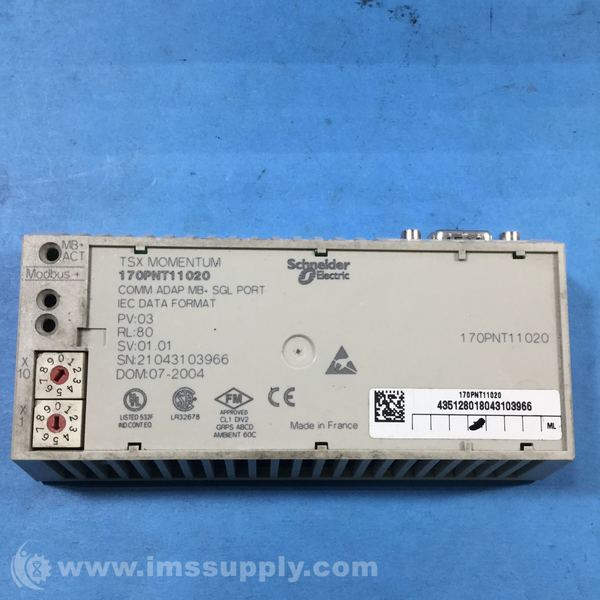

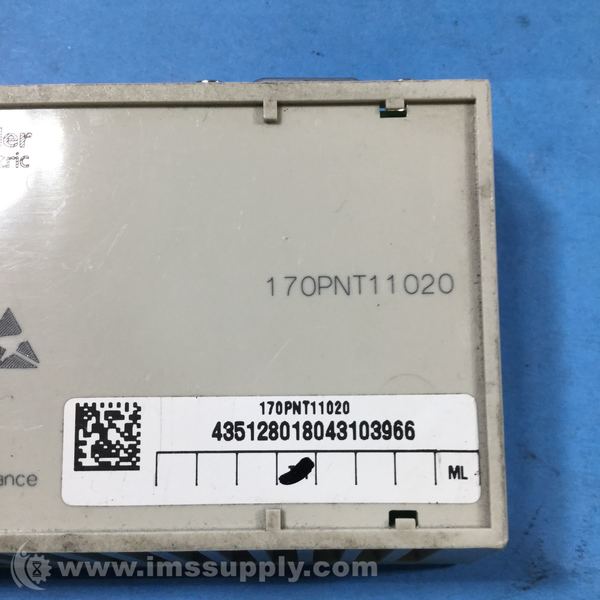

SCHNEIDER ELECTRIC 170PNT11020 MODBUS PLUS COMMUNICATION ADAPTER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: 170PNT11020
IMS Product Code: 1844402
Packaging: Sold Individually
Description:
Schneider Electric 170PNT11020 Modbus Plus Communication Adapter
The 170PNT11020 is a Modbus Plus communication adapter for Modicon Momentum I/O product line. It can be plugged into any Modicon Momentum I/O base to create a functional I/O unit on the Modbus Plus bus and provide a direct connection to the Modbus Plus network for the full family of Modicon Momentum I/O modules.
Specifications
- Protocol: Modbus Plus
- Baud Rate: 1 megabit per second
- Mounting: DIN Rail Mount
- Transmission Support Medium: Twisted pair
- Addressing: Switch selectable
- Topology: Multidrop ring
- Control Parameter: CRC-16
- Electrical Connection: 1 connector SUB-D 9
- Local Signalling: LED Green bus fault (BF)
- Protection Rating: IP20
- Operating Altitude: =5000m
- Cable Length: =1200m
- Data Format: IEC 61131-2
- Supply: From I/O base
- Product Certifications: CSA, UL
- Standards: FM Class 1 Division 2
- Ambient Air Temperature for Operation: 0…60 °C
- Ambient Air Temperature for Storage: -40…85 °C
- Relative Humidity: 95 % without condensation
