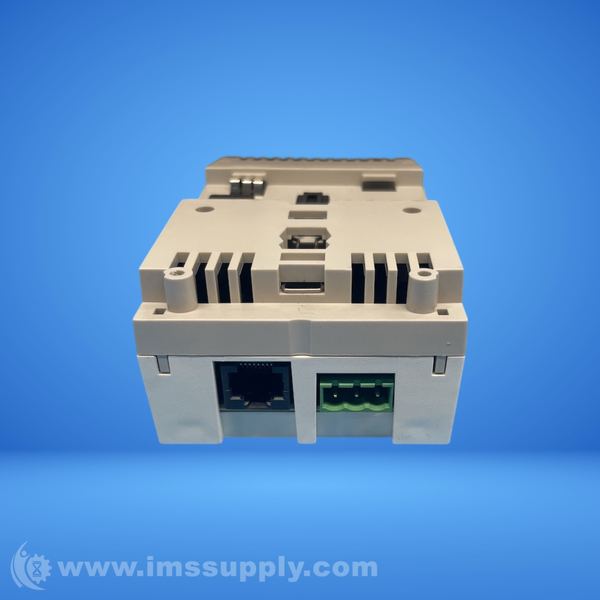

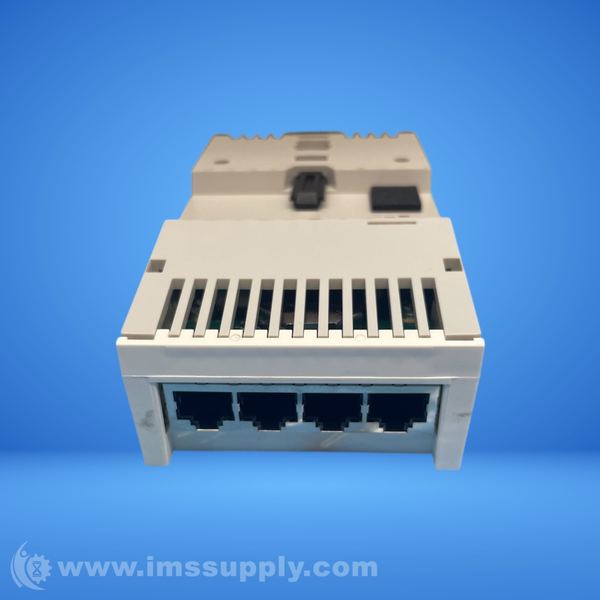

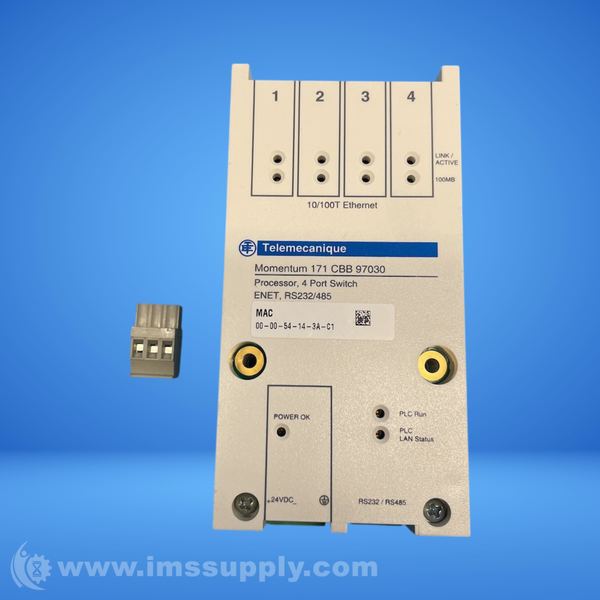

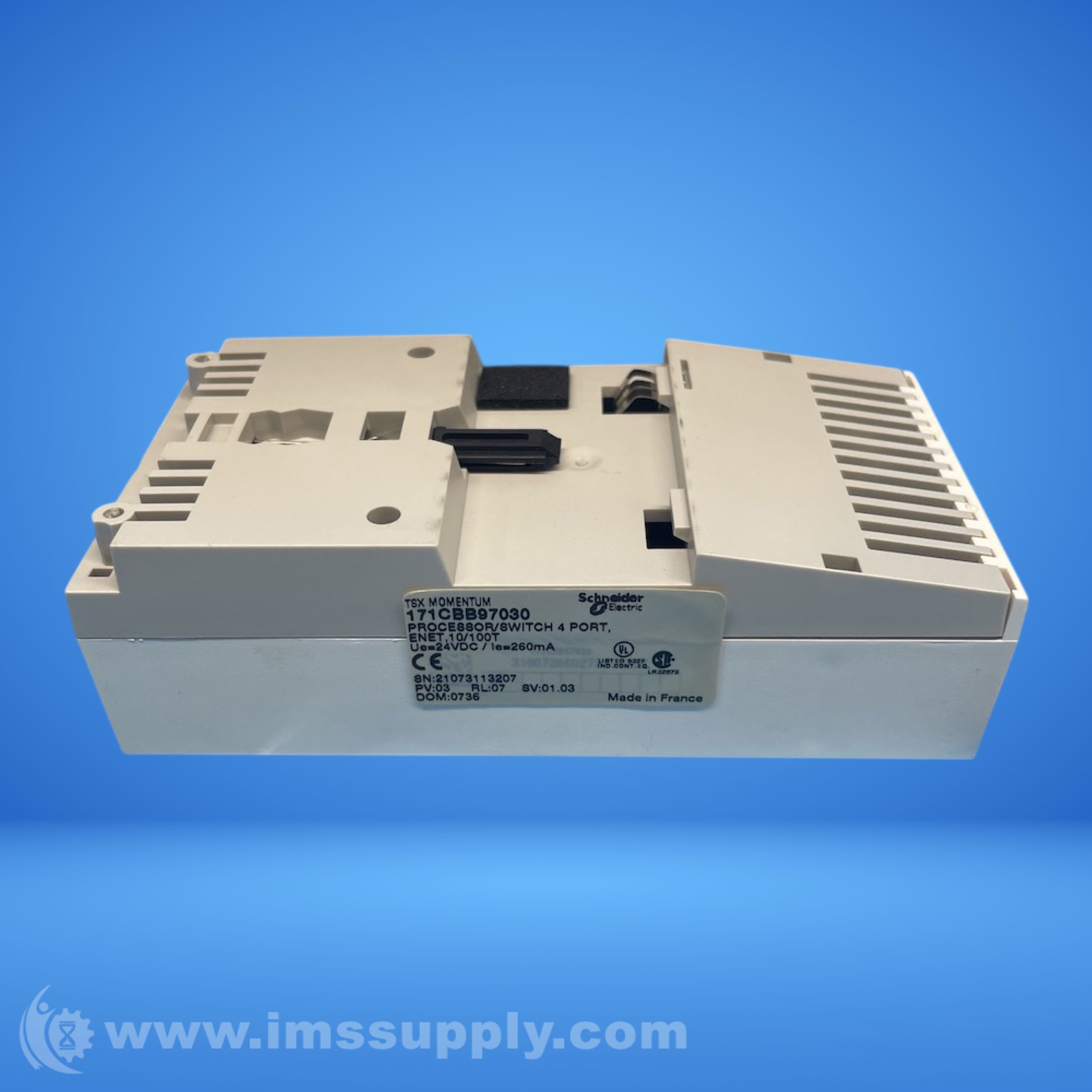

SCHNEIDER ELECTRIC 171CBB97030 PROCESSOR SWITCH
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: 171CBB97030
IMS Product Code: 2145475
Packaging: Sold Individually
Description:
Schneider Electric 171CBB97030 Processor Switch
Processor/Switch 4 Port ENET 10/100T
Specifications
- Manufacturer: Schneider Electric
- Part Number: 171CBB97030
- Product or Component Type: Processor
- Product Compatibility: Advantys STB I/O
- Concept: Transparent Ready
- Processor Name: Base 186
- Communication Port Protocol: Modbus RS485/RS232 1 RJ45 19200 bps 2 or 4 wires Modbus TCP/IP Ethernet 4 RJ45 10/100 Mbps twisted shielded pairs cable CAT 5E
- Material: Lexan
- Supply Voltage Limits: 19.2…42.5 V
- Clock Frequency: 50 MHz
- Topology: Multidrop Modbus Star
- Method of Access: Master/slave
- Memory Description: Program memory IEC 200 kB Program memory LL984 18 kB
- Register Words: 26032
- I/O Limit Processor Capacity: 8192 inputs/8192 outputs
- Number of Devices: 64 Ethernet
- Exact Time for 1 K Instruction: 0.25 ms
- Local Signalling: 1 LED for PLC LAN ST 1 LED for PLC RUN 4 LEDs for Ethernet port activity 4 LEDs for port communication at 100 Mbps
- Current Consumption: 100 mA at 24 V DC
- Module Format: Standard
- Product Mounting: 35 mm symmetrical DIN rail
- Height: 75.2 mm
- Width: 143 mm
- Depth: 43 mm
- Net Weight: 0.19 kg
- Environment Dielectric Strength: 0 V not isolated RS232 500 V for 1 minute Ethernet
- Product Certifications: CSA UL
- IP Degree of Protection: IP20 conforming to IEC 529 group A,B,C,D
- Shock Resistance: +/- 15 gn 11 ms semi sinusoidal wave
- Vibration Resistance: 1 gn, amplitude: 0.075 mm (f = 10…57 Hz) 1 gn (f = 57…150 Hz)
- Resistance to Electrostatic Discharge: 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
- Resistance to Electromagnetic Fields: 10 V/m 80…1000 MHz conforming to IEC 801-3
- Ambient Air Temperature for Operation: -20…70 °C
- Ambient Air Temperature for Storage: -40…70 °C
- Relative Humidity: 5…95 % without condensation
- Operating Altitude: <= 2000 m

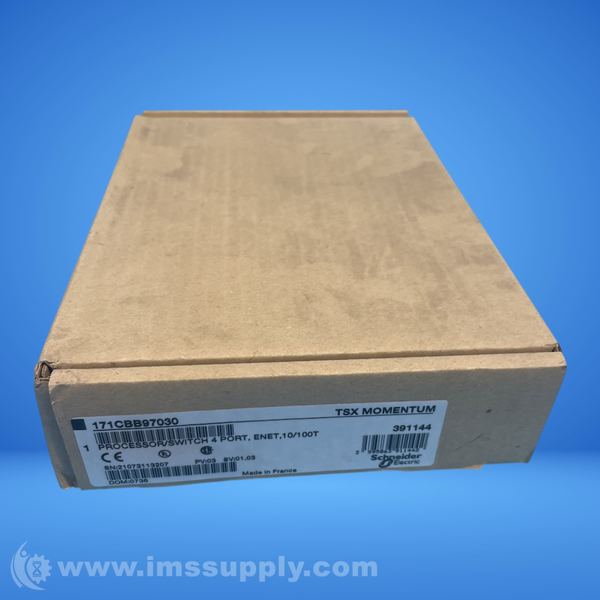

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
