SCHNEIDER ELECTRIC 171CCC98020 M1/M1E PROCESSOR ADAPTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: 171CCC98020
IMS Product Code: 2145473
Packaging: Sold Individually
Description:

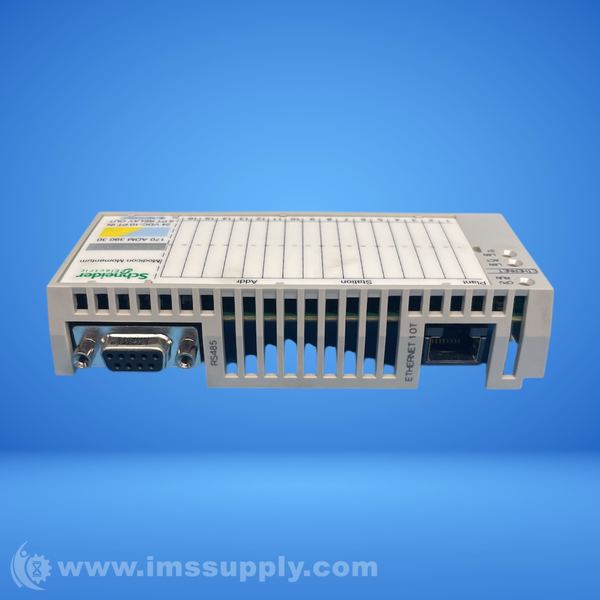

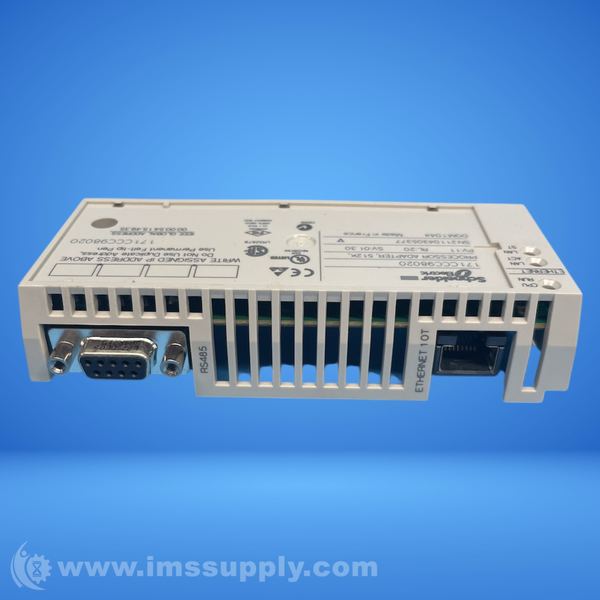

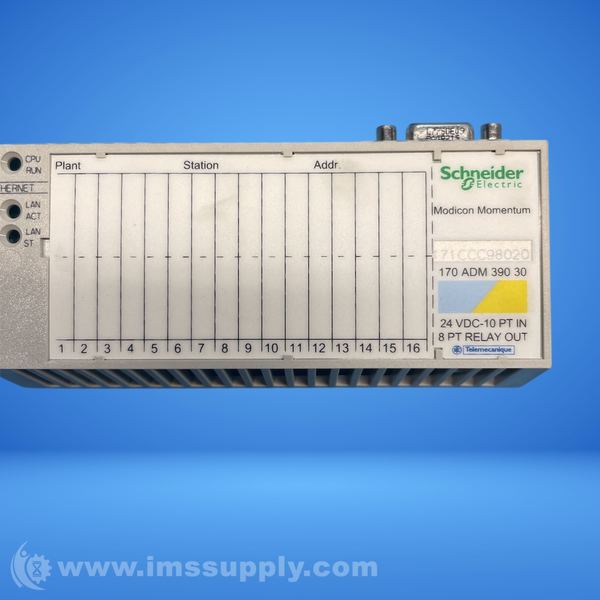

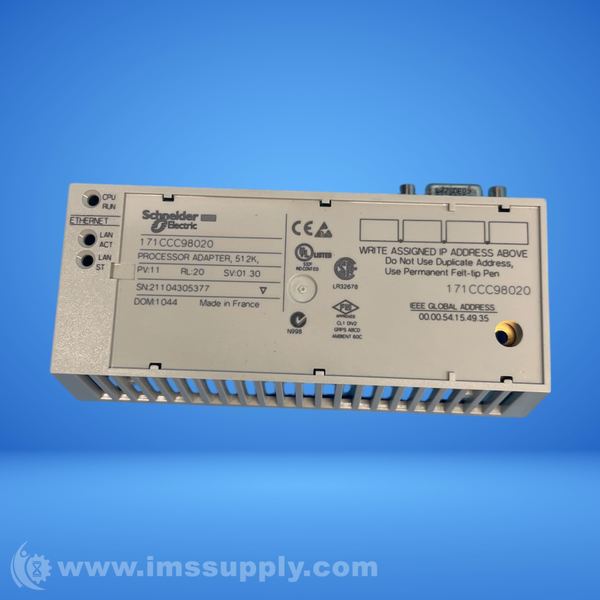

Schneider Electric 171CCC98020 M1/M1E Processor Adaptor
M1/M1E processor adaptor supporting Ethernet and Modbus communication protocols with 512 kB flash memory and 544 kB RAM.
Specifications
- Main range of product: Modicon Momentum automation platform
- Product or component type: M1/M1E processor adaptor
- Concept: Transparent Ready
- Level or class: Class B10
- Software designation: Concept version V2.6 Modsoft version >= V2.5 ProWORX NxT version V2.0 ProWORX 32
- Communication port protocol: Ethernet Modbus
- Processor name: X 86 based (INTEL, AMD)
- Clock frequency: 50 MHz
- Memory type: 512 kB flash 544 kB RAM
- Memory description: Program memory 18 kB LL984 Data 24 kB
- Material: Lexan
- Word length: 16 bit [Us] rated supply voltage: 5.0 V DC +/-5 %
- Supply: By Momentum I/O base
- Exact time for 1 Kinstruction: 1 ms
- Number of port: 1 RS485 1 Ethernet
- Marking: CE
- Net weight: 0.042 kg
- Ambient air temperature for operation: 0…60 degrees C
- Ambient air temperature for storage: -40…85 degrees C
- Relative humidity: 5…96 % without condensation
- Operating altitude: 2000 m
- Shock resistance: <= 15 gn peak 11 ms half sine wave acceleration
- Vibration resistance: 1 gn 0.75 mm d.a
- Product certifications: Nema type 250 UL CUL FM Class 1 Division 2
