SCHNEIDER ELECTRIC ATV31C075N4 VARIABLE SPEED DRIVE
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: ATV31C075N4
IMS Product Code: 2145501
Packaging: Sold Individually
Description:

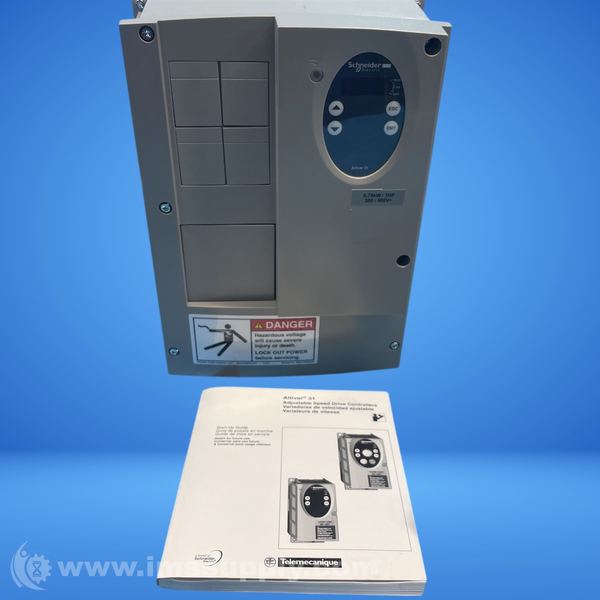

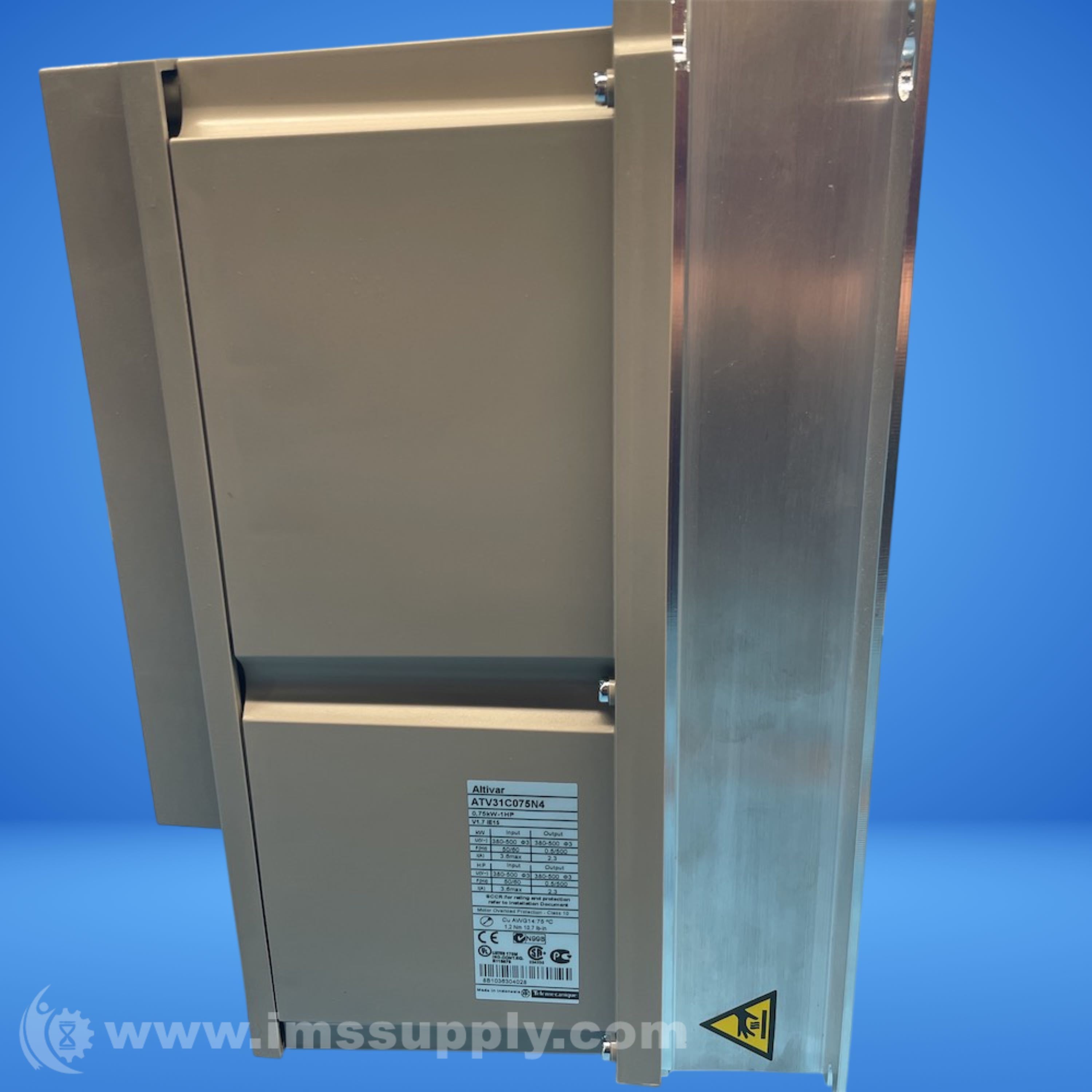

Schneider Electric ATV31C075N4 Variable Speed Drive
Enclosed variable speed drive for asynchronous motors, 0.75 kW, 380...500 V, IP55
Specifications
- range of product: Altivar 31
- product or component type: Variable speed drive
- product destination: Asynchronous motors
- product specific application: Simple machine
- assembly style: Enclosed
- component name: ATV31
- emc filter: Integrated
- power supply voltage: 380...500 V
- power supply frequency: 50...60 Hz
- network number of phases: 3 phases
- motor power kw: 0.75 kW
- motor power hp: 1 hp
- line current: 3.6 A at 380 V, 2.7 A at 500 V
- apparent power: 2.4 kVA
- maximum prospective line isc: 5 kA
- maximum transient current: 3.5 A for 60 s
- power dissipation in w: 41 W at nominal load
- speed range: 1...50
- transient overtorque: 150...170% of nominal motor torque
- asynchronous motor control profile: Sensorless flux vector control with PWM type motor control signal
- ip degree of protection: IP55
- nominal output current: 2.3 A at 4 kHz
- power supply voltage limit: 323...550 V
- power supply frequency limits: 47.5...63 Hz
- speed drive output frequency: 0.5...500 Hz
- nominal switching frequency: 4 kHz
- switching frequency: 2...16 kHz adjustable
- braking torque: 100% with braking resistor continuously, 150% with braking resistor for 60 s
- regulation loop: Frequency PI regulator
- motor slip compensation: Adjustable, automatic, suppressable
- output voltage: <= power supply voltage
- electrical connection: Terminal 2.5 mm˛ / AWG 14
- tightening torque: 0.6 N.m for control terminals, 0.8 N.m for power terminals
- insulation: Electrical between power and control
- analogue input number: 3
- analogue input type: Configurable voltage/current
- discrete input number: 6
- discrete input type: Programmable 24 V
- discrete output number: 2
- discrete output type: Configurable relay logic
- analogue output number: 2
- analogue output type: Configurable voltage/current
- communication port protocol: CANopen, Modbus
- product weight: 8.8 kg
- dielectric strength: 2410 V DC between earth and power terminals, 3400 V AC between control and power terminals
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
