SCHNEIDER ELECTRIC GVAN11 AUXILIARY CONTACT BLOCK
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: GVAN11
IMS Product Code: 2129442
Packaging: Sold Individually
Description:

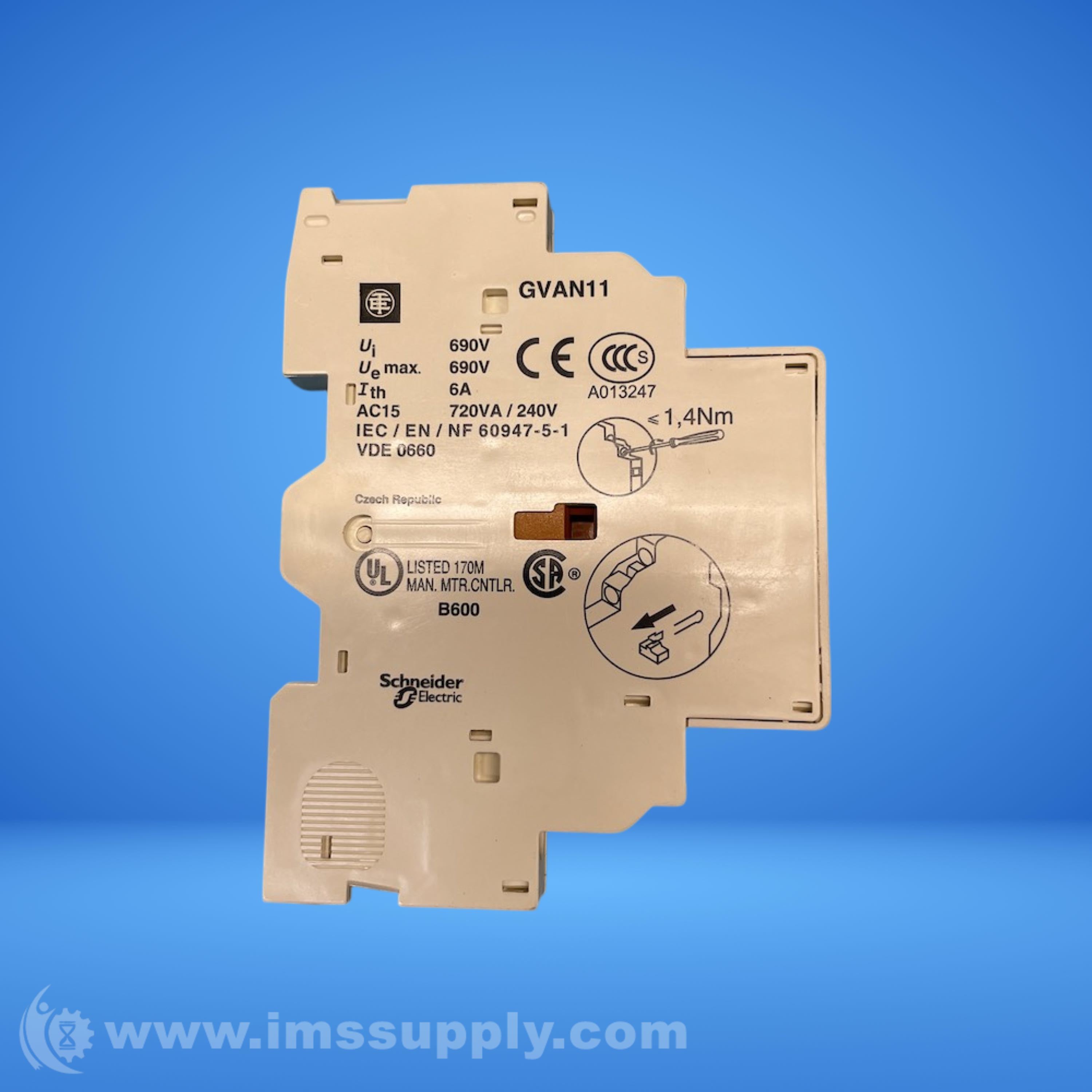

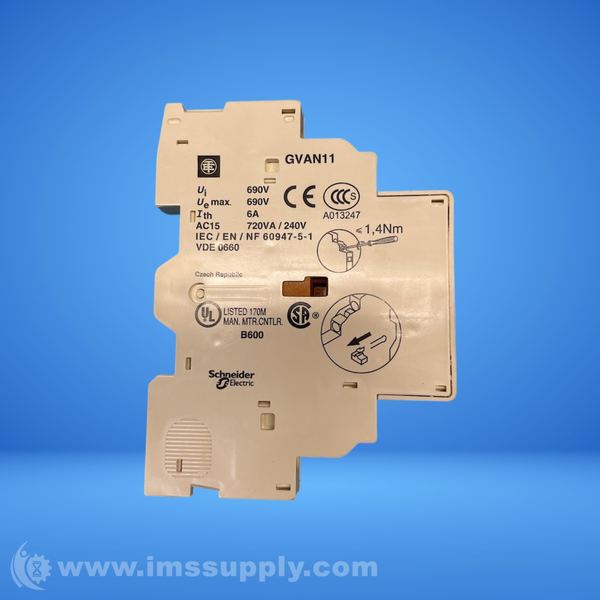

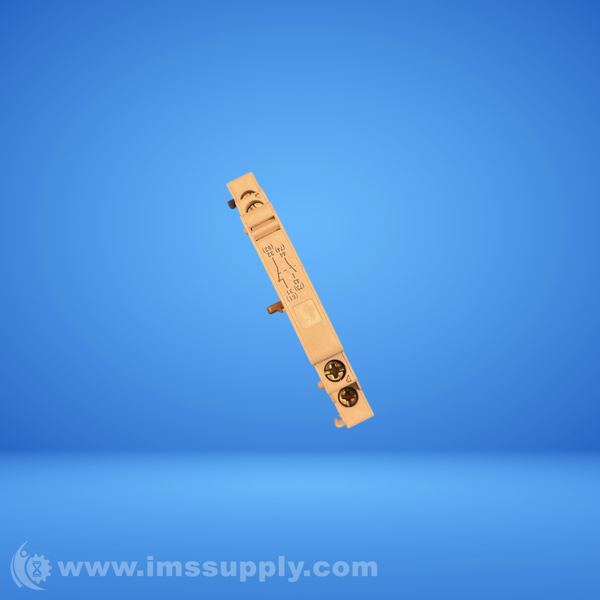

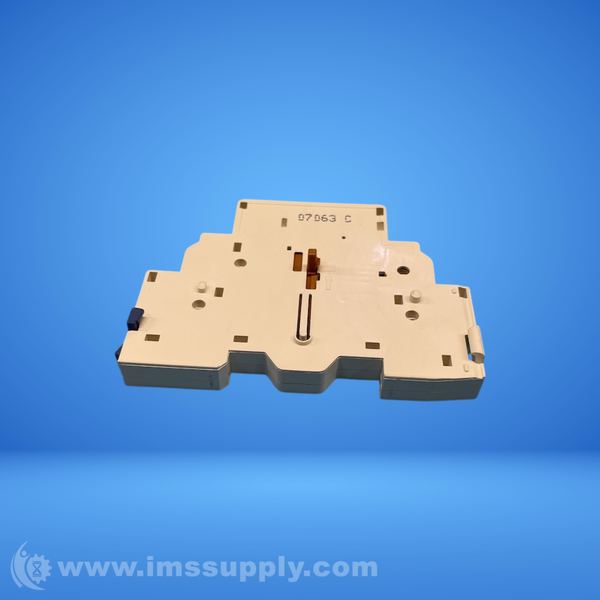

Schneider Electric GVAN11 Auxiliary Contact Block
Auxiliary contact block with 1 NO and 1 NC contacts, side mount, screw clamp terminals, used with GV2/GV3P manual starters.
Specifications
- product or component type: Auxiliary contact block
- product compatibility: GV2ME GV2RT GV2L GV3P GV3L GV2LE GV2P
- mounting location: Left side
- pole contact composition: 1 NO + 1 NC
- connections - terminals: Screw clamp terminals
- rated insulation voltage: 690 V
- rated operational voltage: 48...690 V AC, 24...240 V DC
- conventional free air thermal current: 6 A
- minimum switching current: 5 mA
- minimum switching voltage: 17 V
- rated operational power in VA: 300...850 VA
- rated operational power in W: 120...240 W
- mechanical durability: 100000 cycles
- protection type: GB2CB... circuit breaker, gG fuse 10 A
- height: 89 mm
- width: 9.3 mm
- depth: 66 mm
- net weight: 0.05 kg
- color: Dark Gray
- terminal connection: Screw Clamp
- contact configuration: 1NO, 1NC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
