SCHNEIDER ELECTRIC LADN20 AUXILIARY CONTACT BLOCK
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LADN20
IMS Product Code: 2012936
Packaging: Sold Individually
Description:

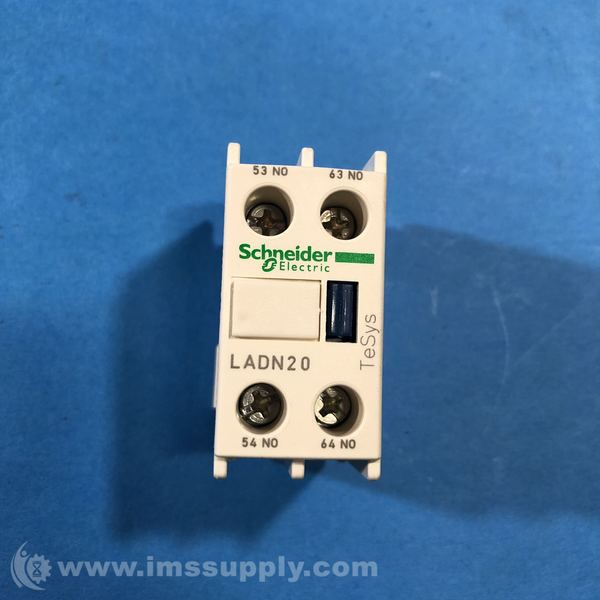

Schneider Electric LADN20 Auxiliary Contact Block
Two pole auxiliary contact block with 2 normally open contacts, front mounted on LC1D contactors, screw terminals.
Specifications
- Number of Poles: 2
- Contact Arrangement: 2 normally open
- Mounting: Front Mount
- Terminals: Screw
- Series: TeSys D
- Mounting Type: Snap
- Use With: LC1D IEC Contactors
- Contact Operation: 2NO
- Rated Operational Voltage (Ue): Up to 600v
- Rated Insulation Voltage (Ui): Conforming to IEC 60947-1 = 690V, Conforming to UL, CSA = 600V
- Short-circuit Protection: Conforming to IEC 60947-5-1 = gG fuse: 10 A
- Rated Making Capacity: ac: 140A; dc: 250A
- Current AC: 10 A
- Maximum Voltage Rating: 690V AC
- IP Rating: IP20
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
