SCHNEIDER ELECTRIC LC1D09FE7 CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1D09FE7
IMS Product Code: 2012411
Packaging: Sold Individually
Description:

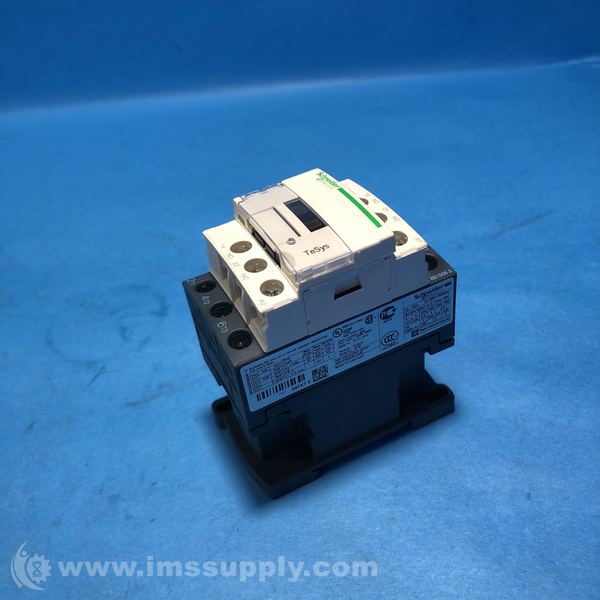

Schneider Electric LC1D09FE7 Contactor
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
- Product Range: TeSys Deca Series
- Load Current Inductive: 9A
- Operating Voltage: 690V
- No. of Poles: 3
- Contact Configuration: 3PST-NO
- Switching Current AC1: 25A
- Coil Voltage VAC Nom: 115V
- Switching Power AC3: 7.5hp
- Rated Operational Current: 9A at 440V AC-3/AC-3e
- Rated Operational Power: 4kW at 440V AC-3/AC-3e
- Control Circuit Voltage: 115V AC 50/60Hz
- IP Rating: IP20 front face IEC 60529
- Height: 77 mm
- Width: 45 mm
- Depth: 86 mm

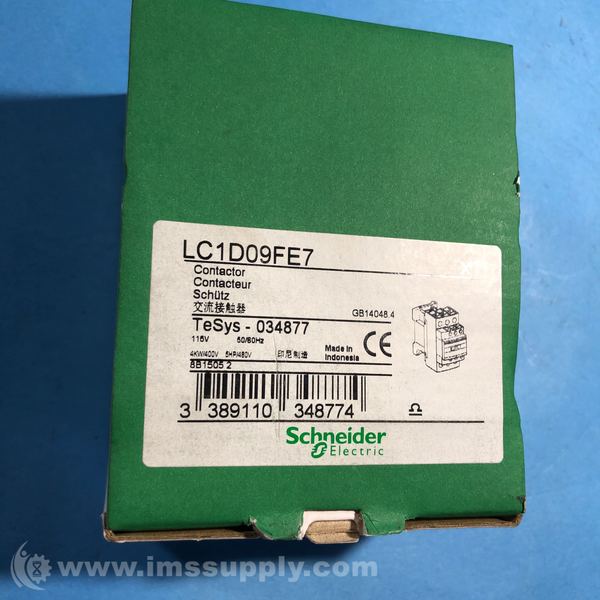

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
