SCHNEIDER ELECTRIC LC1D32G7 3-POLE CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1D32G7
IMS Product Code: 2037572
Packaging: Sold Individually
Description:

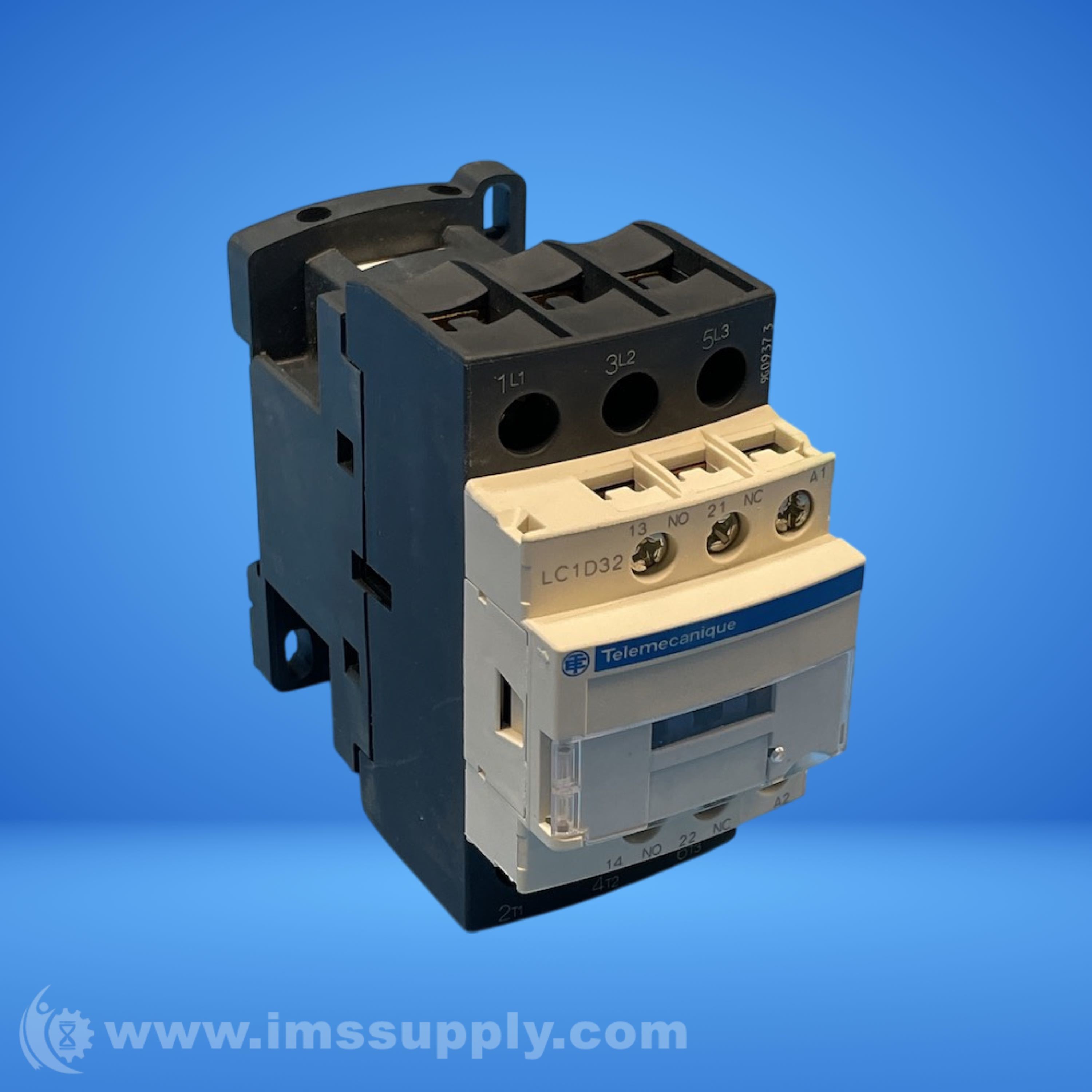

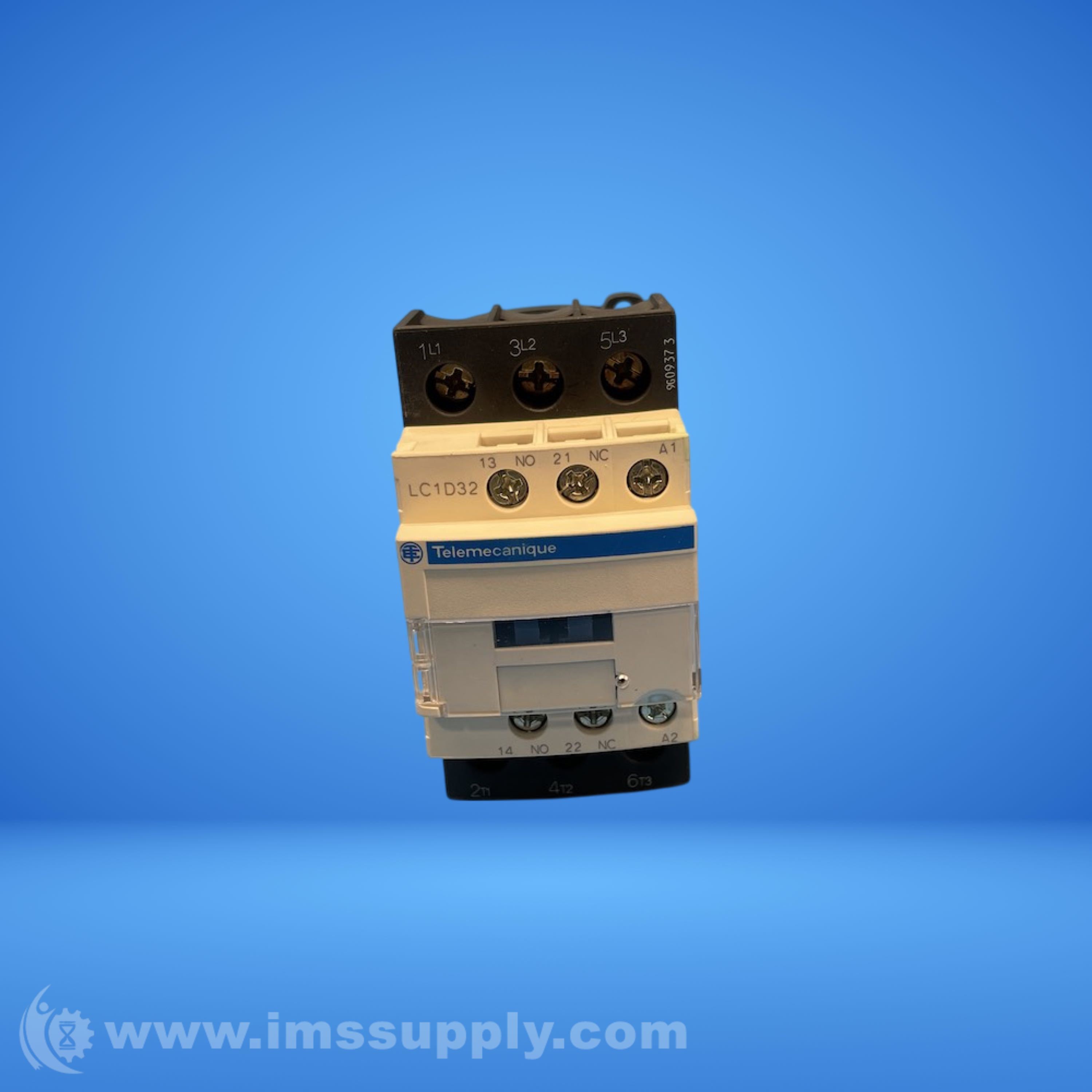

Schneider Electric LC1D32G7 3-Pole Contactor
Schneider Electric LC1D32G7 3-pole contactor rated at 32 AMPS AC-3 (50 AMPS AC-1) with a 120V 50/60Hz AC coil. This IEC contactor comes with 1 normally open and 1 normally closed base mounted auxiliary contacts, screw terminals and mounts on standard 35MM DIN rail.
Specifications
- AMP Rating: 32 AMP AC-3, 50 AMP AC-1
- Coil Voltage: 120 volt AC
- Horsepower: 10 H.P. @ 230 volt, 20 H.P. @ 460 volt
- Auxiliaries: 1 normally open (NO) & 1 normally closed (NC)
- Terminals: Screw
- Series: LC1
- Amperage: 32A
- Voltage: 120V
- Poles: 3
- Mounting Type: Din Rail
- Contactor Type: IEC
- Reversing Capability: Non-Reversing
- Main Power Pole Contact Form: 3NO
- Frequency: 50/60 Hz
- Maximum Voltage Rating: 690V AC
- Wire Termination Type: Screw Clamp
- Integrated Surge Suppression: No
- IP Rating: IP20
- NEMA Enclosure Rating: No Enclosure
- Overall Height: 3.35 in
- Overall Width: 1.77 in
- Overall Depth: 3.62 in
- Mechanical Operating Durability: 15,000,000
- Electrical Operating Durability: 1,400,000; 1,650,000
- Minimum Operating Temperature: -40 F
- Maximum Operating Temperature: 140 F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
