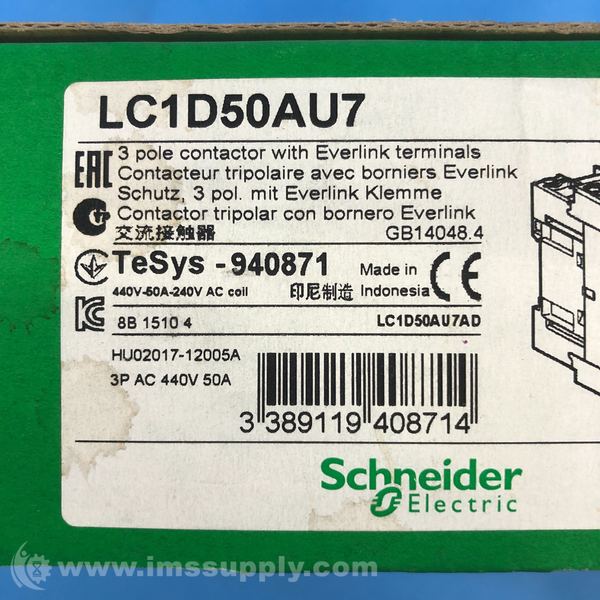

SCHNEIDER ELECTRIC LC1D50AU7 3-POLE CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1D50AU7
IMS Product Code: 1940549
Packaging: Sold Individually
Description:
Schneider Electric LC1D50AU7 3-Pole Contactor
3-pole contactor with 240V 50/60Hz AC coil, 50A rated operational current
Specifications
- Maximum Horsepower Single Phase: 3
- Maximum Horsepower Three Phase 230v HP: 15
- Maximum Horsepower Three Phase 460v HP: 40
- Maximum Current Inductive AC-3 (A): 50
- Maximum Current Resistive AC-1 (A): 80
- # OF POLES: 3
- Auxiliary Contacts N.O.: 1
- Auxiliary Contacts N.C.: 1
- Rated insulation voltage (Vi): 690v UL/CSA
- Rated impulse withstand voltage (Vimp): 8kV
- Conforming to standards: IEC 60947-1, 60947-4-1, VDE 0660, EN 60947-1, EN 60947-4-1
- Degree of protection: Protection against direct finger contact IP 2X
- Ambient air temperature around the device: - 5 to + 55 degrees C (+23 to +131 degrees F)
- Rated operational voltage (Ve): 1000V
- Control voltage limits: 0.85 to 1.1 Vac at 60 Hz
- Average consumption at 20 degrees C (68 degrees F) and at Vc: 220VA
- Mechanical durability of operating cycles: 16,000,000
- Mechanical life at Uc: 30,000,000
- coil_control_voltage: 110 V AC
- rated_operational_current: 50 A
- number_of_poles: 3
- contactor_application: Motor Control
- auxiliary_contacts: 1 NO + 1 NC
- connection_type: Screw Clamp
- mounting_method: DIN Rail or Plate Mounting
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 45 minutes.

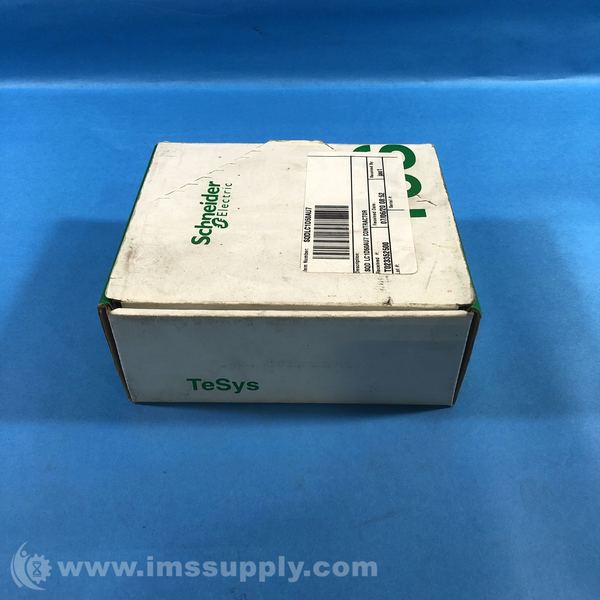

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 45 minutes.
