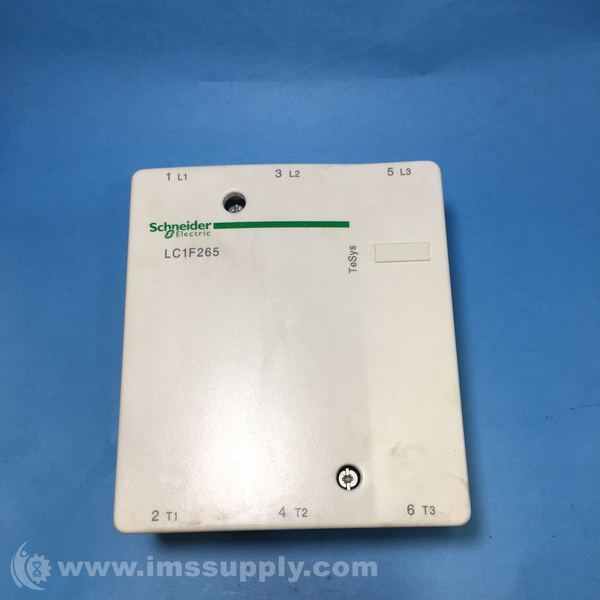

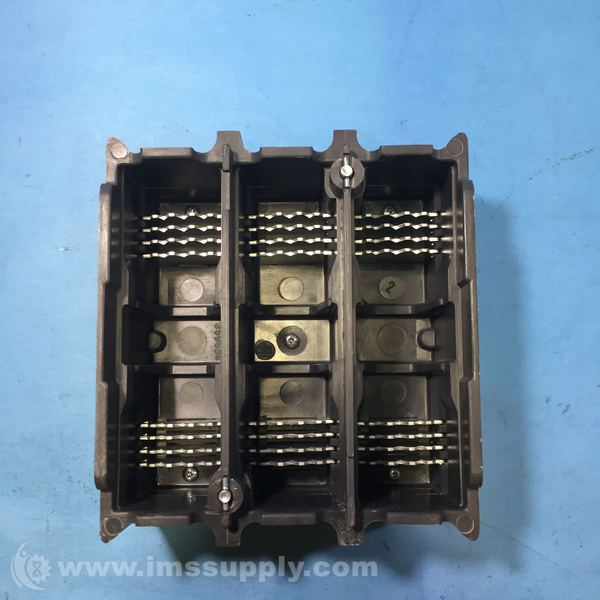

SCHNEIDER ELECTRIC LC1F265 CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC1F265
IMS Product Code: 1866751
Packaging: Sold Individually
Description:
Schneider Electric LC1F265 Contactor
TeSys F contactor with 3 poles (3 NO), rated operational voltage up to 690 V AC 50/60 Hz, and rated operational current of 265 A at <= 440 V AC AC-1.
Specifications
- TeSys F contactor: 3P(3NO)
- [Ue] rated operational voltage: 690 V AC 50/60 Hz
- [Ie] rated operational current: 265 A (at < 60 °C) at <= 440 V AC AC-1
- [Uc] control circuit voltage: 120 V AC 60 Hz
- mounting support: Plate
- mounting mode: Clamp
- connections - terminals: Power circuit: bar
- coil technology: without built-in suppressor module
- control circuit voltage limits: 0.85...1.1 Uc (-40...158 °F (-40...70 °C))
- average impedance: 0.29 mOhm
- power dissipation per pole: 28.8 W AC-1
- [Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1
- overvoltage category: III
- [Ith] conventional free air thermal current: 300 A (at < 60 °C)
- Irms rated making capacity: 2650 A at 440 V AC conforming to IEC 60947-4-1
- rated breaking capacity: 2292 A at 440 V conforming to IEC 60947-4-1
- [Icw] rated short-time withstand current: 2200 A < 40 °C >= 10 s
- associated fuse rating: 250 A aM at <= 440 V
- mechanical durability: 10 Mcycles
- electrical durability: 1.2 Mcycles 265 A AC-1 <= 440 V
- operating time: 40...65 ms closing
- 60...100 ms opening
- insulation resistance: > 10 MOhm
- protection category: IP20 front face conforming to IEC 60529
- standards: JEM 1038, EN 60947-4-1, CCC, UL
- Series: LC1F
- Number of Phases: 3
- Number of Poles: 3-Pole
- Current Rating: 265A
- Length: 8.4"
- Width: 7.9"
- Height: 8.0"
- Weight: 18.83 lbs
