SCHNEIDER ELECTRIC LC2D09BD REVERSING CONTACTOR
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LC2D09BD
IMS Product Code: 2151108
Packaging: Sold Individually
Description:

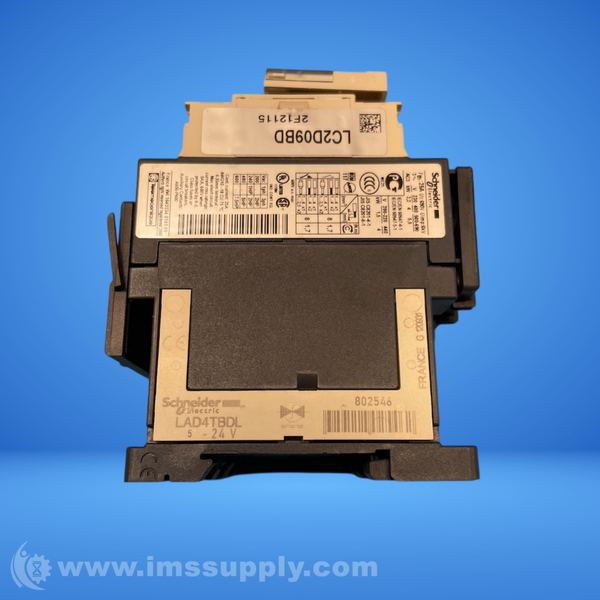

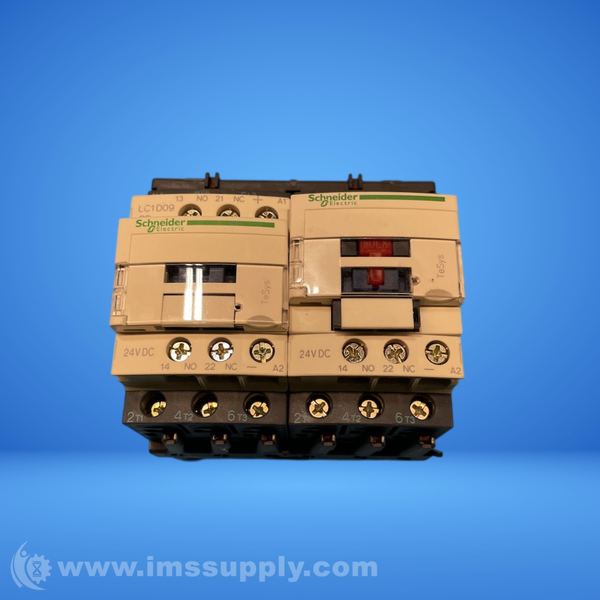

Schneider Electric LC2D09BD Reversing Contactor
3-pole reversing contactor with 9A current rating, 24V DC coil voltage, and screw clamp terminals. Suitable for motor control systems.
Specifications
- Series: TeSys Deca
- Reversing Capability: Reversing
- Number of Poles: 3
- Main Power Pole Contact Form: 3NO
- Coil Voltage: 24V DC
- Maximum Voltage Rating: 690V AC
- Full Load Current - Inductive: 9 A
- Full Load Current - Resistive: 20 A
- Wire Termination Type: Screw Clamp
- Integrated Surge Suppression: Yes
- IP Rating: IP20
- Overall Height: 3.03 in
- Overall Width: 3.54 in
- Overall Depth: 3.74 in
- Minimum Operating Temperature: -40 F
- Maximum Operating Temperature: 140 F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 36 minutes.
