SCHNEIDER ELECTRIC LRD-12 THERMAL OVERLOAD RELAY
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: LRD-12
IMS Product Code: 2121525
Packaging: Sold Individually
Description:

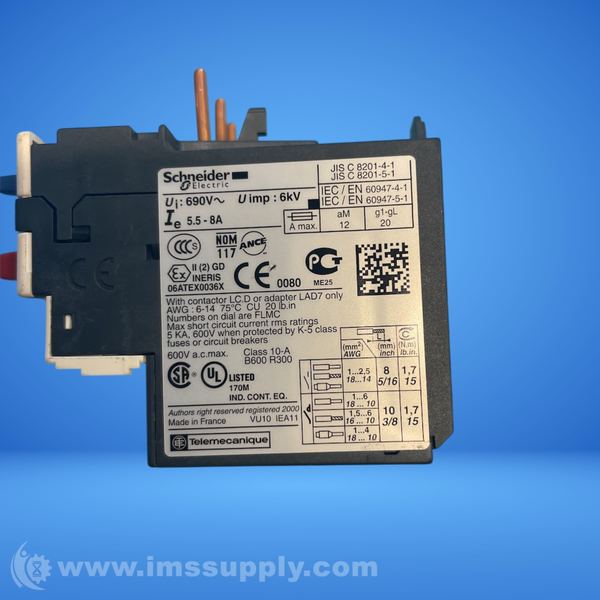

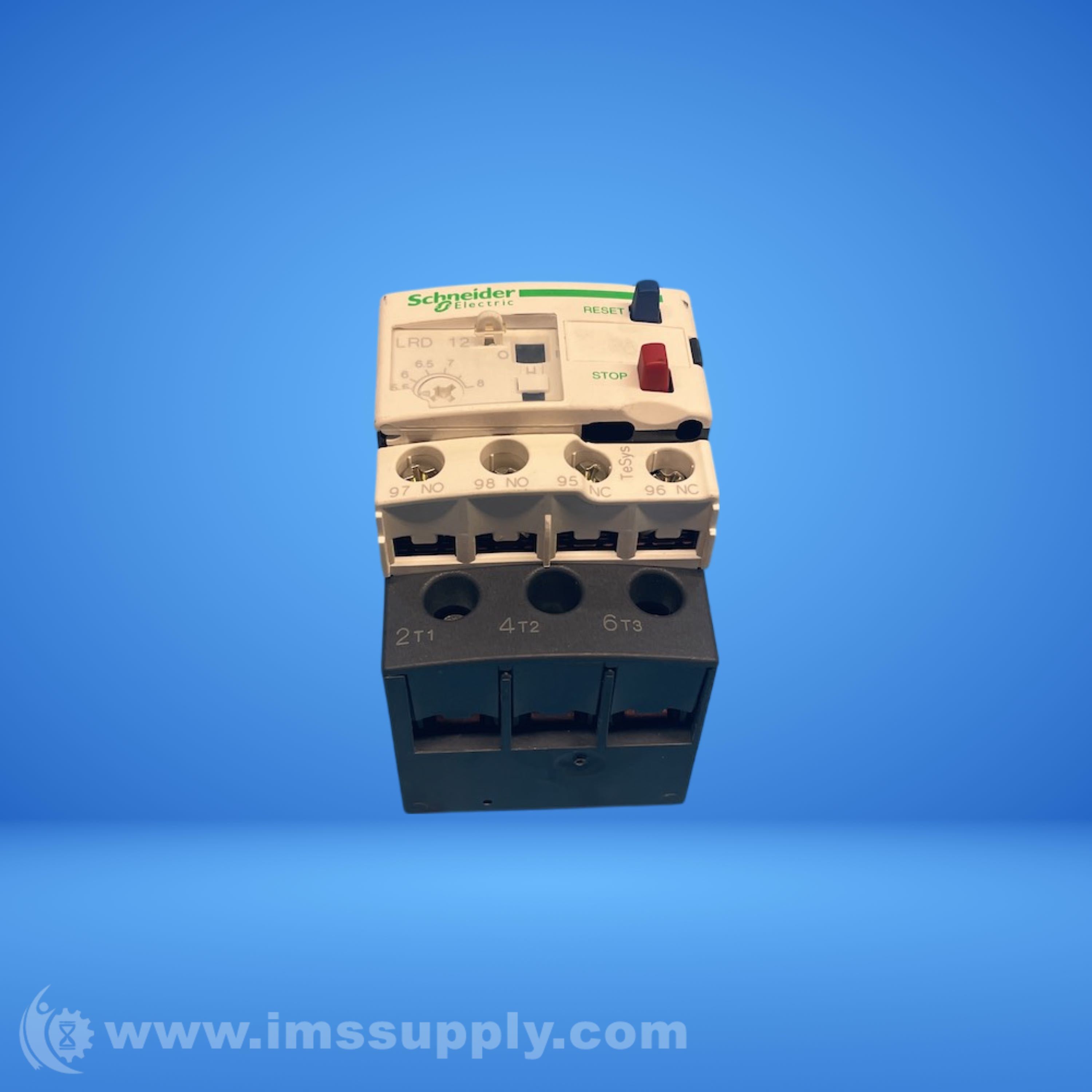

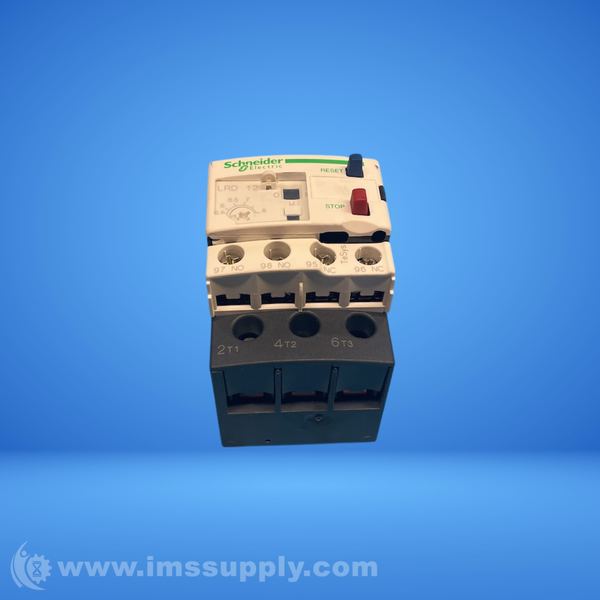

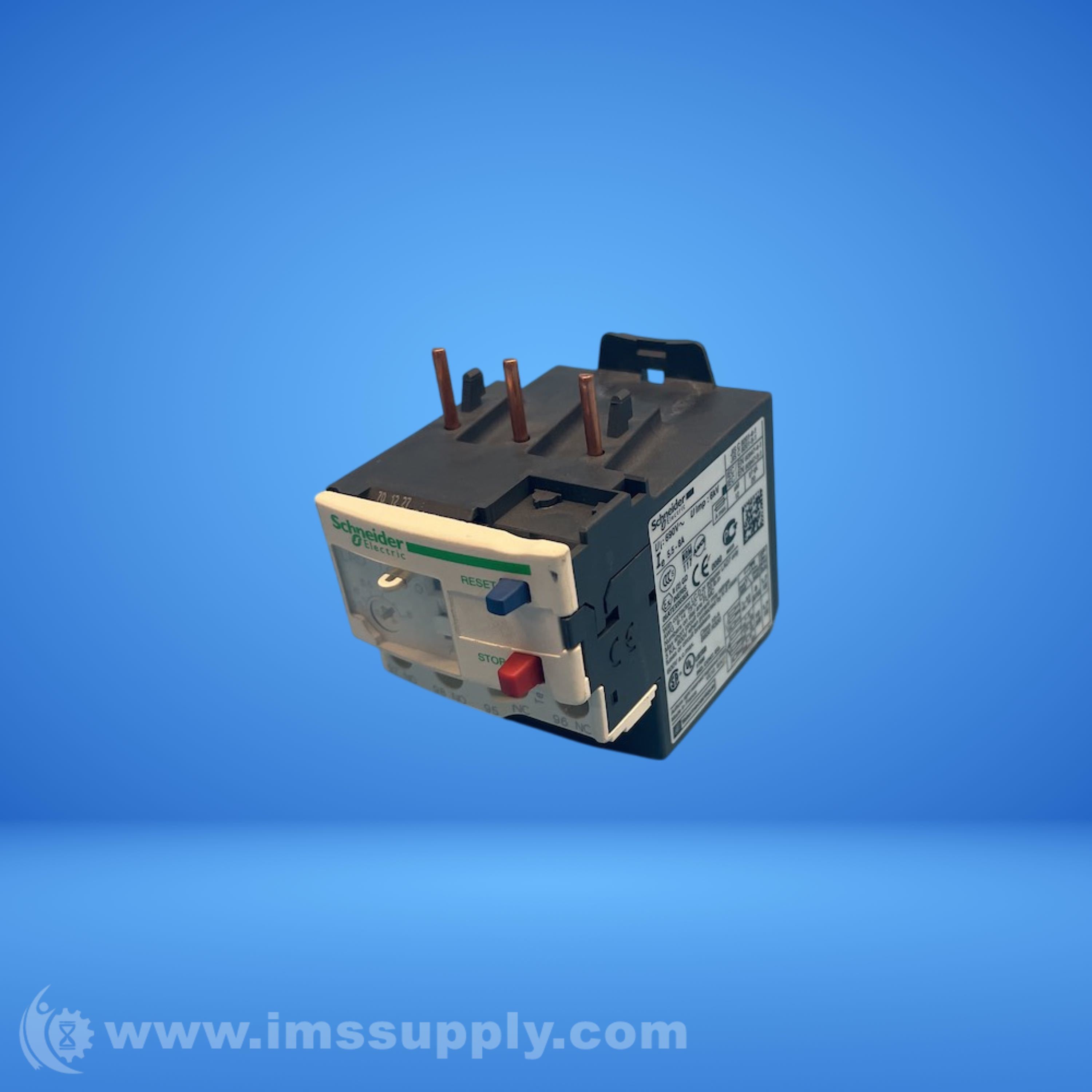

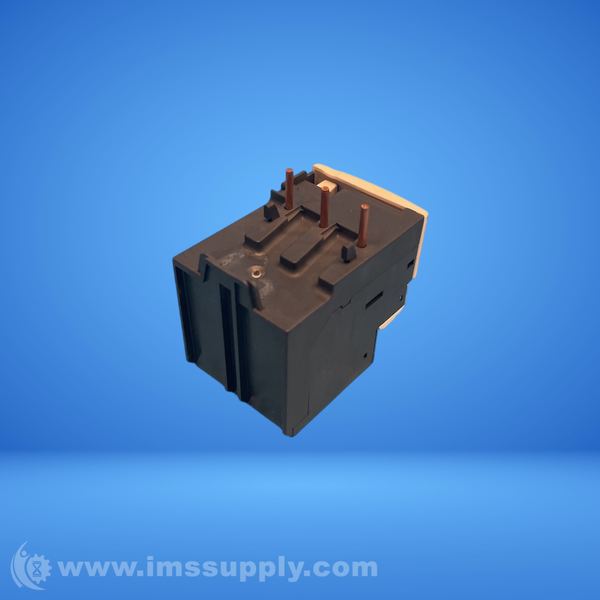

Schneider Electric LRD-12 Thermal Overload Relay
Thermal overload relay for motor protection, adjustable from 5.5 to 8 AMPS, compatible with LC1D09 to LC1D32 TeSys contactors. Class 10 protection, phase loss sensitivity, and manual or automatic reset.
Specifications
- AMP Range: 5.5 to 8 AMPS
- Phase Loss Sensitivity: Yes
- Reset: Manual or Automatic
- Terminals: Screw
- Trip Class: 10
- Adjustable Trip Current Rating: 5.5 To 8 Amperes
- For Contactor: LC1D09 - LC1D38
- Rated Insulation Voltage (Ui): 690v
- Rated Impulse Withstand Voltage (Uimp): 6
- Temperature Compensation: -20 -> +60C, -68 -> 140F
- Sensitivity to Phase Failure: Tripping current 30% of In on one phase, the others at In
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
