SCHNEIDER ELECTRIC NSYTRV42 LINERGY TERMINAL BLOCK
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: NSYTRV42
IMS Product Code: 1877789
Packaging: Sold Individually
Description:

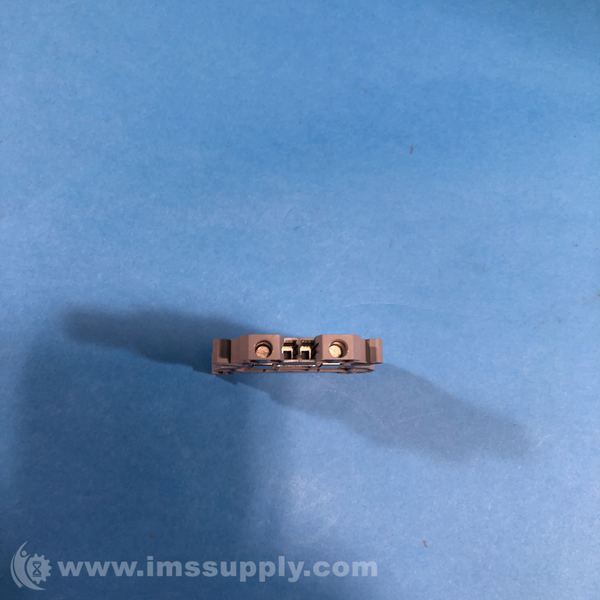

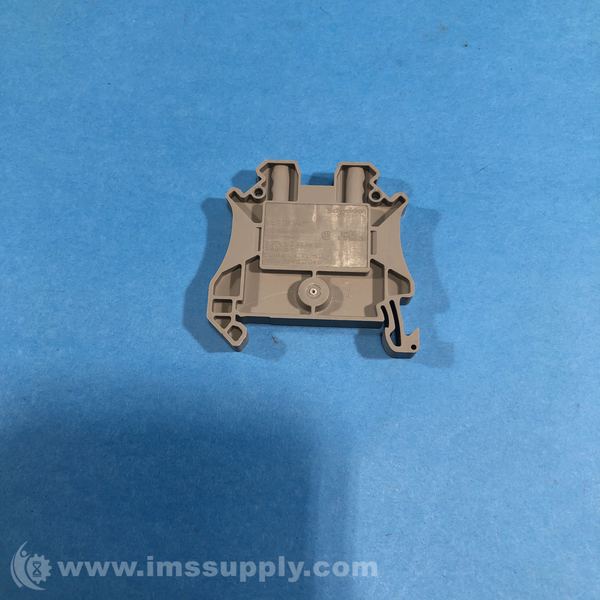

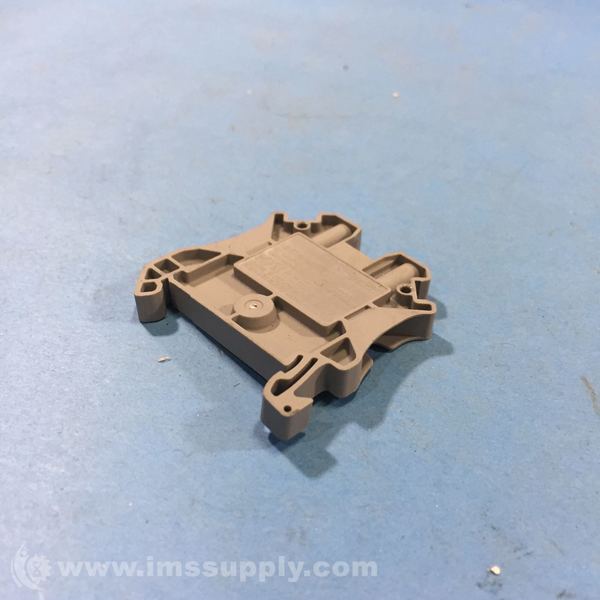

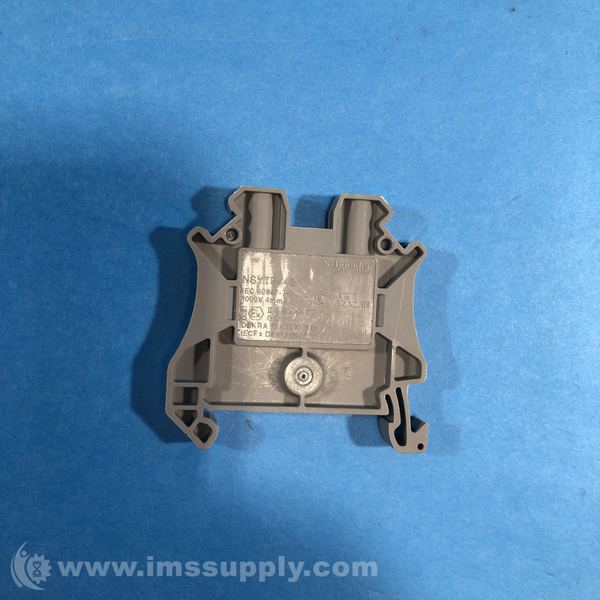

Schneider Electric NSYTRV42 Linergy Terminal Block
Schneider Electric Linergy Terminal Block, Feed Through, Series: TRV, 600/690/1000 VAC, 32 A, 0.35 in Wire Strip Length, Screw Terminal, 4 sq-mm Terminal, 0.6 to 0.8 N-m Torque, Clip Mounting, Terminal Screw Connection, -40 to 130 deg C, Polyamide 6.6, Gray, 1.8 in L x 0.24 in W x 1.87 in H Dimensions
Specifications
- brand: Schneider Electric
- mpn: NSYTRV42
- series: TRV
- type: Feed Through
- connection type: Screw Terminal
- rated current: 32 A
- rated voltage: 1000 V
- nominal cross section: 4 mm
- wire stripping length: 0.35 in (9 mm)
- torque rating: 0.6 to 0.8 N-m
- material: Polyamide 6.6
- mounting type: Clip
- dimensions: 1.8 in L x 0.24 in W x 1.87 in H
- color: Gray
- temperature rating: -40 to 130 deg C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 59 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Schneider Electric NSYTRAC22 attached to part.
Availability: 1 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
