SCHNEIDER ELECTRIC TM258LF42DR LOGIC CONTROLLER
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: TM258LF42DR
IMS Product Code: 2136464
Packaging: Sold Individually
Description:

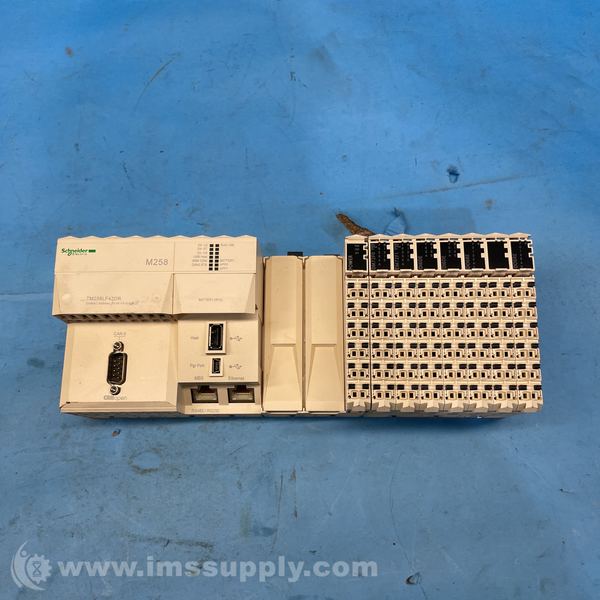

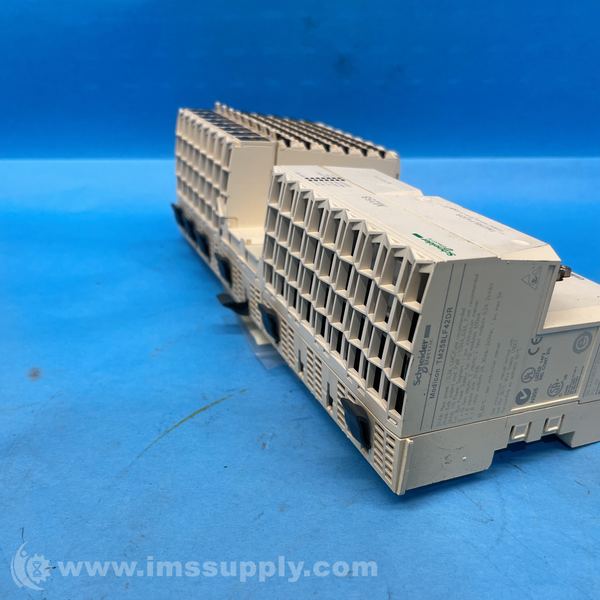

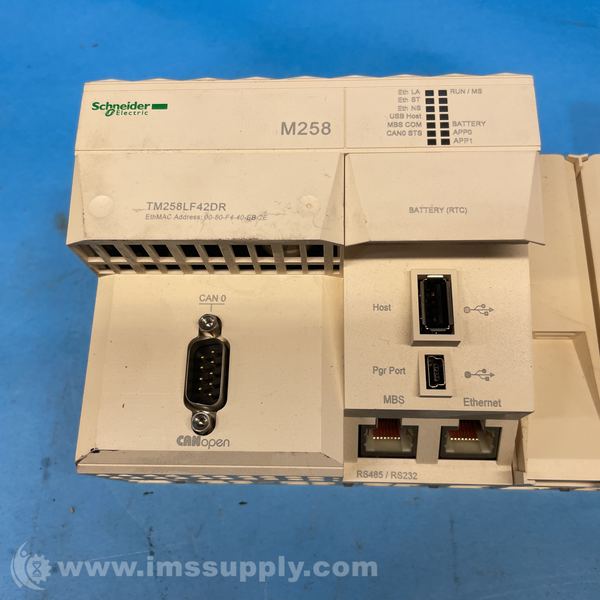

Schneider Electric TM258LF42DR Logic Controller
Logic controller, Modicon M258, compact base 42 I/O, 24 V DC, Relay, CANopen
Specifications
- Discrete I/O Number: 42
- Discrete Input Number: 10 fast input || 12 input || 4 regular input
- Discrete Output Number: 12 relay output || 4 fast output
- Discrete Input Voltage: 24 V
- Discrete Output Voltage: 24 V DC
- Integrated Connection Type: 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps || 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX || 1 isolated serial link mini B USB 480 Mbit/s || 1 isolated serial link USB type A 480 Mbit/s || 2 free slots PCI || 1 CANopen male SUB-D 9 CANopen master
- Ambient Air Temperature For Operation: 0-55 deg. C without derating horizontal installation) || 0-60 deg. C with derating factor horizontal installation) || 0-50 deg. C vertical installation)
- Ambient Air Temperature For Storage: -25-70 deg. C
- IP Degree Of Protection: IP20IEC 61131-2
- Mounting Support: symmetrical DIN rail
- Net Weight: 0.8 kg
- Depth: 85 mm
- Length: 262.5 mm
- Width: 99 mm
- RoHS: Compliant
New - Missing Box (Special):
COMES WITH BATTERY
Availability: 1 In Stock
