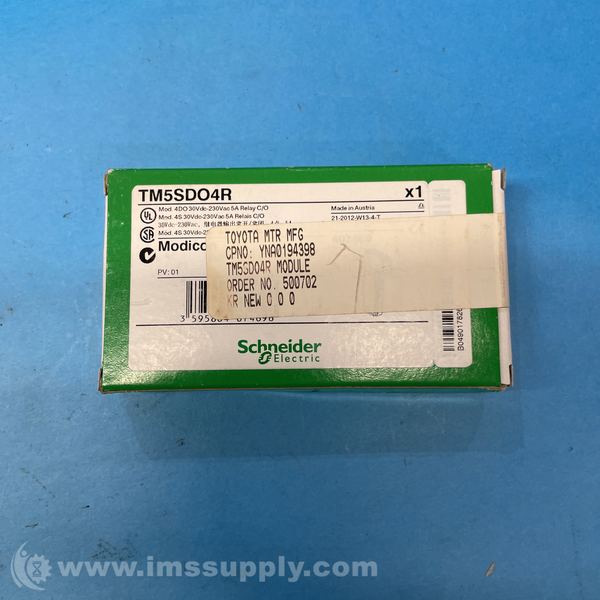

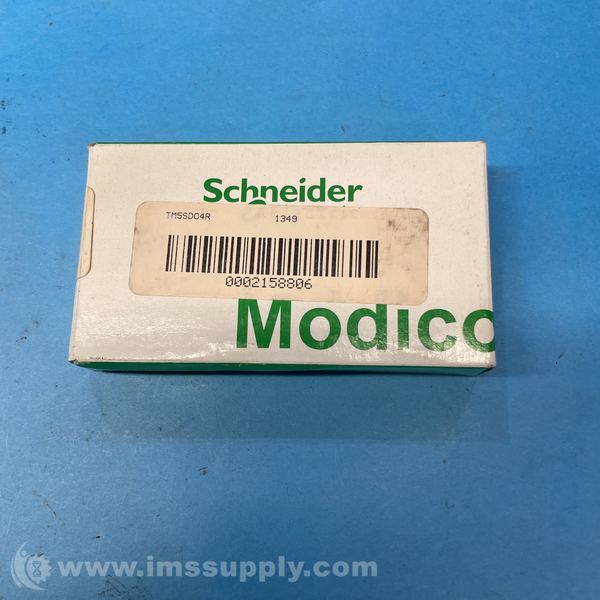

SCHNEIDER ELECTRIC TM5SDO4R DISCRETE OUTPUT MODULE
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: TM5SDO4R
IMS Product Code: 2138250
Packaging: Sold Individually
Description:
Schneider Electric TM5SDO4R Discrete Output Module
4 Discrete output module with relay output, 230 V AC or 30 V DC, for PacDrive LMC Pro 2, PacDrive LMC Eco, and PacDrive LMC Pro Black controllers.
Specifications
- Product or Component Type: discrete output module
- Range of Product: Modicon TM5
- Discrete Output Number: 4
- Discrete Output Type: relay
- Discrete Output Function: 4 NO
- Output Voltage: 230 V AC || 30 V DC
- Output Voltage Limits: 184...276 V AC || 24...36 V DC
- Maximum Current Per Output Common: 5 A
- Maximum Power Dissipation In W: 2.3 W
- Current Consumption: 160 mA 5 V DC bus
- Ip Degree Of Protection: IP20
- Color: Black
- Net Weight: 0.025 kg
- Width: 12.5 mm
- Height: 99 mm
- Depth: 75 mm
- Operating Altitude: 0...2000 m
- Ambient Air Temperature For Operation: -10...55 °C without derating horizontal installation) || -10...60 °C with derating factor horizontal installation) || -10...50 °C vertical installation)
- Relative Humidity: 5-95 % without condensation
- Standards: CSA C22.2 No 213 || UL 508 || IEC 61131-2 || CSA C22.2 No 142
- Certification: GOST-R, C-Tick, cULus, CSA
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
