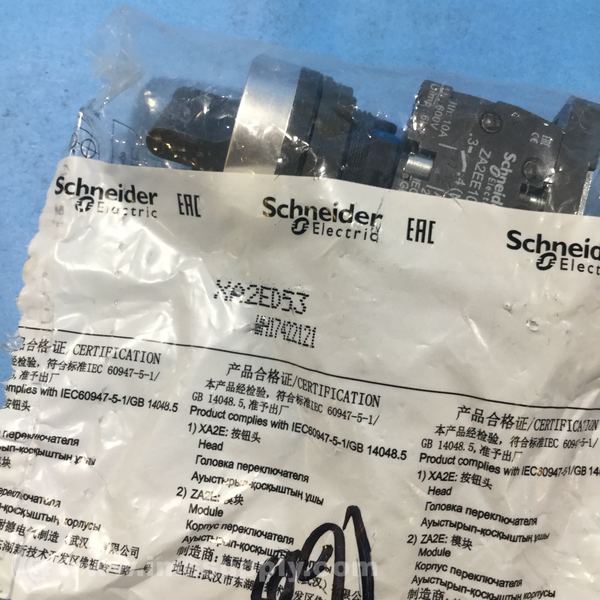

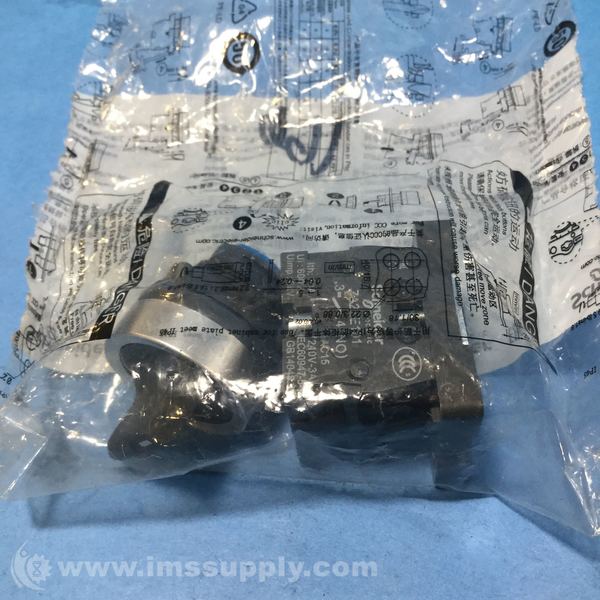

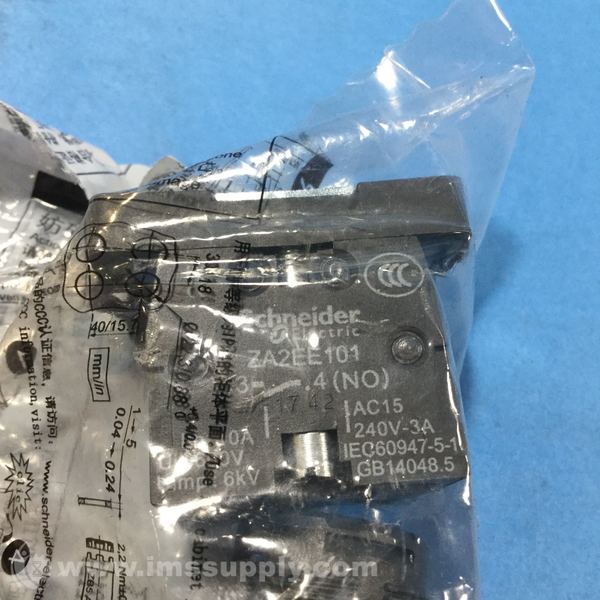

SCHNEIDER XA2ED53 HARMONY SELECTOR SWITCH
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: XA2ED53
IMS Product Code: 1807472
Packaging: Sold Individually
Description:
Schneider XA2ED53 Harmony Selector Switch
Complete selector switch with standard handle, 3 positions, 2NO contacts
Specifications
- Range of product: Easy Harmony XA2
- Product or component type: Complete selector switch
- Device short name: XA2
- Bezel material: Plastic
- Height: 42 mm
- Width: 30 mm
- Depth: 68.2 mm
- Net weight: 0.054 kg
- Mechanical durability: 300000 cycles
- Tightening torque: 0.8 N.m
- Short-circuit protection: 10 A fuse type gL conforming to IEC 60269-1
- [Ui] rated insulation voltage: 600 V conforming to IEC 60947-1
- Shape of signaling unit head: Round
- Contact operation: Slow-break
- Mounting diameter: 22.5 mm
- Cap/operator or lens colour: Black
- Type of operator: Spring return
- Operator position information: 3 positions +/- 45°
- Operator profile: Standard handle
- Head type: Standard
- Protective treatment: TC
- Standards: GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1
- Product certifications: CE CCC
- Vibration resistance: 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- IK degree of protection: IK06 conforming to IEC 60529
- Number of Positions: 3
- Contacts: 2NO
- Mounting Type: 22 mm
- Handle Type: Standard
- Switch Type: Selector
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 6 In Stock
Ships today if ordered in the next 12 hours and 59 minutes.
