SCHNEIDER ELECTRIC ZA2EE101 CONTACT MODULE
Quick Overview
Manufactured By: SCHNEIDER ELECTRIC
Manufacturer Part Number: ZA2EE101
IMS Product Code: 1807244
Packaging: Sold Individually
Description:

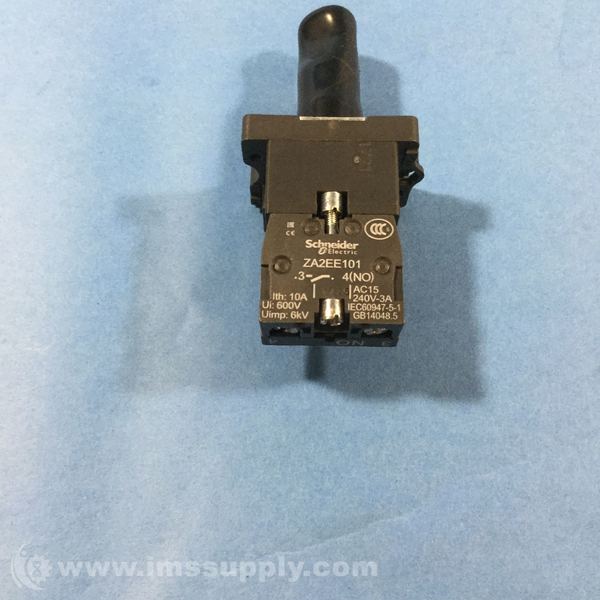

Schneider Electric ZA2EE101 Contact Module
Schneider Electric ZA2EE101 single contact block designed for O22 heads with 1 NO configuration, offering exceptional reliability and precision.
Specifications
- Mounting Diameter: O22mm
- Contact Configuration: 1 NO (Normally Open)
- Product Line: Harmony XB4
- Product Type: Pushbutton
- Material: Metal
- Color: Black
- Diameter: 22mm
- Mounting Type: Spring return
- Operator Type: Booted
- Climatic Resistance: IEC 60068-2-14 Test Jb
- Shock Resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- Vibration Resistance: 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
- IP Degree of Protection: IP69
- IK Degree of Protection: IK06 conforming to IEC 50102
- Ambient Air Temperature for Storage: -40...70 degrees C
- Ambient Air Temperature for Operation: -40...70 degrees C
- Relative Humidity: 10...95 %, without condensation
- Operating Force: 3.8 N
- Mechanical Durability: 10000000 cycles
- Electrical Durability: 1000000 cycles, AC-15, 230 V, 0.125 A, IEC/EN 60947-5-1 appendix C
- Connector Type: Screw clamp terminals 1 cable(s) 1...2.5 mmq flexible without cable end
- Tightening Torque: 0.8…1.2 N.m conforming to IEC 60947-1
- Shape of Screw Head: Cross head compatible with Philips no 1 screwdriver, Cross head compatible with pozidriv No 1 screwdriver, Slotted head compatible with flat O 4 mm screwdriver, Slotted head compatible with flat O 5.5 mm screwdriver
- Bezel Material: Metal
- Type of Operator: Spring return
- Operator Profile: Black booted
- Operator Status: Spring return
Used (Special):

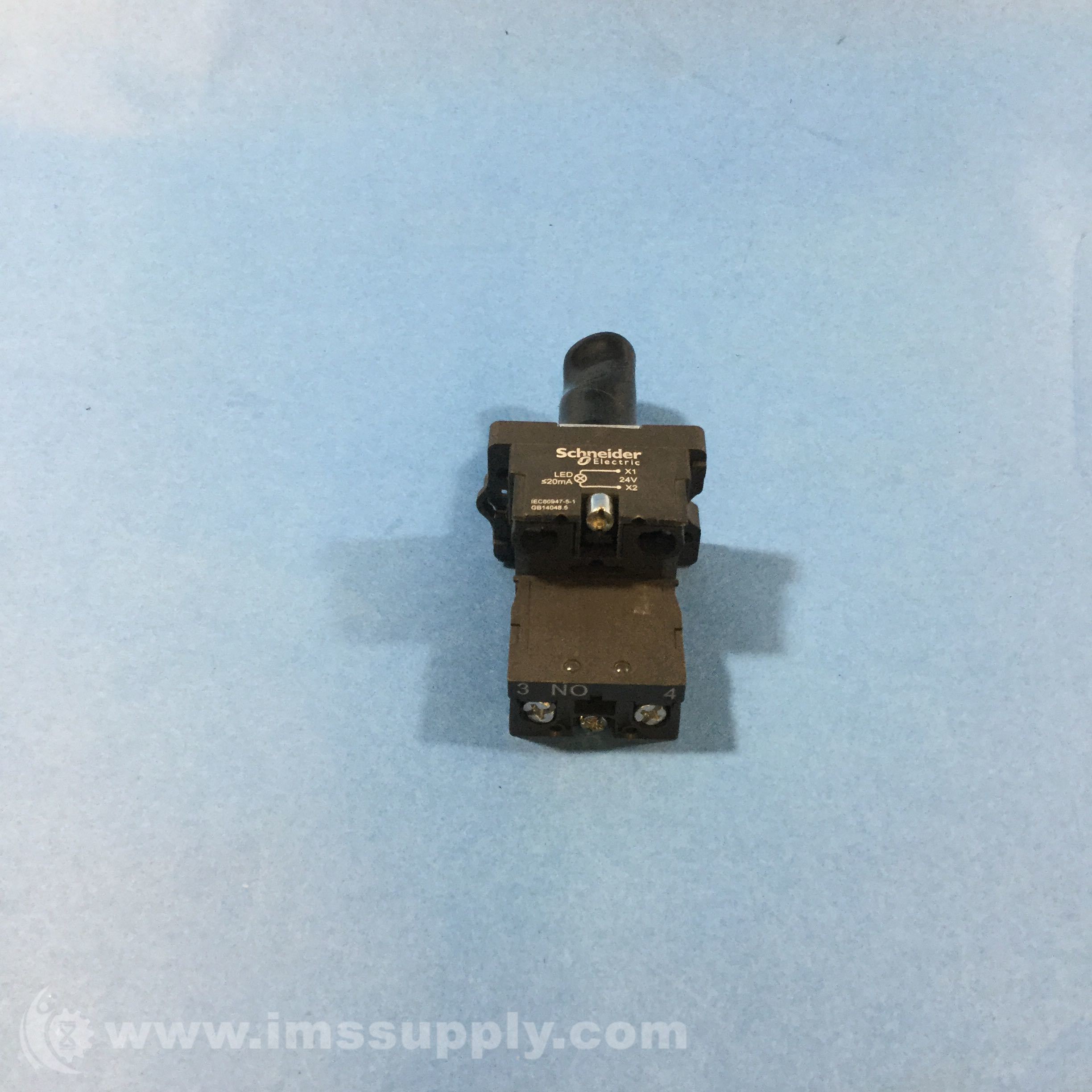

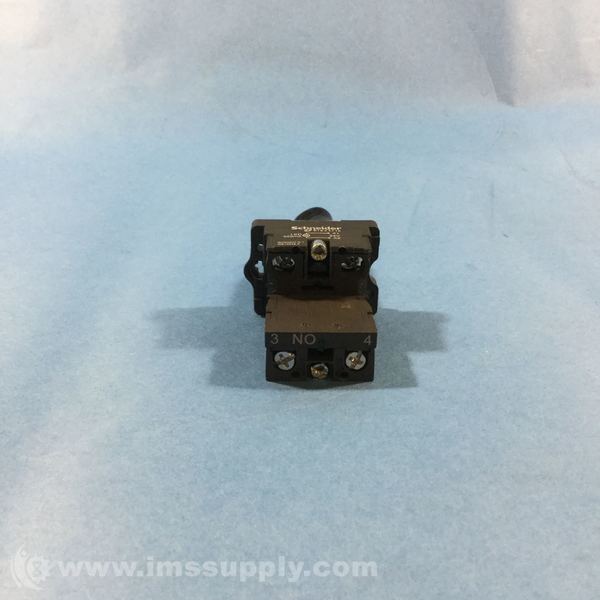

Has additional part attached
