SCHRADER BELLOWS FW2B102421 6.000 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: SCHRADER BELLOWS
Manufacturer Part Number: FW2B102421 6.000
IMS Product Code: 2153062
Packaging: Sold Individually
Description:

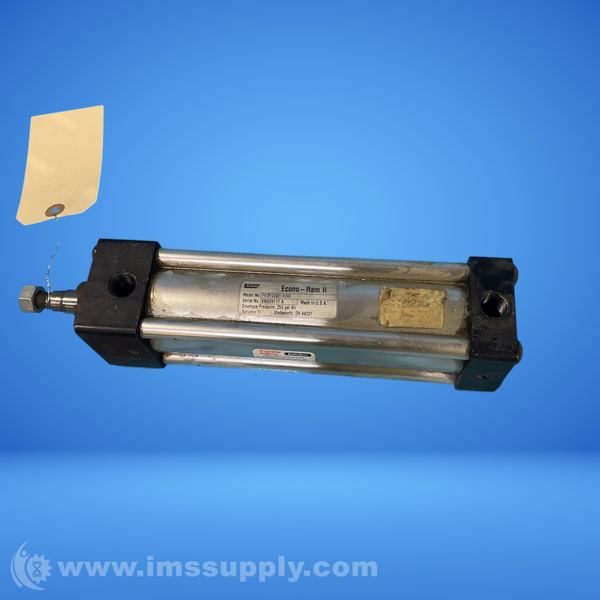

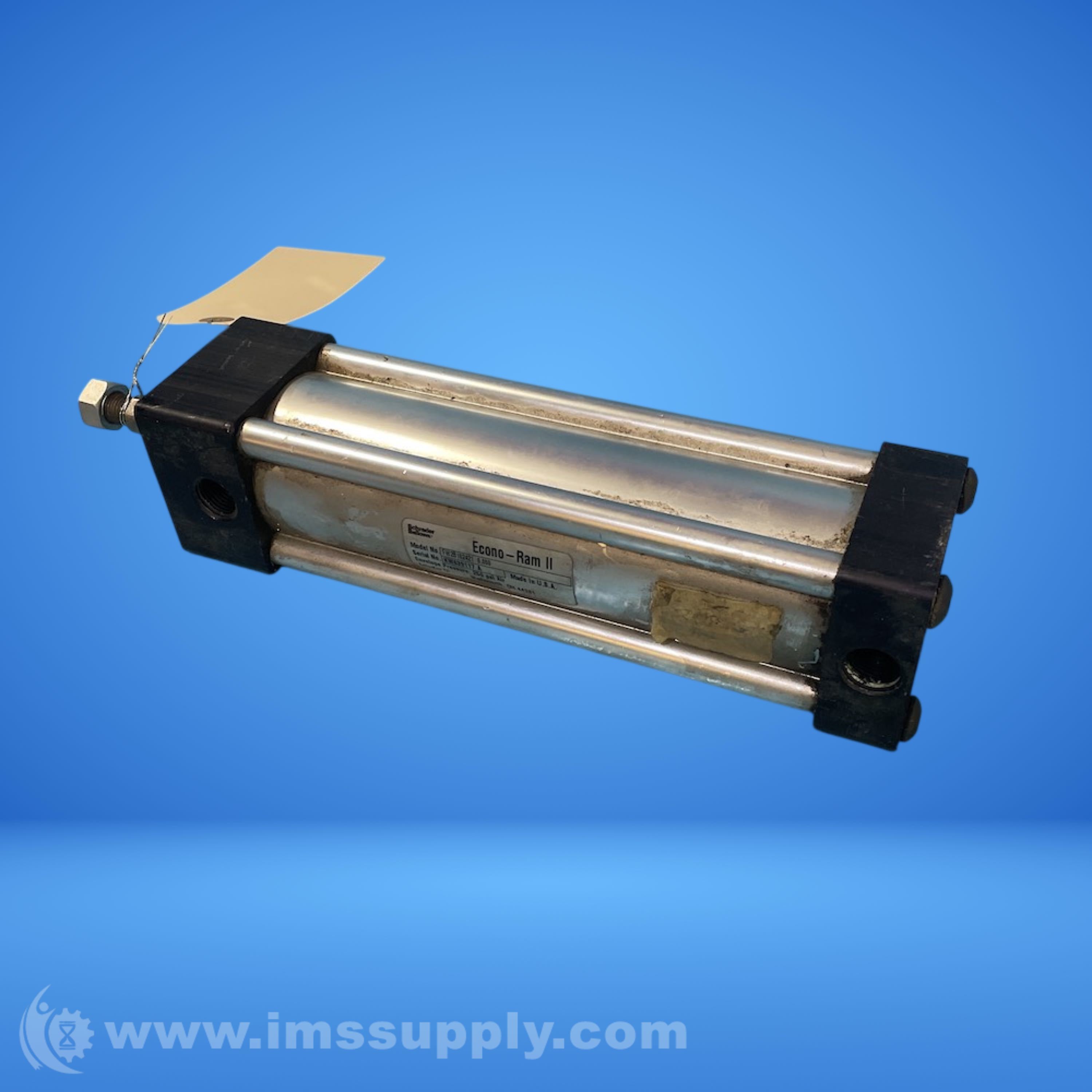

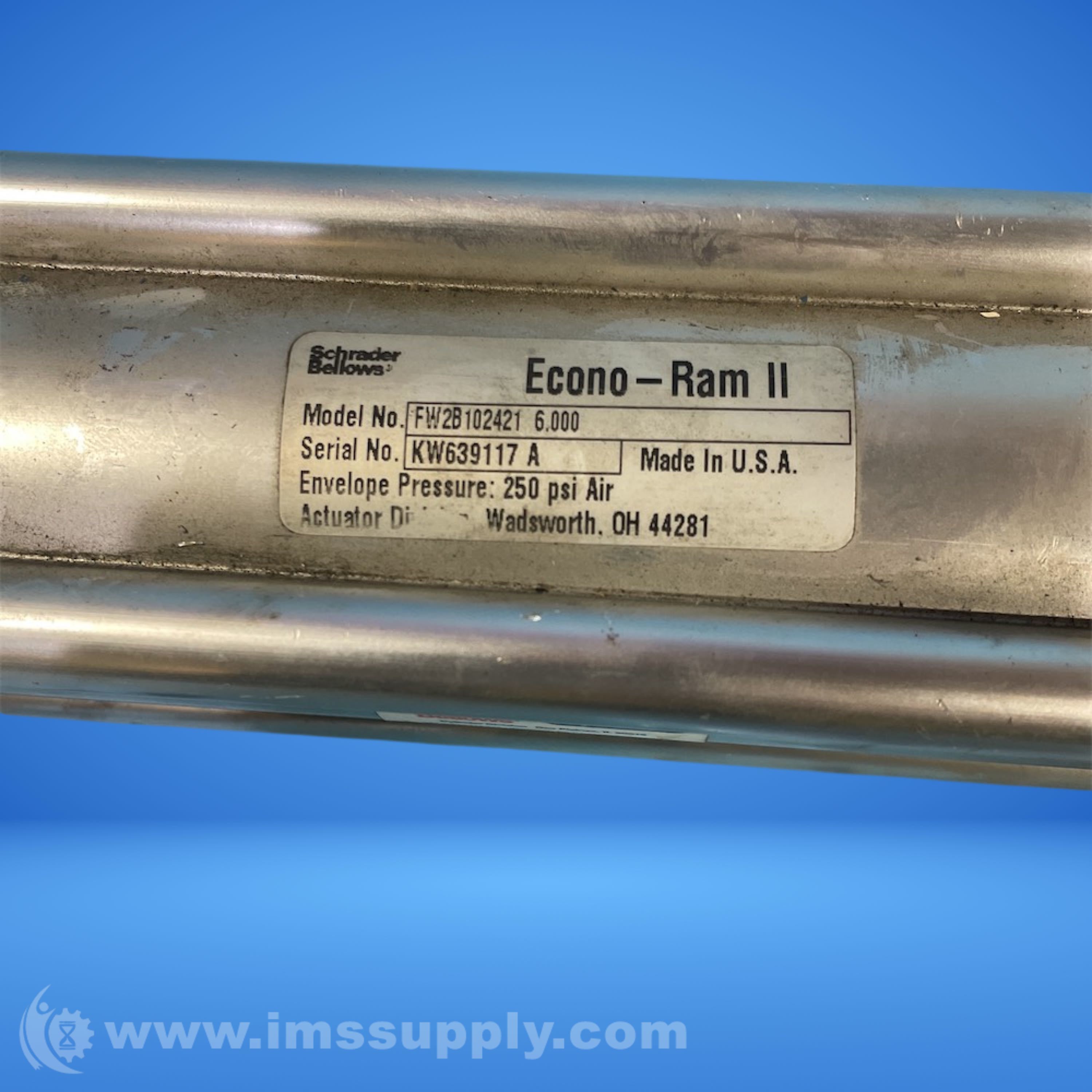

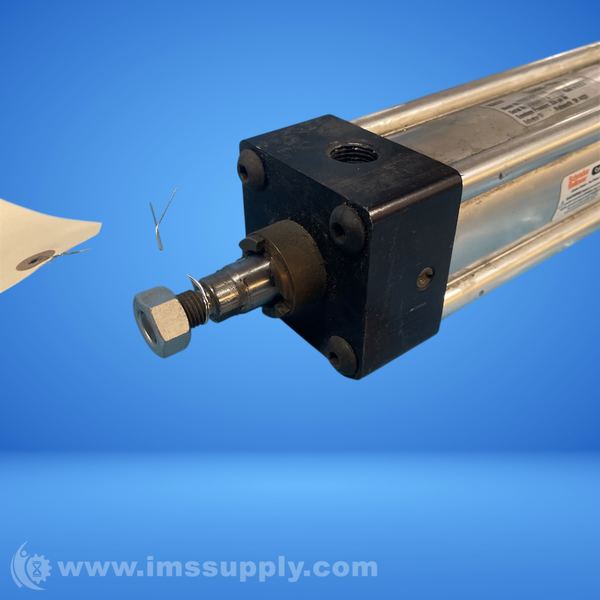

Schrader Bellows FW2B102421 6.000 Pneumatic Cylinder
Pneumatic cylinder, tie rod, NFPA interchangeable, aluminum body, 2 inch bore, 6 inch stroke, 250 psi, single rod end, cushioned both ends.
Specifications
- Series: Econo-Ram II
- Cylinder Bore Size: 2 in
- Stroke: 6 inch
- Rod Diameter: 5/8 in
- Rod End Thread: 7/16-20
- Port Size: 3/8
- Port Type: NPTF
- Port Location: 12 O'clock on Each End (Standard)
- Actuator Material: Aluminum
- Cylinder Material: Aluminum
- Rod Material: Aluminum
- Seal Material: Buna-N
- Seal Design: Buna-N Rubber
- Cushions: Cushioned, Both Ends
- Bumpers: w/o Bumpers
- End Type: Single Rod
- Mounting Style: MF1
- Mounting Style Description: Head Rectangular Flange
- Lube Specification: Non Lube Design
- Magnetic Piston: No
- Envelope Pressure: 250 psi
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
