SCHUNK 204056 HSK-A63 HYDRAULIC EXPANSION TOOLHOLDER
Quick Overview
Manufactured By: SCHUNK
Manufacturer Part Number: 204056
IMS Product Code: 1907819
Packaging: Sold Individually
Description:

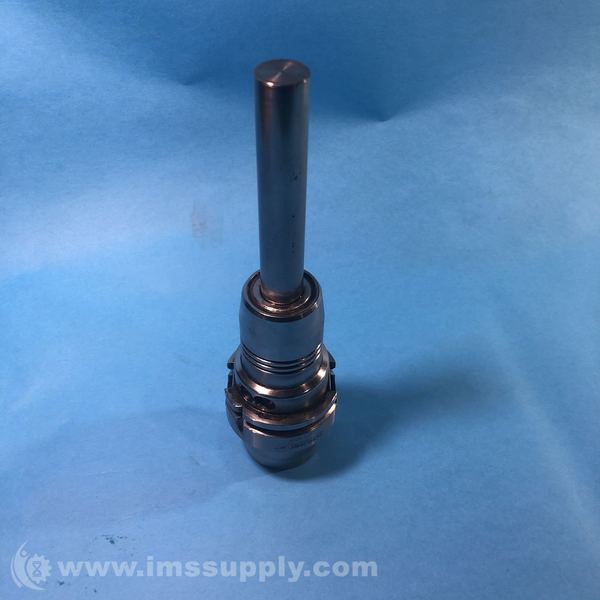

Schunk 204056 HSK-A63 Hydraulic Expansion Toolholder
Hydraulic expansion toolholder with HSK-A63 interface, 20mm clamping diameter, and 90mm projecting length.
Specifications
- Series: TENDO Platinum
- Toolholder Interface: HSK-A 63
- Clamping Diameter D1: 20 mm
- Projecting Length L1: 90 mm
- Run-out Accuracy: < 0.003 mm at 2.5 x D
- Balancing Grade: G2.5 at 25,000 RPM
- Min. Torque: 330 Nm
- D2: 42.0 mm
- D3: 50.0 mm
- D6: 38.0 mm
- L2: 51.0 mm
- L3: 10.0 mm
- L4: 48.0 mm
- L5: 64.0 mm
- G: M16x1
- Weight: 1.3 kg
- Coolant-Proof: yes
- Nose Diameter: 38.00 mm
- Clamping Depth: 41.50 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
