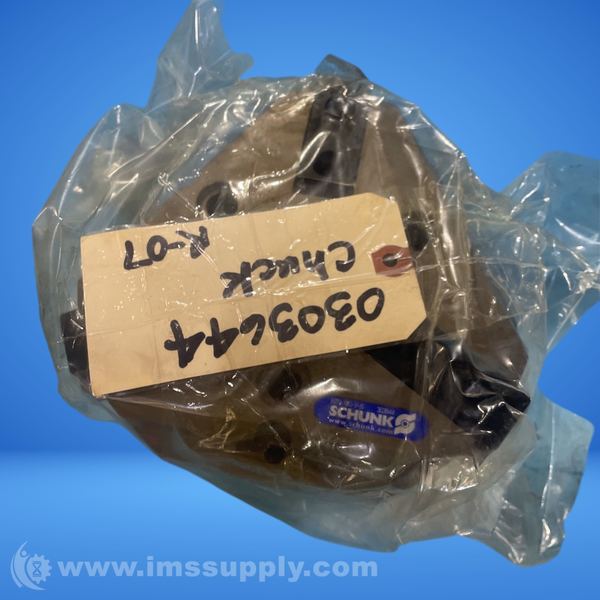

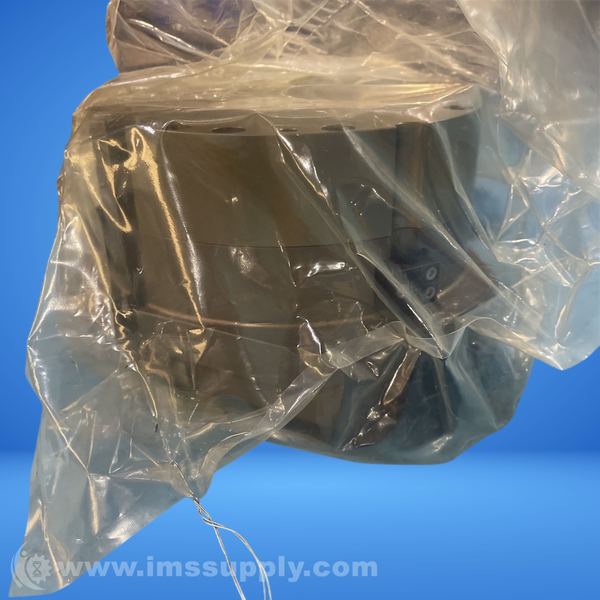

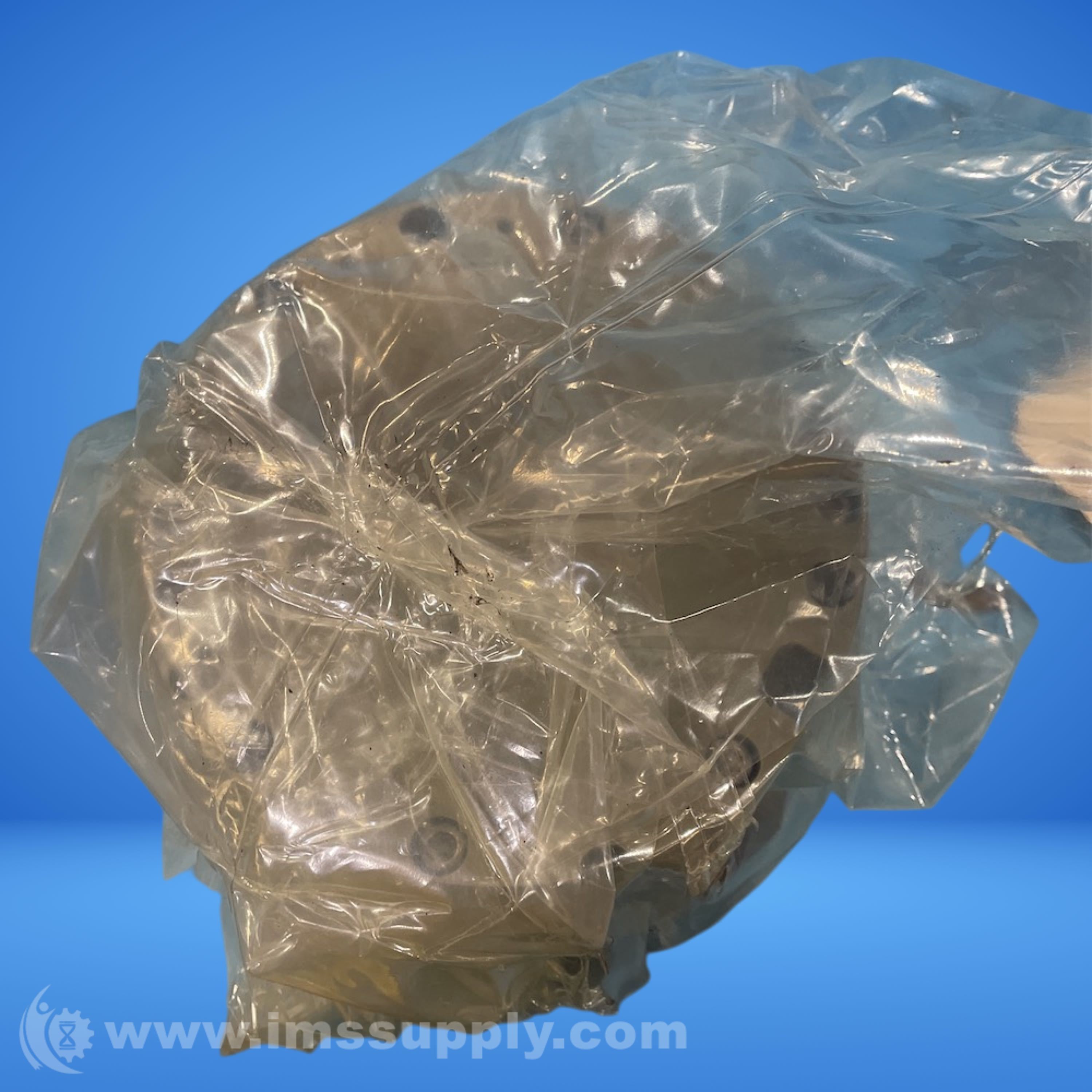

SCHUNK 303644 PNEUMATIC GRIPPER
Quick Overview
Manufactured By: SCHUNK
Manufacturer Part Number: 303644
IMS Product Code: 2134012
Packaging: Sold Individually
Description:
Schunk 303644 Pneumatic Gripper
Universal gripper PZN-plus, Size: 160, pneumatic, with gripping force maintenance: IS
Specifications
- Stroke per jaw: 8 mm
- Opening force: 16090 N
- Max. ambient temperature: 90 degrees C
- Min. spring force: 4340 N
- Weight: 8 kg
- Recommended workpiece weight: 55 kg
- Cylinder volume per double stroke: 875 cm³
- Min. operating pressure: 4 bar
- Max. operating pressure: 6.5 bar
- Nominal operating pressure: 6 bar
- Closing time: 0.8 s
- Opening time: 0.4 s
- Max. permissible finger length: 200 mm
- Max. permissible weight per finger: 3.5 kg
- IP protection class: 40
- Min. ambient temperature: 5 degrees C
- Repeat accuracy: 0.02 mm
- Cleanroom class ISO 14644-1: 5
- Diameter D: 190 mm
- Height Z: 111 mm
- Moment Mx max.: 170 Nm
- Moment My max.: 180 Nm
- Moment Mz max.: 130 Nm
- Max. axial force Fz max.: 4300 N
- Operating principle: Wedge-hook kinematics
- Housing material: Aluminum alloy, anodized
- Base jaw material: Steel
- Actuation: pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4]
