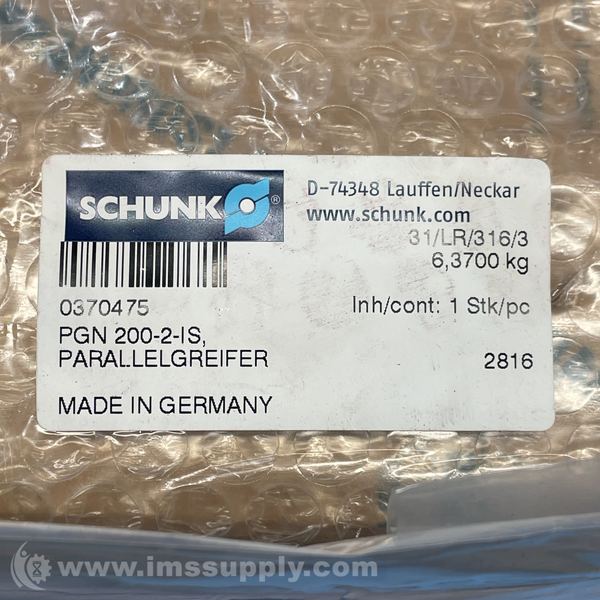

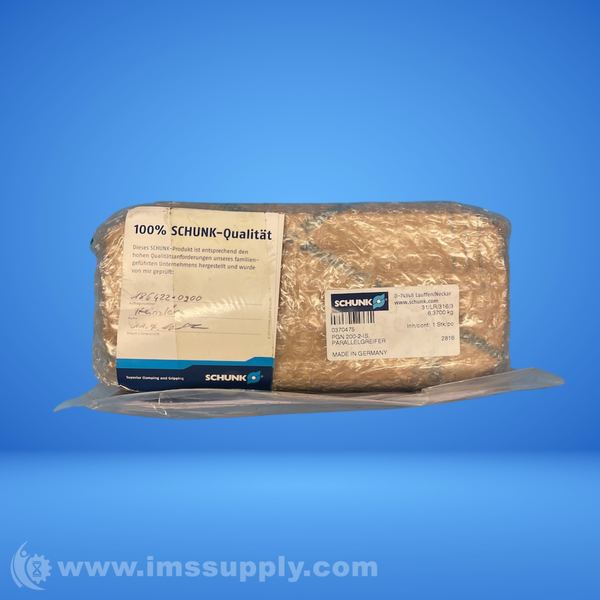

SCHUNK PGN200-2-IS GRIPPER
Quick Overview
Manufactured By: SCHUNK
Manufacturer Part Number: PGN200-2-IS
IMS Product Code: 2175655
Packaging: Sold Individually
Description:
Schunk PGN200-2-IS Gripper
Universal gripper with gripping force maintenance, pneumatic operation, size 200.
Specifications
- Cylinder Volume per Double Stroke: 890 cm�
- Closing Time: 0.55 s
- Closing/Opening Time with Spring: 0.4 s
- Height Z: 141 mm
- Length X: 234 mm
- Max Air Purge Pressure: 1 bar
- Max Ambient Temperature: 90 degrees C
- Max Axial Force Fz max.: 12000 N
- Max Operating Pressure: 6.5 bar
- Max Permissible Finger Length: 220 mm
- Max Permissible Weight per Finger: 6.5 kg
- Moment Mx max.: 215 Nm
- Moment My max.: 200 Nm
- Moment Mz max.: 250 Nm
- Min Air Purge Pressure: 0.5 bar
- Min Ambient Temperature: 5 degrees C
- Min Operating Pressure: 4 bar
- Min Spring Force: 2450 N
- Nominal Operating Pressure: 6 bar
- Opening Force: 9350 N
- Opening Time: 0.24 s
- Recommended Workpiece Weight: 32.5 kg
- Repeat Accuracy: 0.02 mm
- Stroke per Jaw: 14 mm
- Weight: 6.8 kg
- Width Y: 100 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 33 minutes.
