SEAL MASTER NP-10 CAST IRON TWO BOLT PILLOW BLOCK BALL BEARING
Quick Overview
Manufactured By: SEAL MASTER
Manufacturer Part Number: NP-10
IMS Product Code: 1807021
Packaging: Sold Individually
Description:

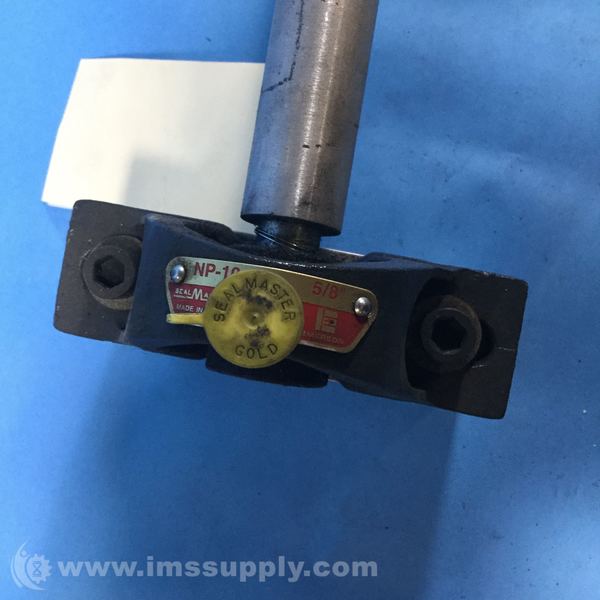

Seal Master NP-10 Cast Iron Two Bolt Pillow Block Ball Bearing
Cast iron two bolt pillow block ball bearing with 52100 bearing steel and black oxide finish. Features setscrew locking mechanism and felt labyrinth seal. Powder coated epoxy housing with zone hardened inner ring.
Specifications
- Bore Diameter: 0.625 in
- Housing Material: Cast Iron
- Bearing Insert Material: 52100 Bearing Steel
- Housing Type: Pillow Block, Two Bolt
- Seal Type: Felt Labyrinth Seal
- Shaft Locking Type: Set Screw
- Dynamic Load Rating: 2611 lb
- Static Load Rating: 1444 lb
- Maximum Speed: 7300 rpm
- Maximum Operating Temperature: 220 F
- Overall Length: 5 in
- Overall Width: 1.5 in
- Overall Height: 2.44 in
- Bolt Size: 3/8 in
- Bolt Spacing: 3.75 in
- Weight: 1.75 lb
Used (Special):

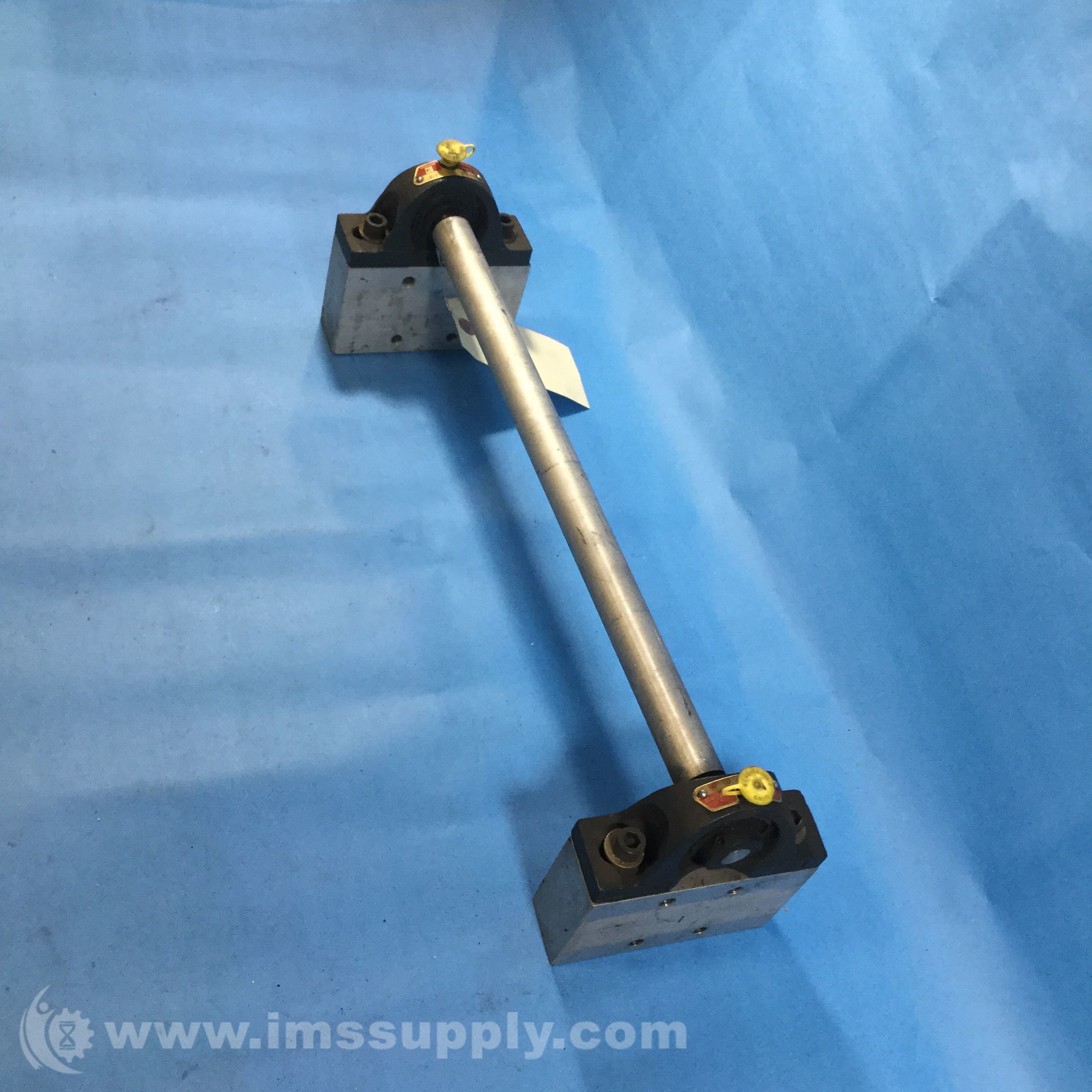

This item has two NP-10 models #'s connected to additional hardware.
