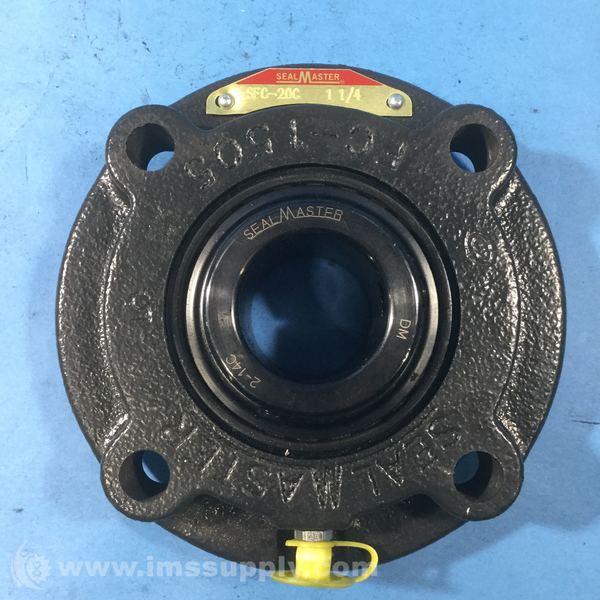

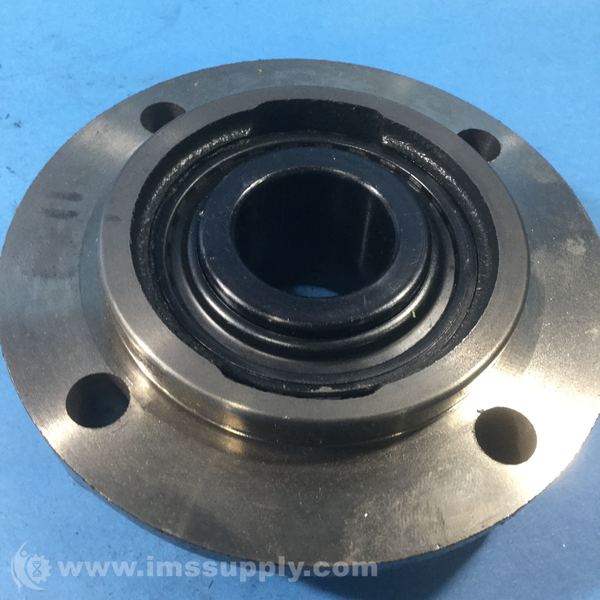

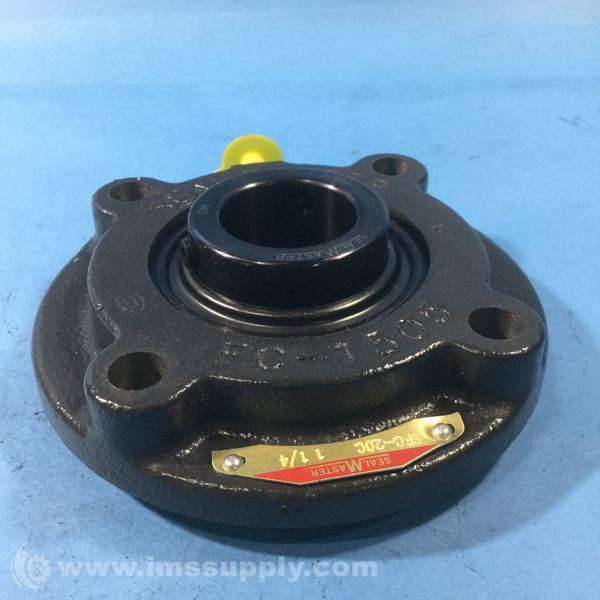

SEAL MASTER SFC-20C FLANGE BALL BEARING UNIT
Quick Overview
Manufactured By: SEAL MASTER
Manufacturer Part Number: SFC-20C
IMS Product Code: 1838820
Packaging: Sold Individually
Description:
Seal Master SFC-20C Flange Ball Bearing Unit
Four-Bolt Piloted Flange Ball Bearing Unit with 1-1/4 in Bore, Cast Iron Housing, Set Screw Locking, Contact Seal
Specifications
- Bore Diameter: 1-1/4 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Center To Center Length: 4.1250 in
- Bolt Circle Diameter: 4.1250 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal
- Overall Length Diameter: 5.0000 in
- Housing Width: 1.2813 in
- Bore Type: Straight
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Inner Ring Width: 1.6880 in
- Bearing Material: 52100 Bearing Steel, Black Oxided
- Operating Temperature Range: -20 to 220 F
- Pilot Diameter: 3.3750 in
- Bolt Size: 0.3750 in
- Max Rpm: 4650 rpm
- Series: SFC
- Weight: 3.7 lbs
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Piloted Flange
