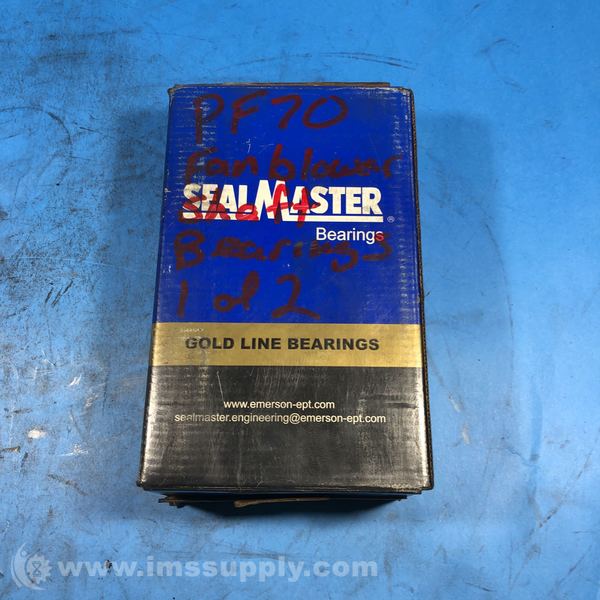

SEALMASTER EMP-19 PILLOW BLOCK BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: EMP-19
IMS Product Code: 1862725
Variation: Unspecified
Unspecified
Bore Size: 1 3/16 in
Packaging: Sold Individually
Description:
Sealmaster EMP-19 Pillow Block Ball Bearing
Pillow Block Ball Bearing Unit - 2-Bolt Base, 1-3/16 in Bore, Cast Iron Material, Medium Duty, Expansion Bearing (Floating)
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round / Straight
- Bore Diameter: 1-3/16 in
- Bolt Center To Center Length: 4.5000 to 5.5000 in
- Base To Bore Centerline: 1.8750 in
- Duty Type: Medium Duty
- Locking Device: Set Screw
- Seal Type: Felt Labyrinth Seal
- Housing Material: Cast Iron
- Expansion Type: Expansion Bearing (Floating)
- Overall Height: 3.8130 in
- Overall Length: 6.8750 in
- Base Width: 2.2500 in
- Overall Width: 1.6875 in
- Finish Coating: Gray
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bolt Size: 0.5000 in
- Max Operating Temperature: 220 °F
- Radial Dynamic Load Capacity: 4381 lbf
- Radial Static Load Capacity: 2567 lbf
- Max Rpm: 5450 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: Medium
- Replacement Bearing: AR-2-13
- Misalignment Angle: ±2.0° Misalignment - Static Only
- Type Of Bearing: Ball Bearing
- Weight: 5.1 lbs
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
- Product Type: Pillow Block Ball Bearing Units
- Ability to Relubricate: Yes
- Base Length (in): 6.88
- Base to Center Height (in): 1.875
- Base Width (in): 2.25
- Bearing Insert Finish: Black Oxide
- Bearing Insert Material: 52100 Bearing Steel
- Bearing Type: Medium Duty
- Bolt Size (in): 1/2
- Bolt Spacing (in): 5
- Bolt Spacing Max (in): 5.5
- Bolt Spacing Min (in): 4.5
- Bore Diameter (in): 1.1875
- Bore Shape: Straight
- Cage Material: PPS - Polyphenylene Sulfide
- Cage Type: Land Riding Retainer
- Centerline to Outermost Bearing Face (in): 0.875
- Dynamic Load Rating (lb): 4381
- End Cap: No
- Fixed vs. Expansion: Expansion
- Foot Height (in): 0.69
- Grease Fitting Thread Size: 1/4-28
- Height: 7.5
- Housing: Pillow Block, Two Bolt
- Housing Base: Solid
- Housing Coating: Powder Coated
- Housing Color: Black
- Housing Construction: One Piece
- Housing Style: Pillow Block
- Inner Race Heat Treat Method: Zone-Hardened
- Inner Ring OD (in): 1.594
- Insert: AR-2-13
- Length: 4.63
- Length Through Bore (in): 1.497
- Lubricant: Lithium Complex NLGI 2 Grease
- Max Operating Temperature (F): 220
- Maximum Speed (RPM): 5450
- Misalignment Capability: ±2.0° Misalignment - Static Only
- Misalignment Type: Static Only
- Outer Ring Land Profile: Standard
- Overall Height (in): 3.81
- Overall Length (in): 5.38
- Overall Width (in): 2.25
- Radial Clearance: Standard
- Rolling element: Ball Bearing
- Seal: Felt Labyrinth Seal
- Shaft Locking Type: Set Screw
- Size Code: 2-13
- Static Load Rating (lb): 2567
- Vibration Frequency Fundamental Train: 0.007
- Vibration Frequency Inner Ring Defect: 0.091
- Vibration Frequency Outer Ring Defect: 0.06
- Vibration Frequency Roller Spin: 0.039
- Width: 2.31
