SEALMASTER ER-20T BALL INSERT BEARING
Quick Overview
Brand: SEALMASTER
Part Number: ER-20T
IMS Product Code: 1999057
Packaging: Sold Individually
Description:

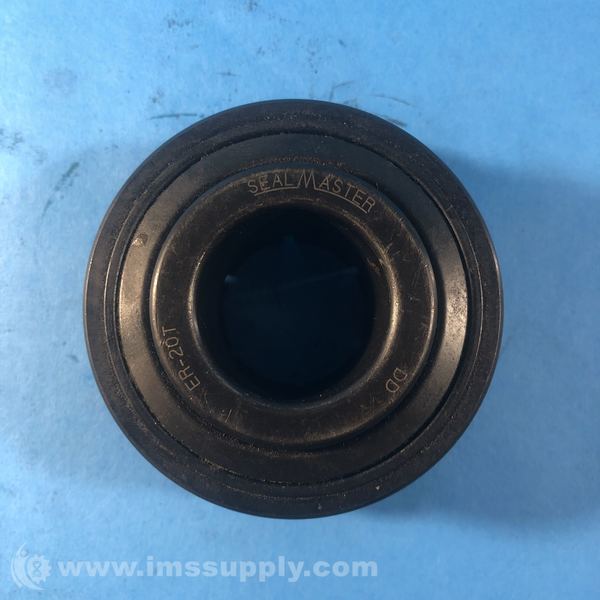

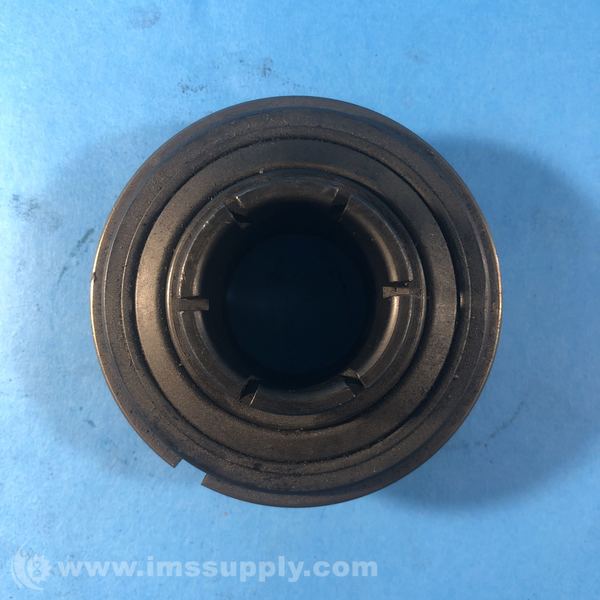

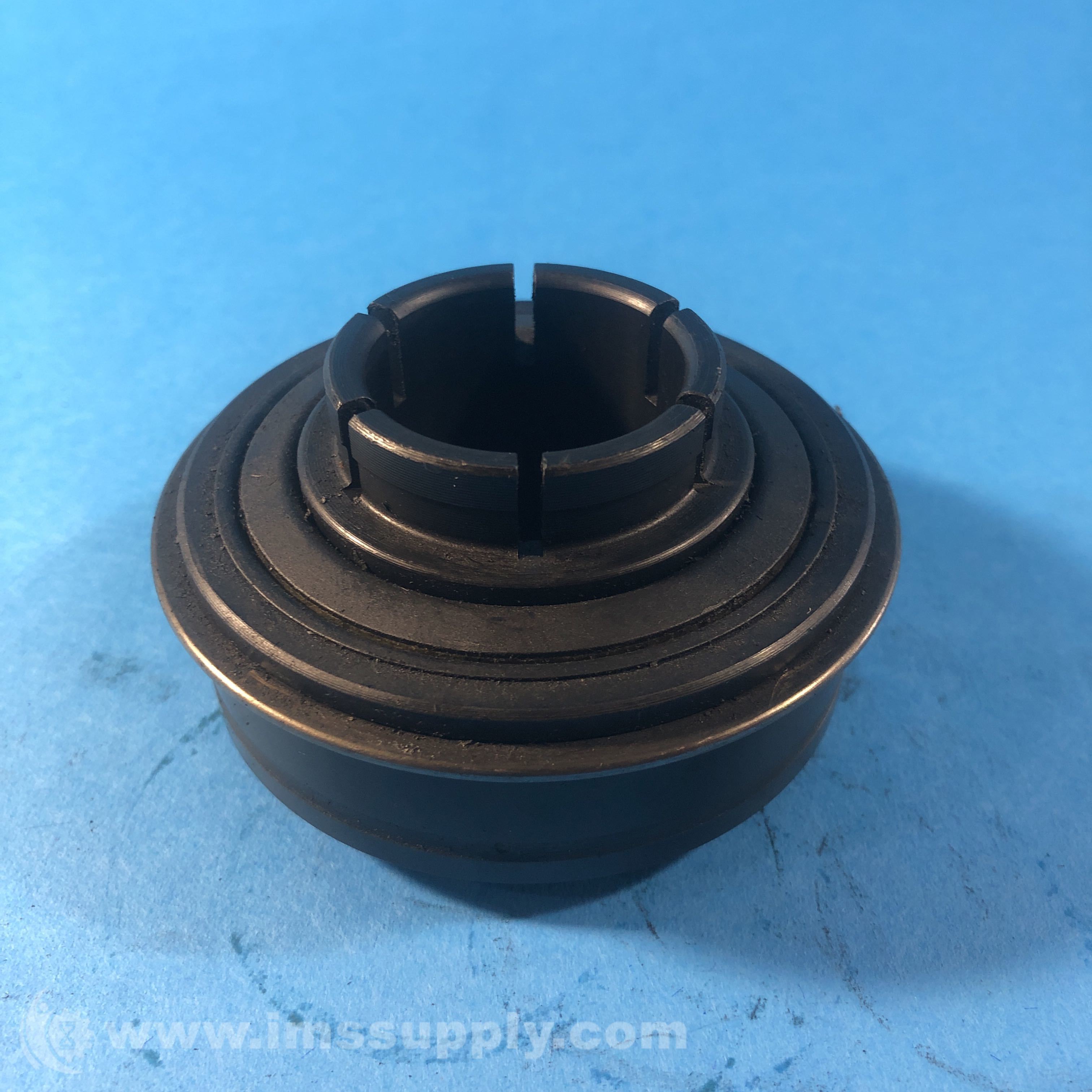

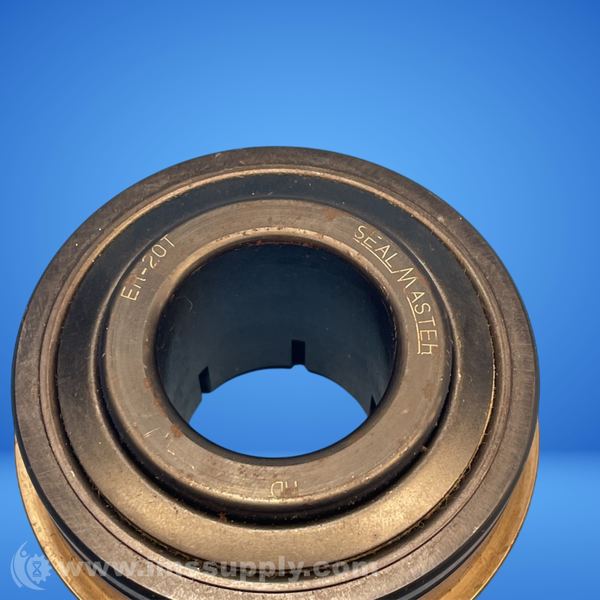

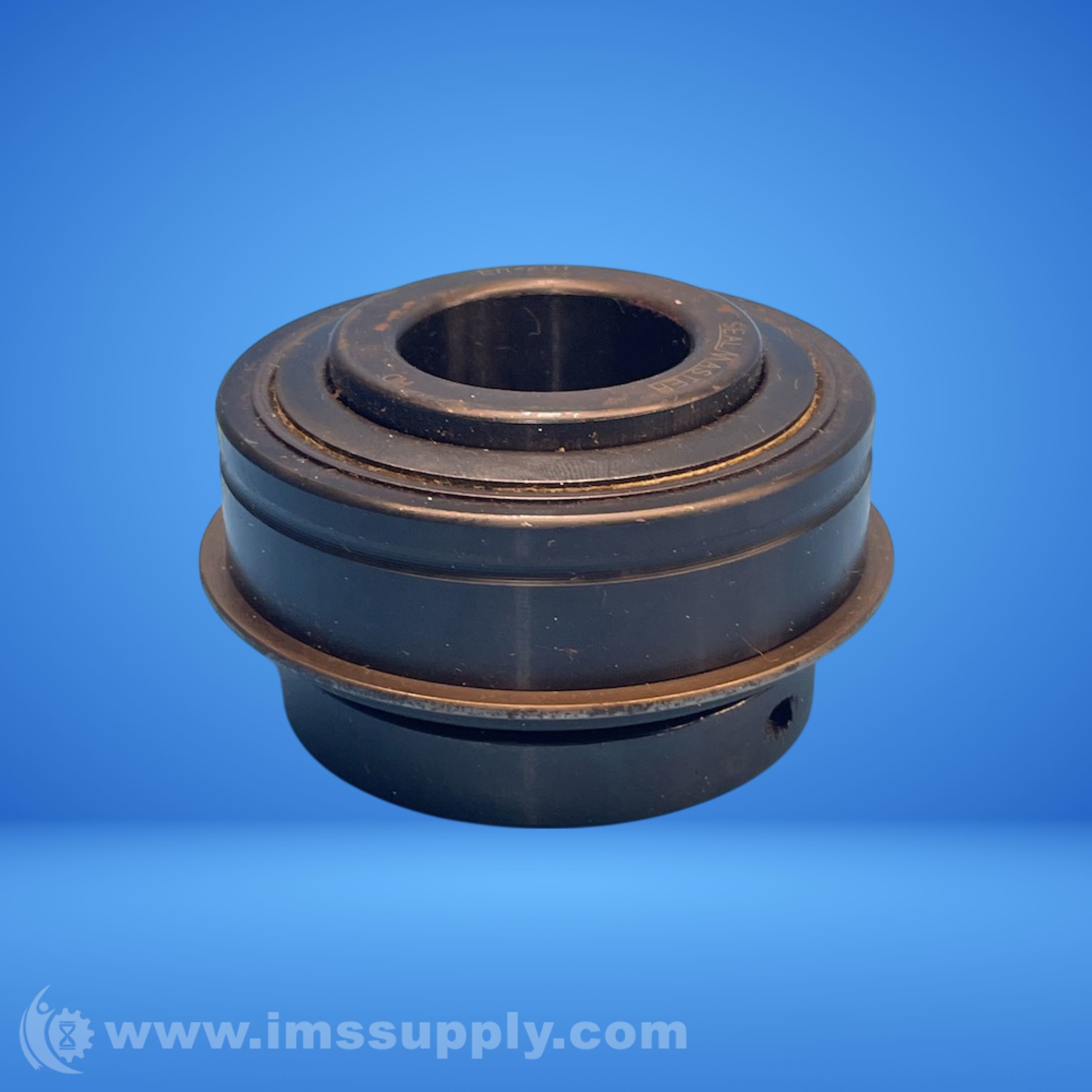

Sealmaster ER-20T Ball Insert Bearing
Ball Insert Bearing - Straight Bore, 1-1/4 in Bore Diam., 2.8350 in OD, 1.7500 in Width, Medium Duty, Concentric Collar Locking
Specifications
- Bore Type: Straight
- Bore Diameter: 1-1/4 in
- Outside Diameter: 2.8350 in
- Overall Width: 1.7500 in
- Bearing Type: Ball Bearing
- Duty Type: Medium Duty
- Locking Device: Concentric Collar
- Operating Temperature Range: -20 to 220 degrees F
- Radial Dynamic Load Capacity: 5782 lbs
- Radial Static Load Capacity: 3493 lbs
- Bearing Material: 52100 Bearing Steel
- Cage Material: PPS
- Finish Coating: Black Oxide
- Max Rpm: 6500 rpm
- Seal Type: Felt Labyrinth Seal
- Expansion Type: Non-Expansion Bearing (Fixed)
- Series: ER-T
- Precision Rating: ABEC 1
- Relubricatable: Yes
- Weight: 1.63 lbs

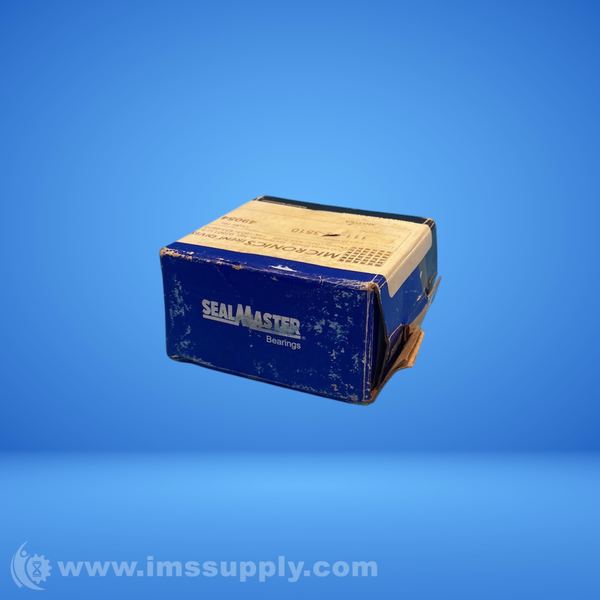

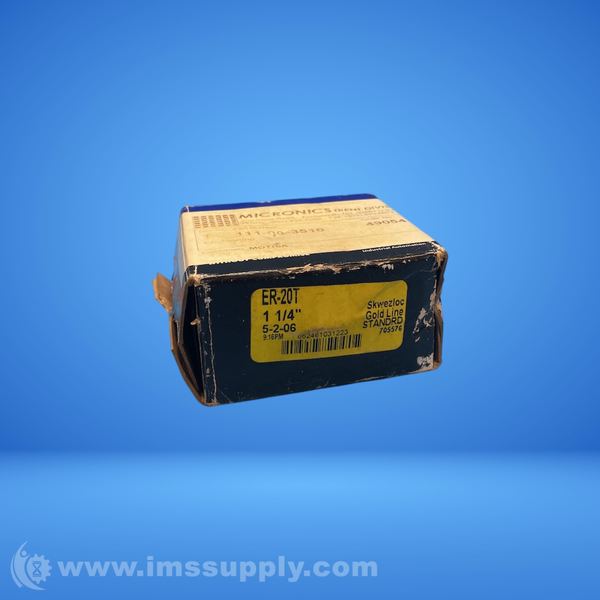

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 20 minutes.
