SEALMASTER MP-35 PILLOW BLOCK BEARING
Quick Overview
Brand: SEALMASTER
Part Number: MP-35
IMS Product Code: 2038820
Packaging: Sold Individually
Description:

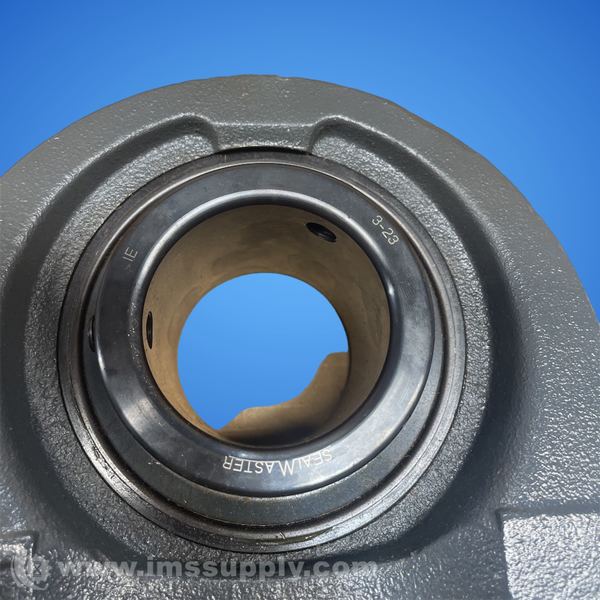

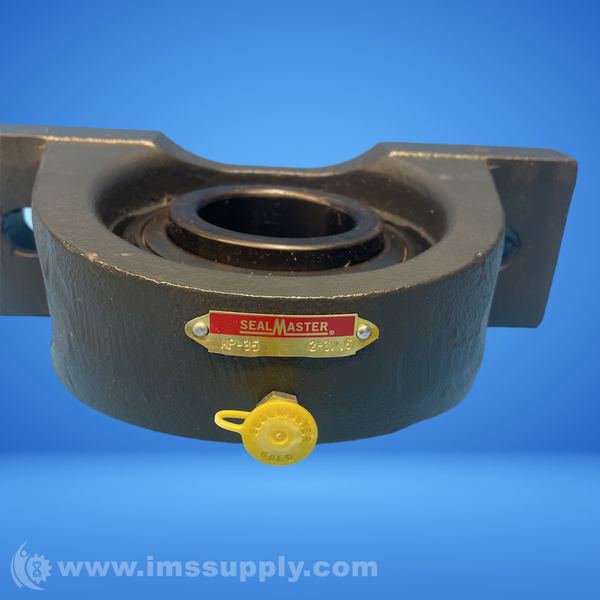

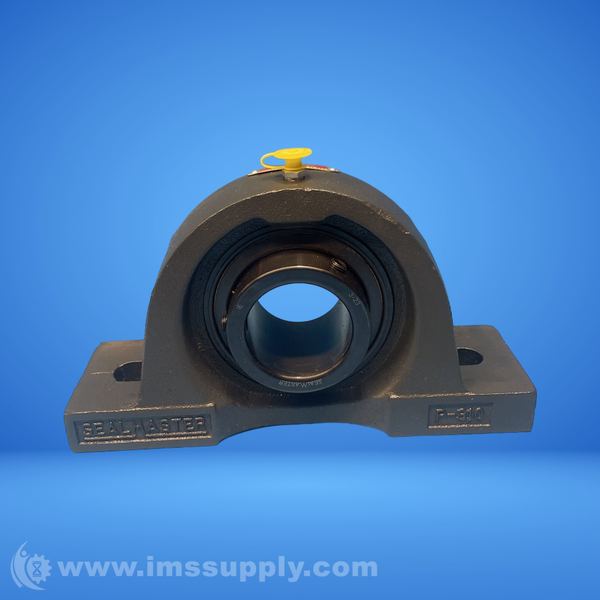

Sealmaster MP-35 Pillow Block Bearing
Pillow block ball bearing unit with 2-bolt base, 2-3/16 in bore, cast iron housing, and felt labyrinth seal.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 2-3/16 in
- Bolt Center To Center Length: 6.5630 to 7.9380 in
- Base To Bore Centerline: 2.7500 in
- Duty Type: Medium Duty
- Locking Device: Set Screw
- Seal Type: Felt Labyrinth Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 5.6250 in
- Overall Length: 10.2500 in
- Base Width: 3.1250 in
- Overall Width: 2.5625 in
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bolt Size: 0.7500 in
- Max Operating Temperature: 220 F
- Radial Dynamic Load Capacity: 11789 lbf
- Radial Static Load Capacity: 8150 lbf
- Max Rpm: 3000 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Misalignment Angle: ±2.0 degrees Misalignment - Static Only
- Type Of Bearing: Ball Bearing
- Weight: 15.77 lbs

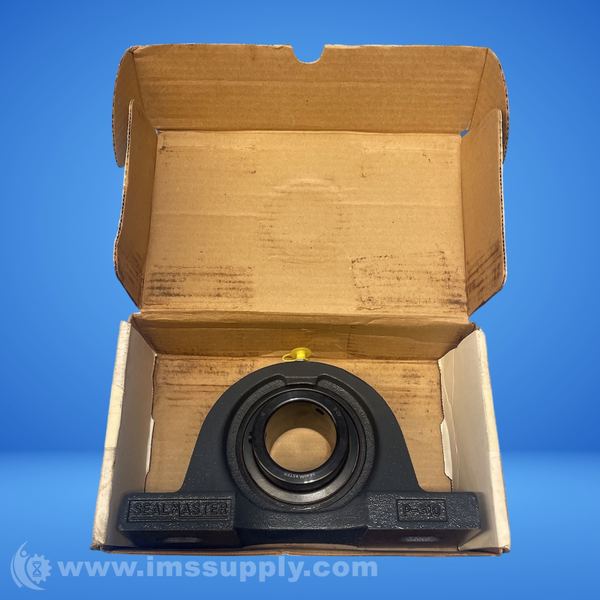

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 20 minutes.
