SEALMASTER MPD-35 PILLOW BLOCK BEARING
Quick Overview
Brand: SEALMASTER
Part Number: MPD-35
IMS Product Code: 1809163
Packaging: Sold Individually
Description:

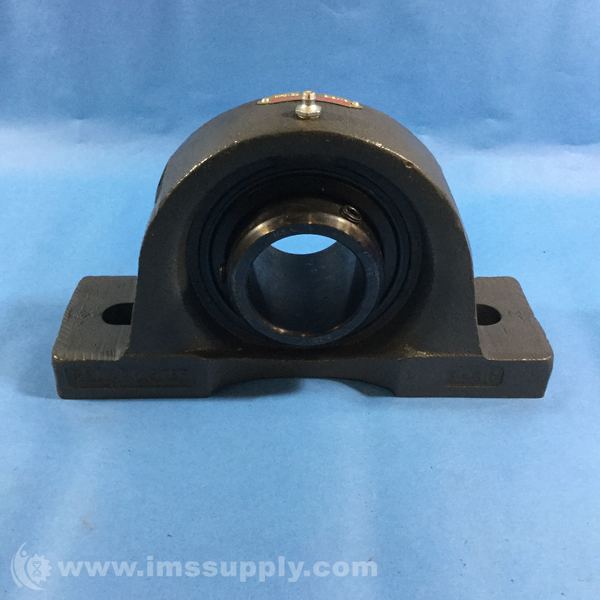

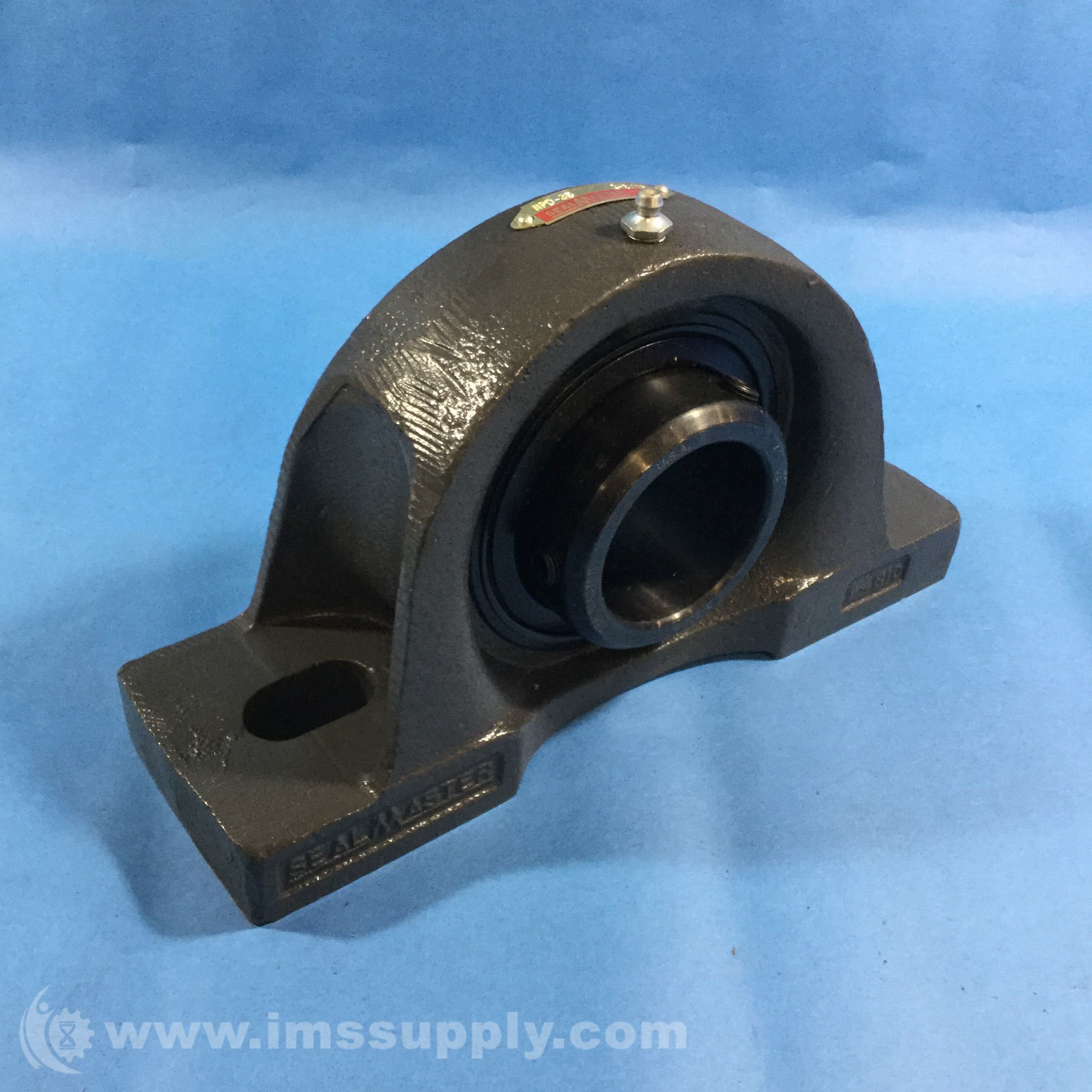

Sealmaster MPD-35 Pillow Block Bearing
Cast iron two bolt pillow block ball bearing with 52100 bearing steel and black oxide coating, double setscrew lock, and felt labyrinth seal.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 2-3/16 in
- Bolt Center To Center Length: 6.5625 to 7.9375 in
- Base To Bore Centerline: 2.7500 in
- Duty Type: Medium Duty
- Locking Device: Double Setscrew Collar
- Seal Type: Felt Labyrinth Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 5.6250 in
- Overall Length: 10.2500 in
- Base Width: 3.1250 in
- Overall Width: 3.1250 in
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bolt Size: 0.7500 in
- Max Operating Temperature: 220 F
- Radial Dynamic Load Capacity: 11789 lbf
- Radial Static Load Capacity: 8150 lbf
- Max Rpm: 4100 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: Medium

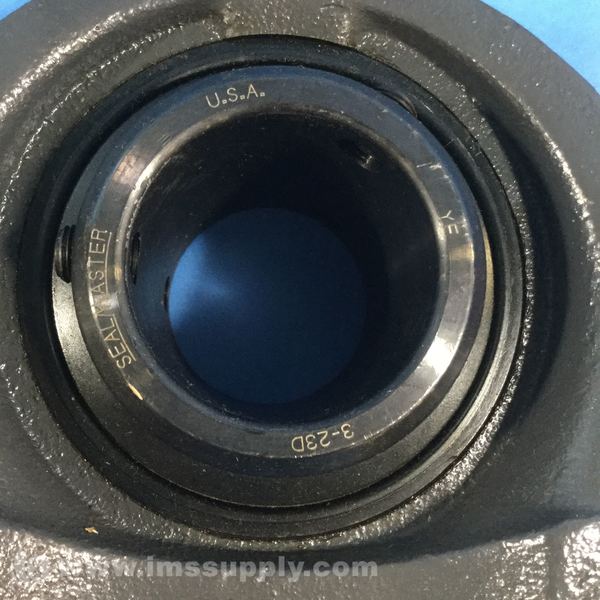

- Replacement Bearing: 3-23D
- Misalignment Angle: �2.0� Misalignment - Static Only
