SEALMASTER MSF-19 FOUR-BOLT FLANGE BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: MSF-19
IMS Product Code: 2163430
Packaging: Sold Individually
Description:

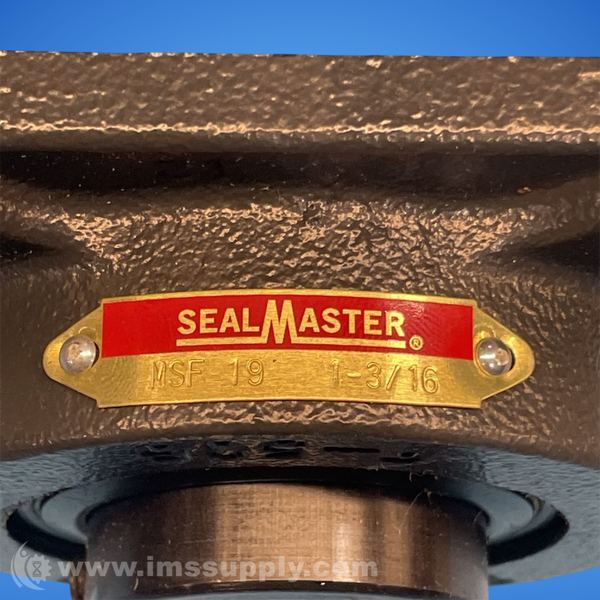

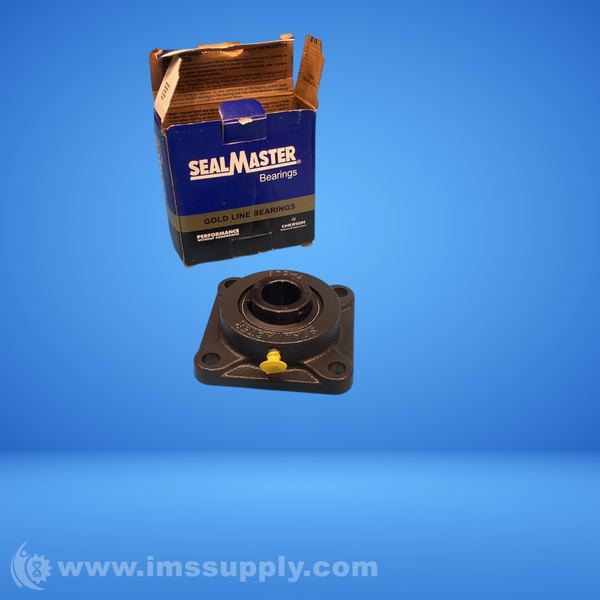

Sealmaster MSF-19 Four-Bolt Flange Ball Bearing
Four-Bolt Flange Ball Bearing Unit with 1.1875 in Bore, Cast Iron Housing, Set Screw Locking
Specifications
- Bearing Type: Ball
- Bore Diameter: 1.1875 in
- Housing Material: Cast Iron
- Duty Type: Medium Duty
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Felt Labyrinth Seal
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Bore Type: Straight
- Bearing Material: 52100 Bearing Steel, Black Oxided
- Coating: Powder Coated
- Operating Temperature Range: -20 to 220 degrees F
- Max Operating Temperature: 220 degrees F
- Bolt Size: 0.5000 in
- Max Rpm: 4650 rpm
- Series: MSF
- Dynamic Load Capacity: 5782 lbf
- Misalignment Angle: Static Only - �2.0 degrees
- Relubricatable: Yes
- Self Aligning: Yes
- Weight: 3.93 lbs
- Static Load Capacity: 3493 lbf
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
