SEALMASTER MSPD-35 PILLOW BLOCK BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: MSPD-35
IMS Product Code: 2038793
Packaging: Sold Individually
Description:

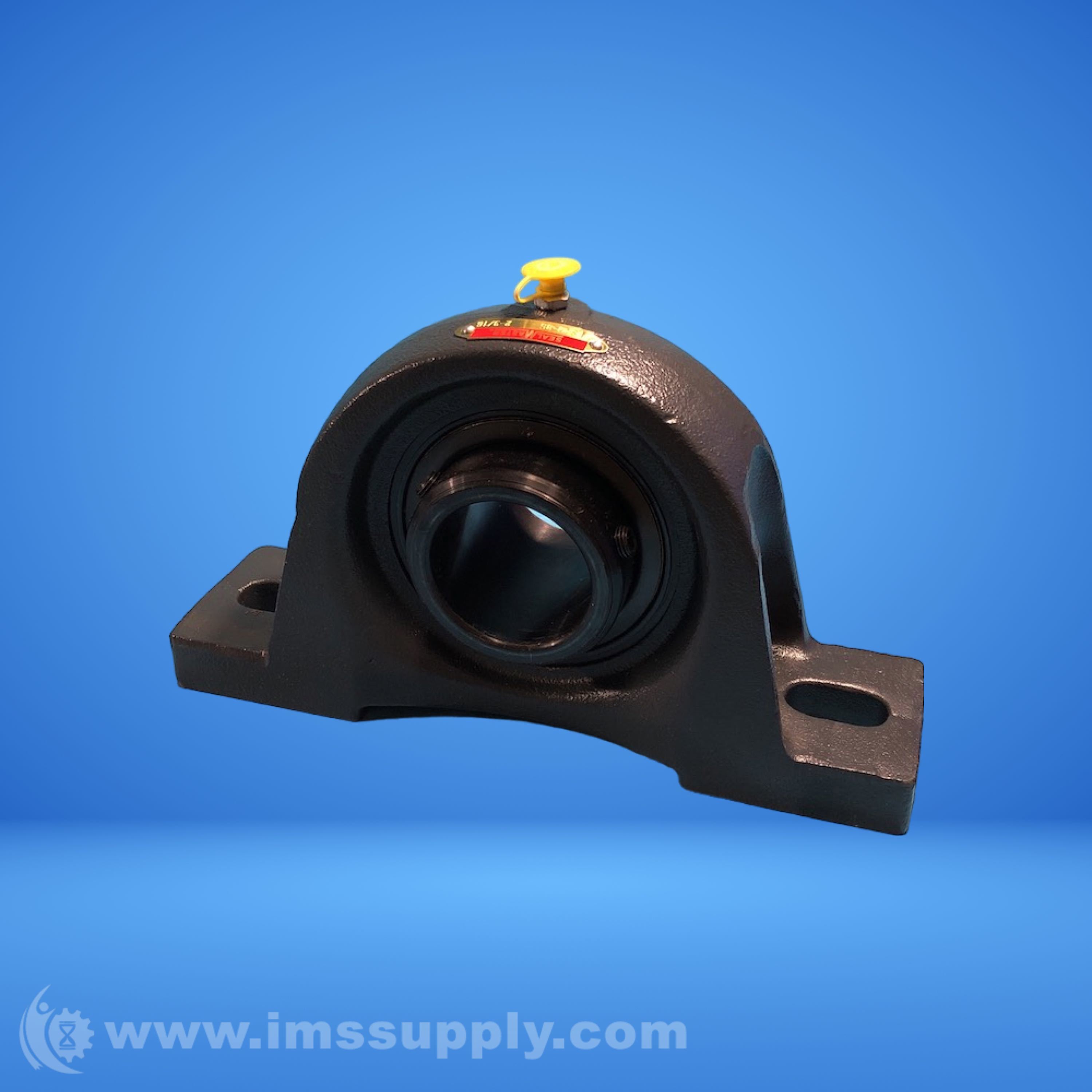

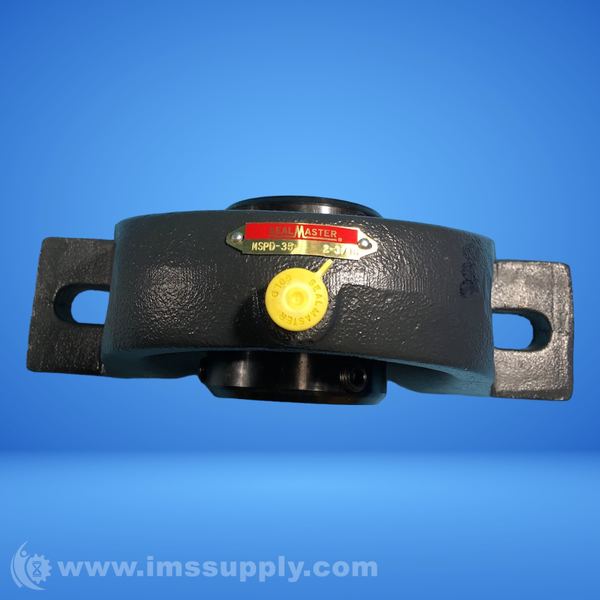

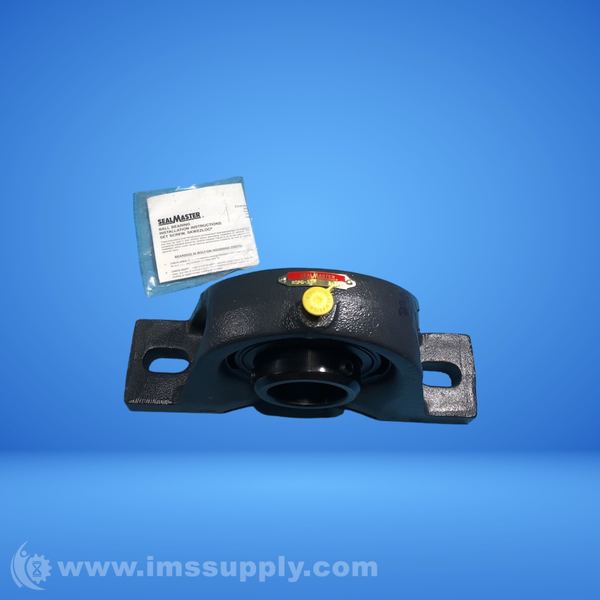

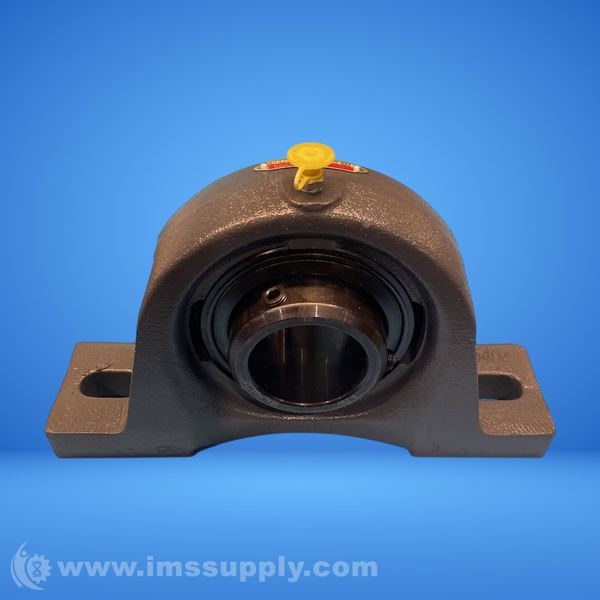

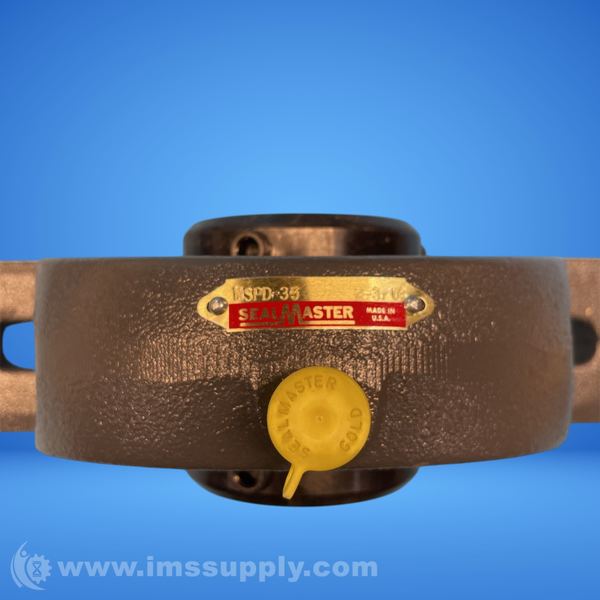

Sealmaster MSPD-35 Pillow Block Ball Bearing
Pillow Block Ball Bearing Unit - 2-Bolt Base, 2-3/16 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed)
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round / Straight
- Bore Diameter: 2-3/16 in
- Bolt Center To Center Length: 7.8750 to 9.3750 in
- Base To Bore Centerline: 3.1250 in
- Duty Type: Medium Duty
- Locking Device: Double Setscrew Collar
- Seal Type: Felt Labyrinth Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 6.0625 in
- Overall Length: 10.8750 in
- Base Width: 2.7500 in
- Overall Width: 3.1250 in
- Finish Coating: Gray
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bolt Size: 0.6250 in
- Max Operating Temperature: 220 °F
- Radial Dynamic Load Capacity: 11789 lbf
- Radial Static Load Capacity: 8150 lbf
- Max Rpm: 4100 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: Medium
- Replacement Bearing: 3-23D
- Misalignment Angle: ±2.0° Misalignment - Static Only
- Type Of Bearing: Ball Bearing
- Weight: 16.69 lbs
- Locking Type: Double Setscrew Collar
- Number Of Mounting Holes: 2
- Ability to Relubricate: Yes
- Cage Material: PPS - Polyphenylene Sulfide
- Cage Type: Land Riding Retainer
- Centerline to Outermost Bearing Face: 1.563 in
- Grease Fitting Thread Size: 1/8 NPT
- Foot Height: 0.94 in
- Length Through Bore: 3.125 in
- Inner Race Heat Treat Method: Zone-Hardened
- Inner Ring OD: 2.984 in
- Radial Clearance: Standard
- Setscrew Torque: 230-300 in-lbs
- Shaft Locking Type: Double Set Screw
- Size Code: 2-27
- Misalignment Capability: ±2.0° Misalignment - Static Only
- Misalignment Type: Static Only
- Outer Ring Land Profile: Standard
- Housing Base: Solid
- Housing Construction: One Piece
- Housing Style: Pillow Block
- Housing Coating: Powder Coated
- Housing Color: Black
- End Cap: No
- Fixed vs. Expansion: Fixed
- Vibration Frequency Fundamental Train: 0.007
- Vibration Frequency Inner Ring Defect: 0.099
- Vibration Frequency Outer Ring Defect: 0.068
- Vibration Frequency Roller Spin: 0.043

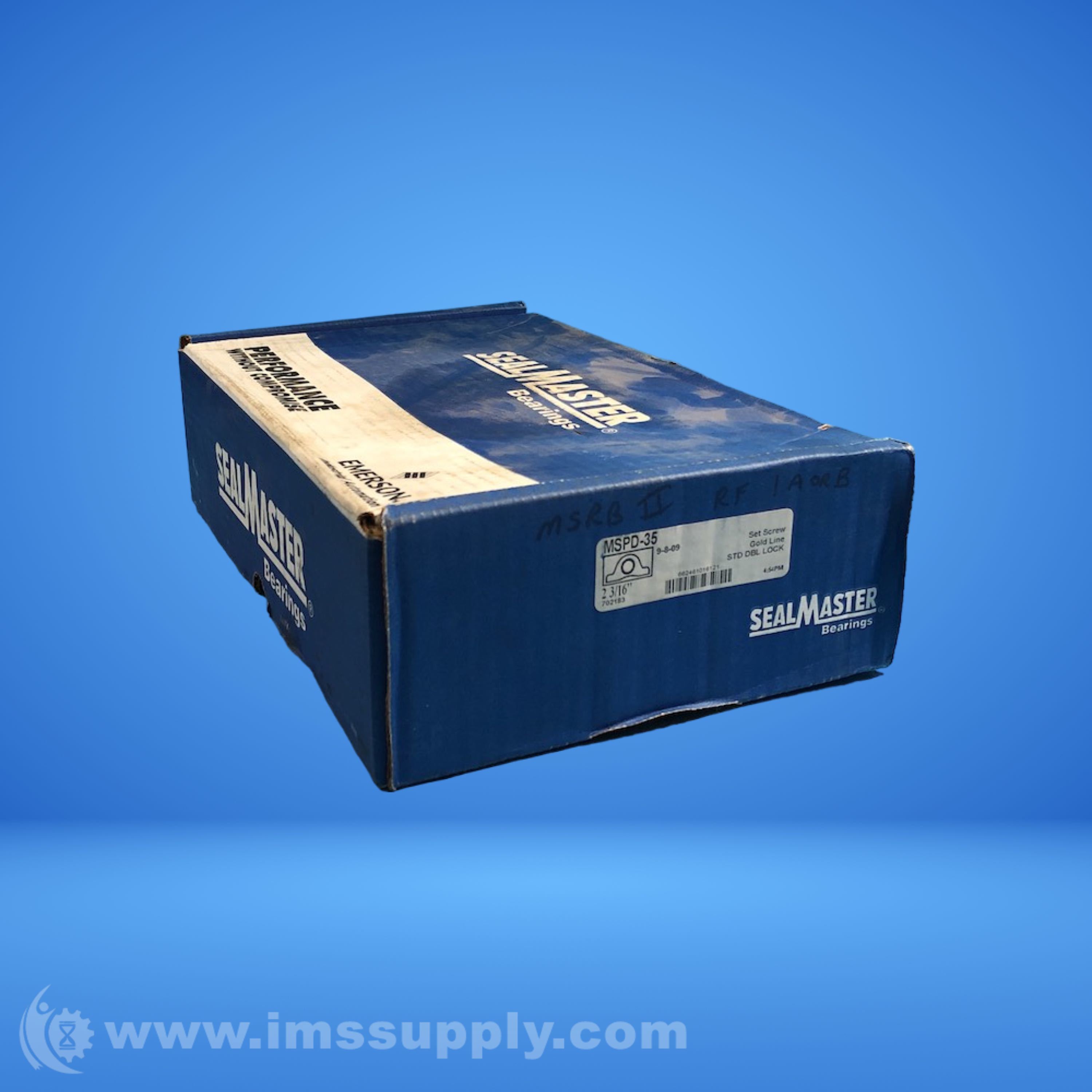

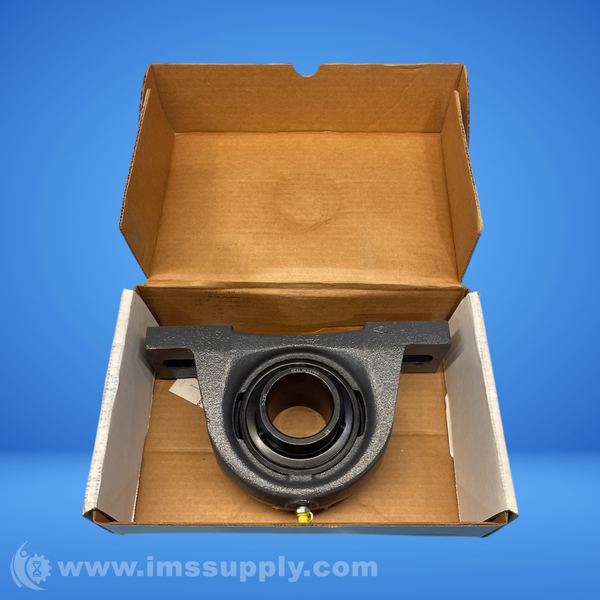

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 46 minutes.
New - Open Box (Special):

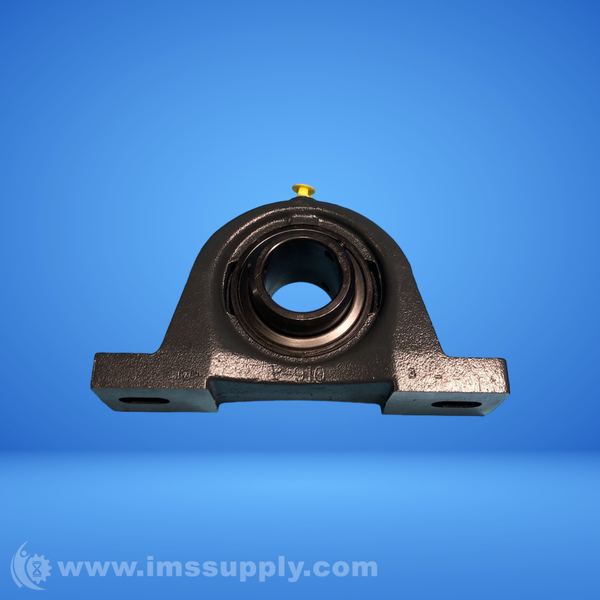

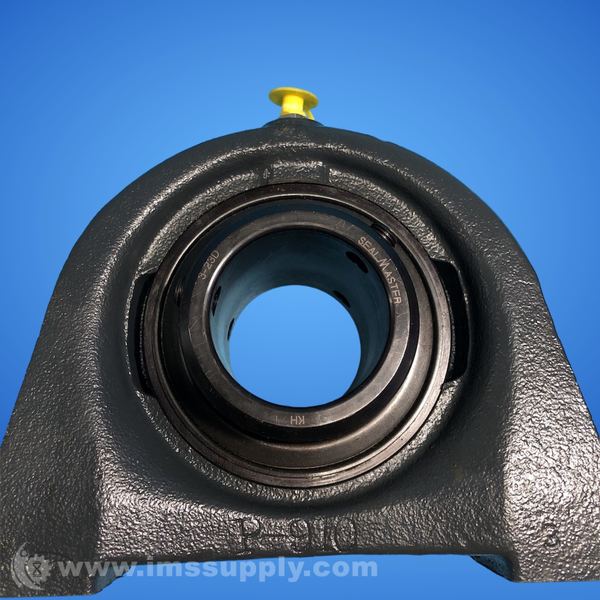

Comes with additional parts attached. Part # 3-23D and #P-910.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 46 minutes.
