SEALMASTER NP-10 PILLOW BLOCK BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: NP-10
IMS Product Code: 1806292
Packaging: Sold Individually
Description:

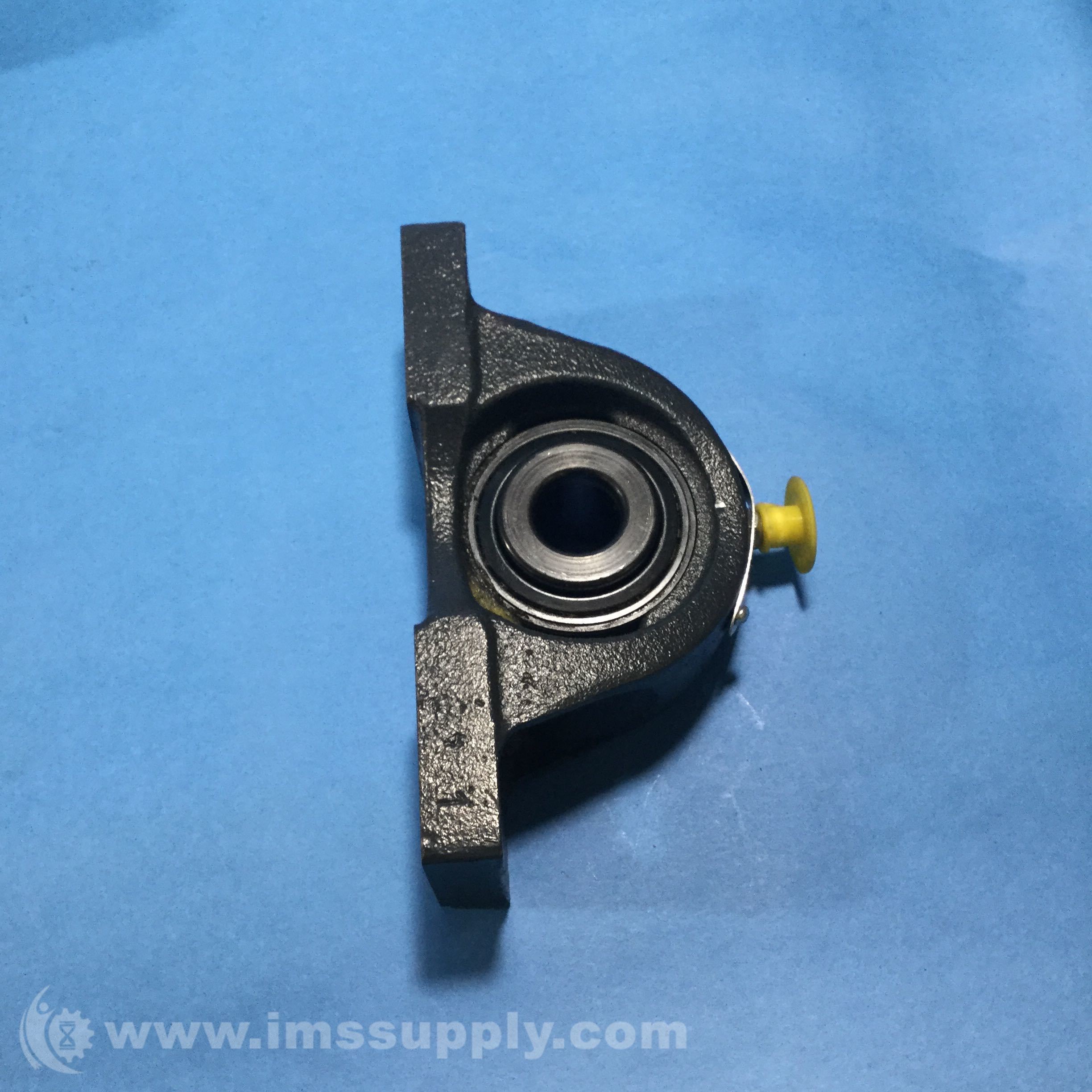

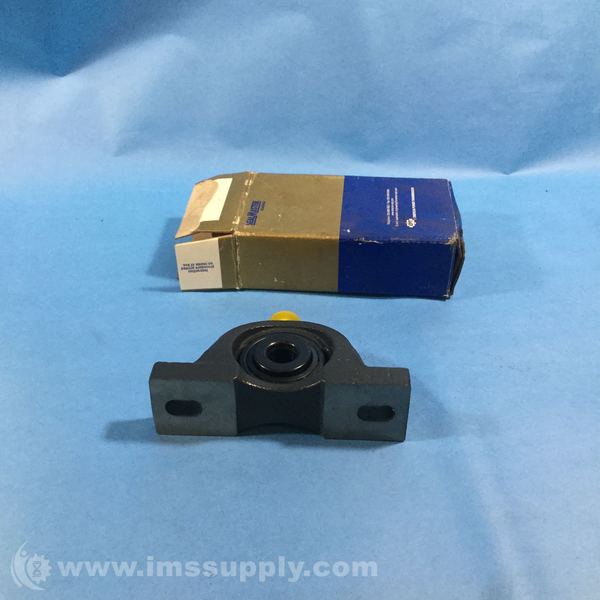

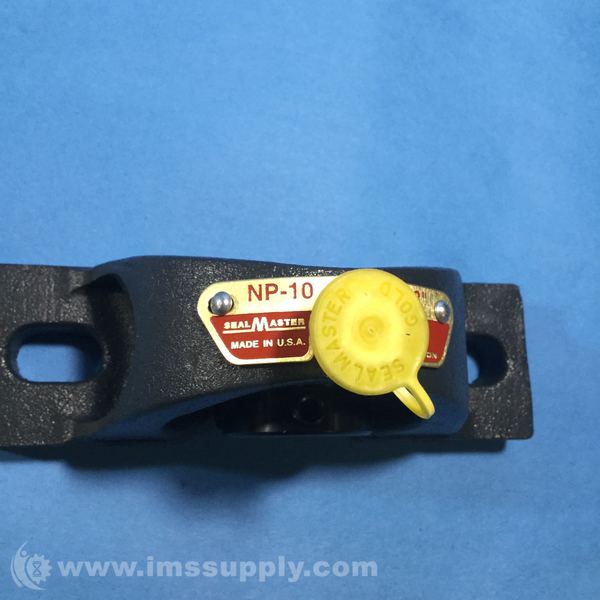

Sealmaster NP-10 Pillow Block Ball Bearing
Pillow block ball bearing unit with 2-bolt base, 5/8 in bore diameter, cast iron housing, and set screw locking type.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 5/8 in
- Bolt Center To Center Length: 3.3750 to 4.1250 in
- Base To Bore Centerline: 1.1875 in
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Felt Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 2.4375 in
- Overall Length: 5.0000 in
- Base Width: 1.5000 in
- Overall Width: 1.2188 in
- Bolt Size: .3750 in
- Seal Material: Felt
- Lubrication Type: Lubrication Fitting
- Series: NP
- Weight: 1.7 lbs
- Bearing Insert Type: Radial Ball
- Bearing Insert Material: Alloy Steel
- Bearing Material Grade: 52100
- Static Radial Load Capacity: 1,444 lbf
- Dynamic Radial Load Capacity: 2,611 lbf
- Maximum Misalignment Angle: 2 degrees
- Maximum Temperature: 220 F
- Minimum Temperature: -20 F
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
