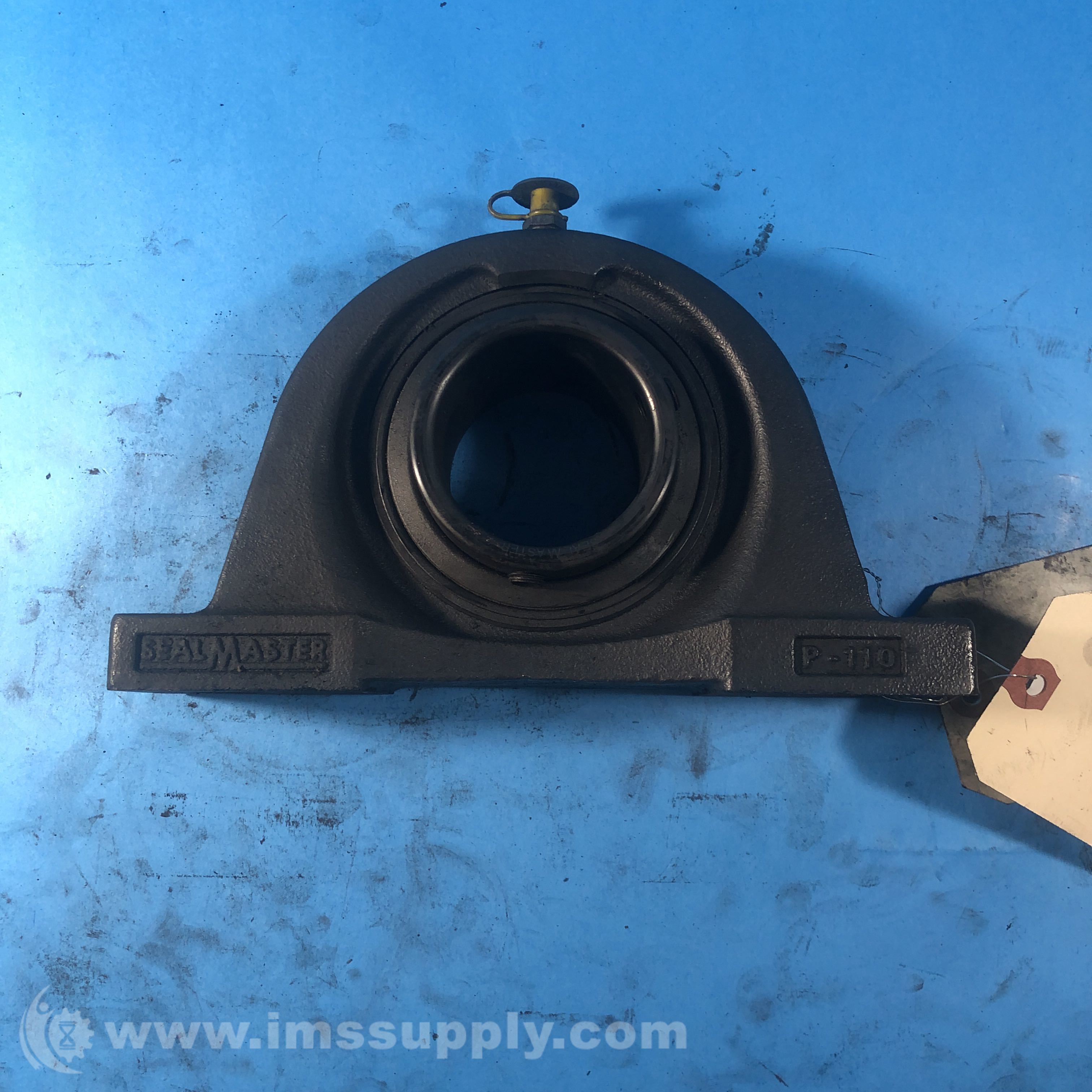

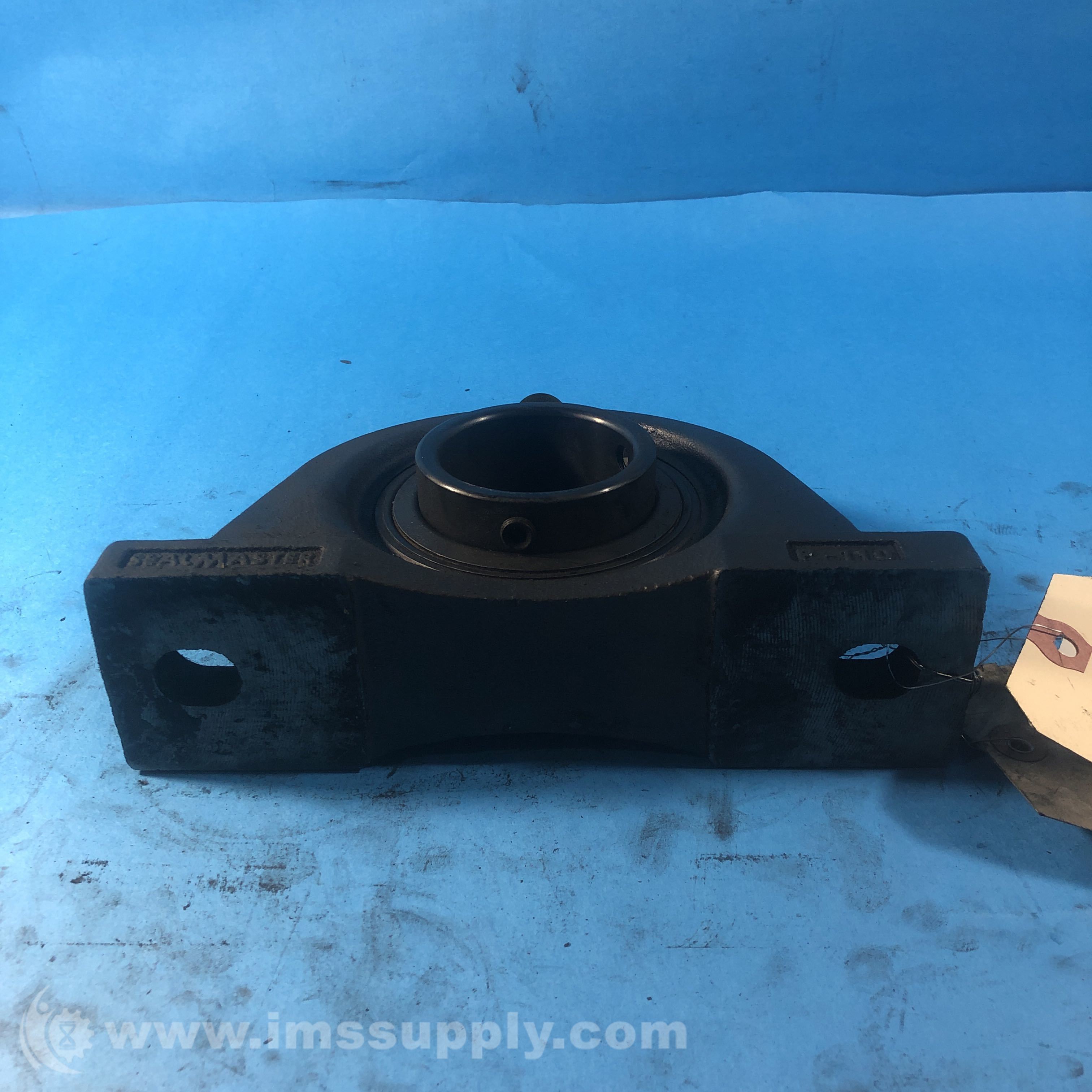

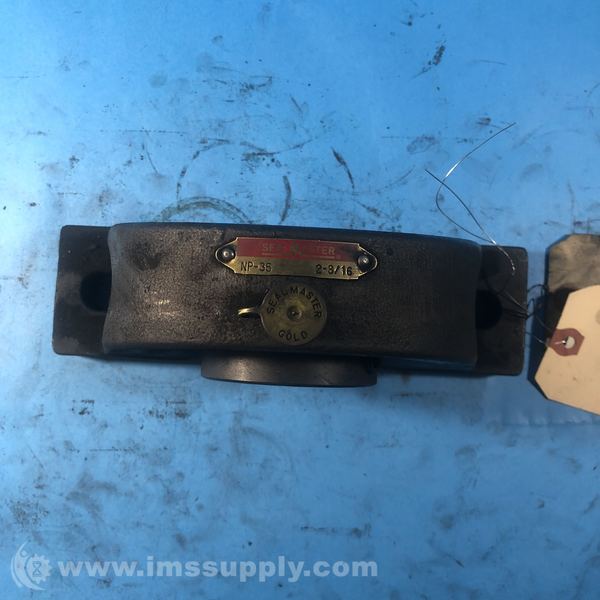

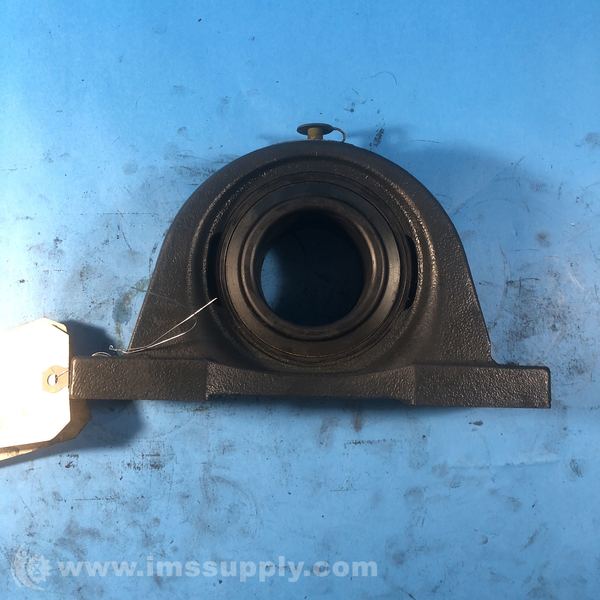

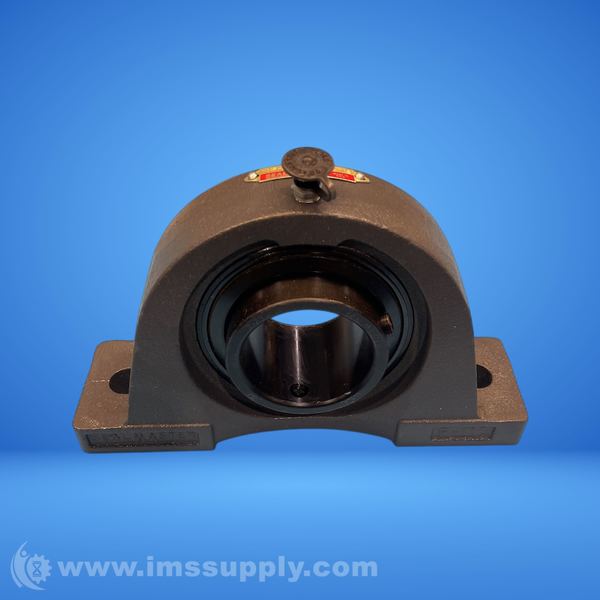

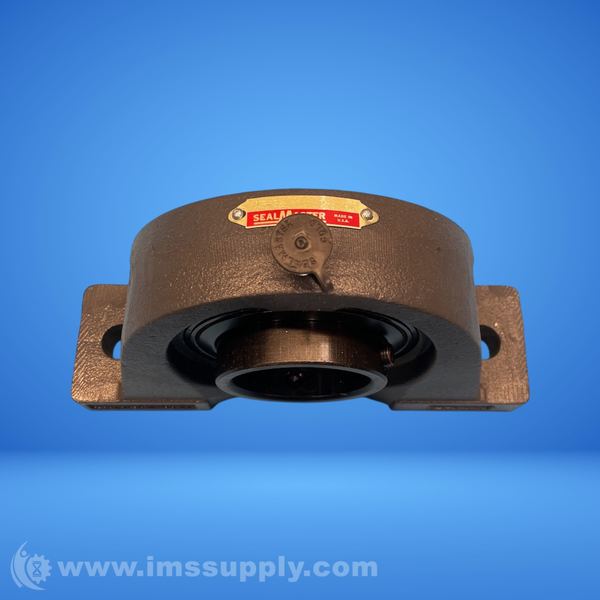

SEALMASTER NP-35 PILLOW BLOCK BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: NP-35
IMS Product Code: 1999149
Packaging: Sold Individually
Description:
Sealmaster NP-35 Pillow Block Ball Bearing
Pillow Block Ball Bearing Unit - 2-Bolt Base, 2-3/16 in Bore, Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Bore Diameter: 2-3/16 in
- Bolt Center To Center Length: 6.5000 to 7.0000 in
- Base To Bore Centerline: 2.5000 in
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Felt Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 5.0000 in
- Overall Length: 8.6250 in
- Base Width: 2.3750 in
- Overall Width: 1.2188 in
- Finish Coating: Uncoated
- Bolt Size: .6250 in
- Seal Material: Felt
- Lubrication Type: Lubrication Fitting
- Series: NP
- Weight: 9.7 lbs
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
- Ability to Relubricate: Yes
- Base Length (in): 8.63
- Base to Center Height (in): 2.5
- Base Width (in): 2.38
- Bearing Insert Finish: Black Oxide
- Bearing Insert Material: 52100 Bearing Steel
- Bolt Size (in): 5/8
- Bolt Spacing Max (in): 7
- Bolt Spacing Min (in): 6.5
- Bore Diameter (in): 2.1875
- Bore Shape: Straight
- Cage Material: PPS - Polyphenylene Sulfide
- Cage Type: Land Riding Retainer
- Centerline to Outermost Bearing Face (in): 1.313
- Dynamic Load Rating (lb): 9752
- End Cap: No
- Fixed vs. Expansion: Fixed
- Foot Height (in): 0.75
- Grease Fitting Thread Size: 1/8 NPT
- Height: 2.63
- Housing: Pillow Block, Two Bolt
- Housing Base: Solid
- Housing Construction: One Piece
- Housing Style: Pillow Block
- Inner Race Heat Treat Method: Zone-Hardened
- Inner Ring OD (in): 2.719
- Insert: 2-23
- Length: 8.88
- Length Through Bore (in): 2.188
- Lubricant: Lithium Complex NLGI 2 Grease
- Max Operating Temperature (F): 220
- Maximum Speed (RPM): 3250
- Misalignment Capability: ±2.0° Misalignment - Static Only
- Misalignment Type: Static Only
- Outer Ring Land Profile: Standard
- Radial Clearance: Standard
- Rolling element: Ball Bearing
- Seal: Felt Labyrinth Seal
- Shaft Locking Type: Set Screw
- Size Code: 2-23
- Static Load Rating (lb): 6601
- Vibration Frequency Fundamental Train: 0.007
- Vibration Frequency Inner Ring Defect: 0.099
- Vibration Frequency Outer Ring Defect: 0.068
- Vibration Frequency Roller Spin: 0.044

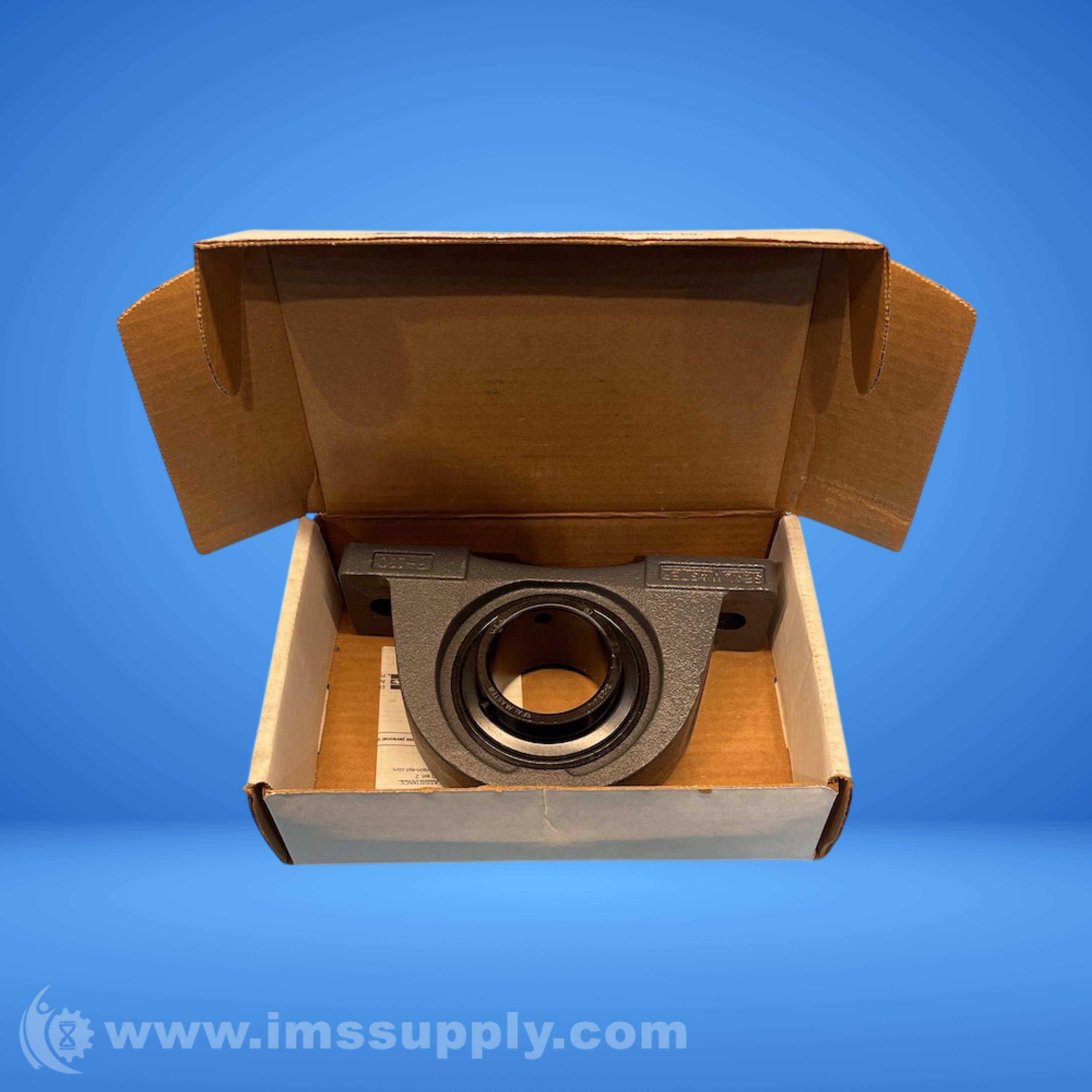

New - Open Box:
