SEALMASTER NP-39 PILLOW BLOCK BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: NP-39
IMS Product Code: 2038822
Packaging: Sold Individually
Description:

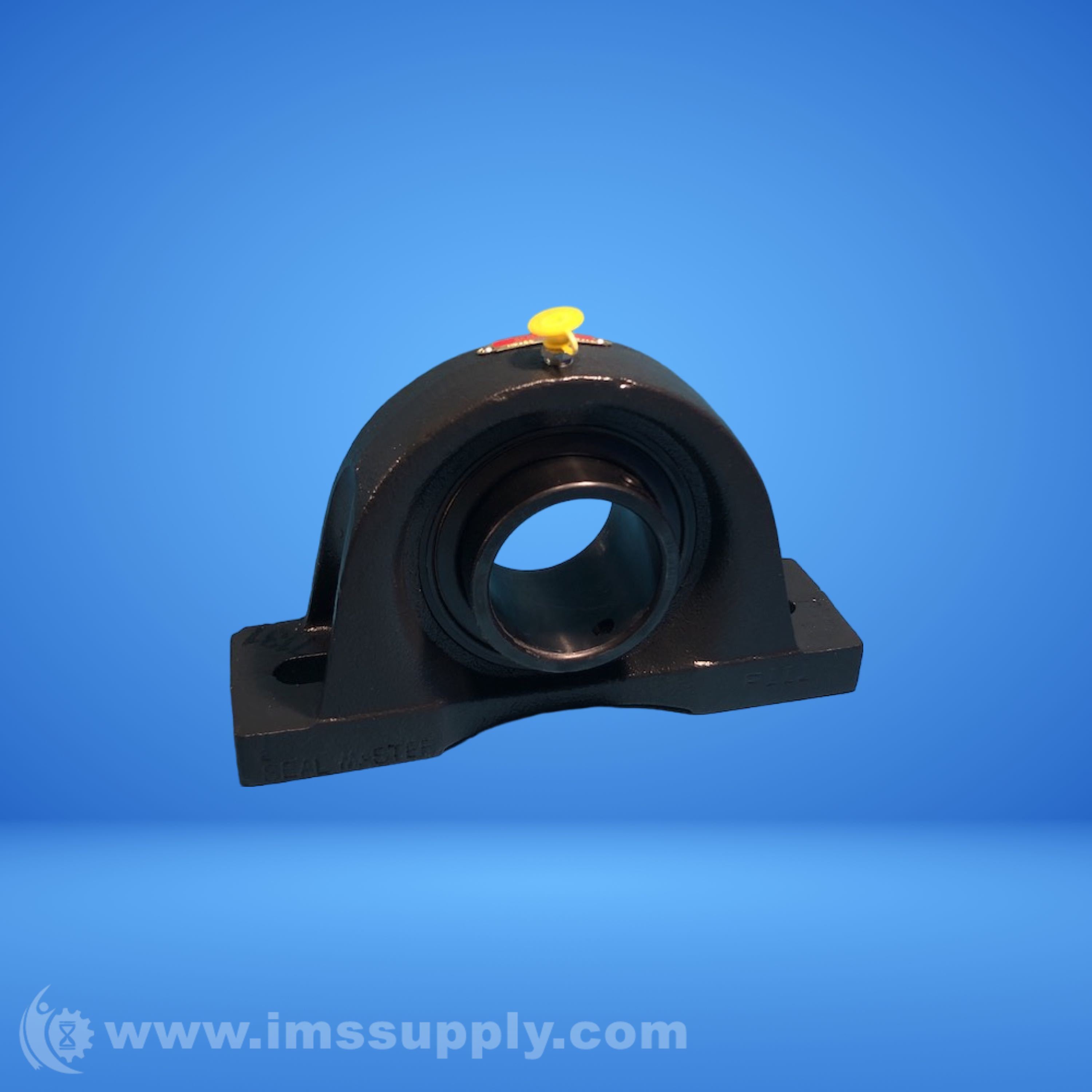

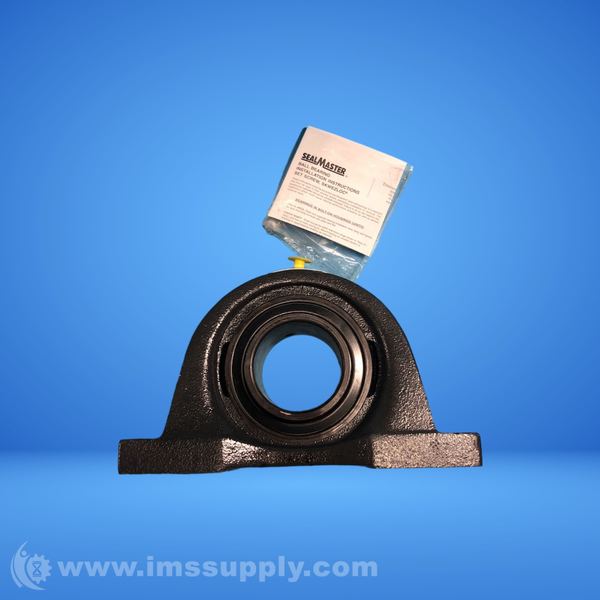

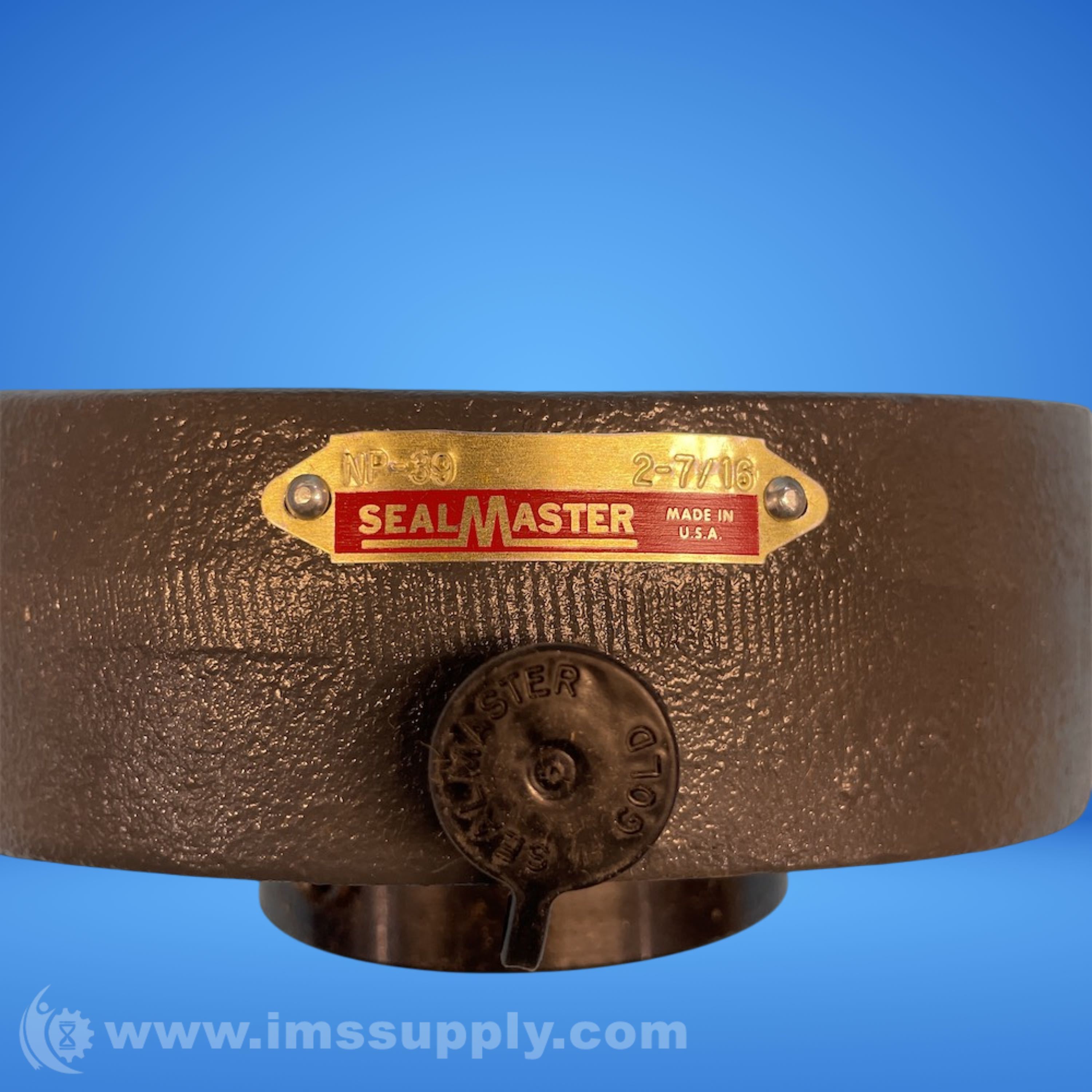

Sealmaster NP-39 Pillow Block Ball Bearing
Pillow block ball bearing unit with 2-bolt base, 2-7/16 inch bore diameter, cast iron housing, and set screw locking device.
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Bore Diameter: 2-7/16 in
- Bolt Center To Center Length: 6.8750 to 7.6250 in
- Base To Bore Centerline: 2.7500 in
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Felt Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 5.5625 in
- Overall Length: 9.5000 in
- Base Width: 2.7500 in
- Overall Width: 2.5625 in
- Finish Coating: Uncoated
- Bolt Size: .6250 in
- Seal Material: Felt
- Lubrication Type: Lubrication Fitting
- Series: NP
- Replacement Bearing: 2-27
- Weight: 13.7 lbs
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
- Bearing Insert Type: Radial Ball
- Bearing Insert Material: Alloy Steel
- Bearing Material Grade: 52100
- Shaft Locking Type: Set Screws
- Mounting Surface to Shaft Center Height: 2-3/4 in
- Mount Hole Center-to-Center Length: 7-5/8 in
- Base Height: 0.88 in
- Mount Type: Bolt-Through
- Mounting Bolt Size: 5/8 in
- Housing Material Finish: Black Oxide
- Static Radial Load Capacity: 8,150 lbf
- Dynamic Radial Load Capacity: 11,789 lbf
- Maximum Misalignment Angle: 2 degrees
- Closure: Double Sealed
- Lubricant Material: NGLI #2 Equivalent
- Maximum Temperature: 220 °F
- Minimum Temperature: -20 °F
- Ability to Relubricate: Yes
- Bearing Insert Finish: Black Oxide
- Cage Material: PPS - Polyphenylene Sulfide
- Cage Type: Land Riding Retainer
- Centerline to Outermost Bearing Face: 1.563 in
- Dynamic Load Rating: 11,789 lb
- End Cap: No
- Fixed vs. Expansion: Fixed
- Foot Height: 0.88 in
- Grease Fitting Thread Size: 1/8 NPT
- Housing Base: Solid
- Housing Coating: Powder Coated
- Housing Color: Black
- Housing Construction: One Piece
- Housing Style: Pillow Block
- Inner Race Heat Treat Method: Zone-Hardened
- Inner Ring OD: 2.984 in
- Insert: 2-27
- Length Through Bore: 2.563 in
- Lubricant: Lithium Complex NLGI 2 Grease
- Max Operating Temperature: 220 F
- Maximum Speed: 3000 RPM
- Misalignment Capability: ±2.0° Misalignment - Static Only
- Misalignment Type: Static Only
- Outer Ring Land Profile: Standard
- Radial Clearance: Standard
- Rolling element: Ball Bearing
- Seal: Felt Labyrinth Seal
- Setscrew Torque: 230-300 in-lbs
- Size Code: 2-27
- Static Load Rating: 8,150 lb

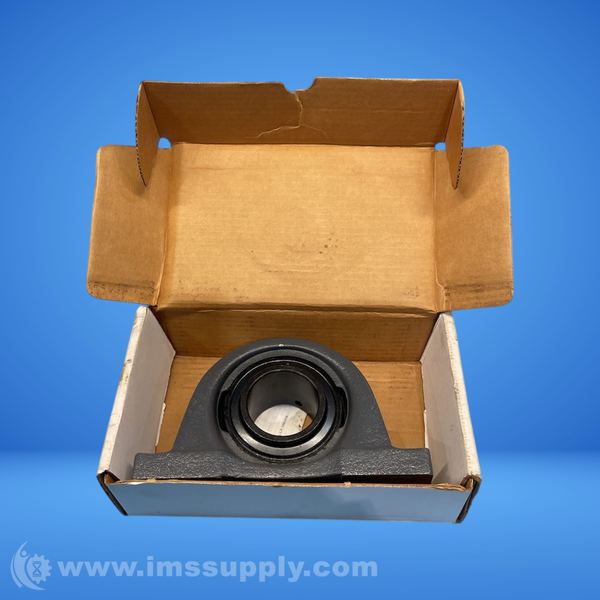

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 46 minutes.
