SEALMASTER SC-24 BALL BEARING CARTRIDGE
Quick Overview
Brand: SEALMASTER
Part Number: SC-24
IMS Product Code: 2153020
Packaging: Sold Individually
Description:

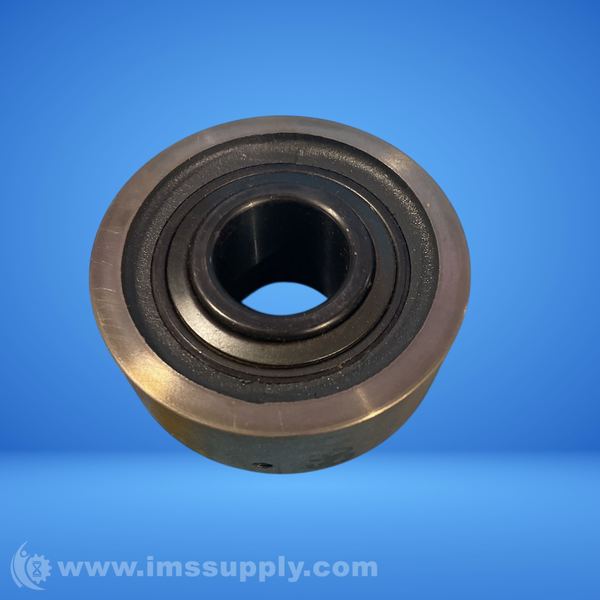

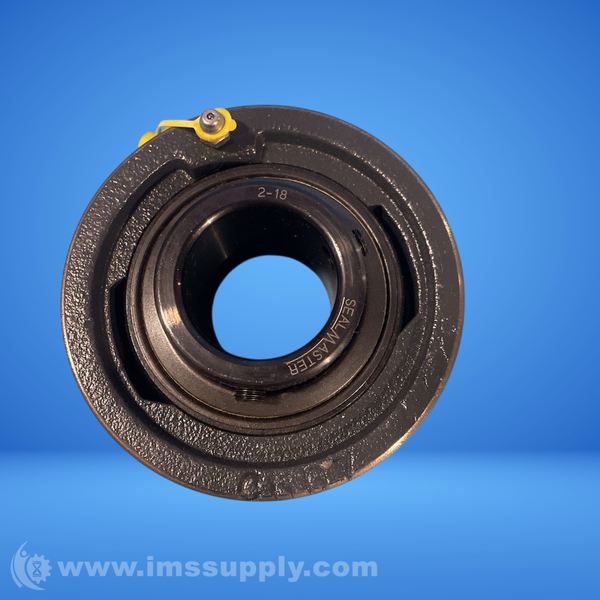

Sealmaster SC-24 Ball Bearing Cartridge
700328 Ball Bearing Cartridge - 1.5000 in Bore , 4.1875 in OD, 1.4687 in Housing Width, Cast Iron, Set Screw, Standard Duty
Specifications
- Bearing Material: 52100 Bearing Steel, Black Oxided
- Bore Diameter: 1.5000 in
- Bore Type: Cylindrical
- Cage Material: PPS
- Duty Type: Standard Duty
- Expansion Type: Non-Expansion Bearing (Fixed)
- Finish Coating: Black Oxide Coated
- Housing Construction: One Piece
- Housing Material: Cast Iron
- Housing Type: Cartridge, Cylindrical
- Housing Width: 1.4700 in
- Inner Ring Width: 1.9380 in
- Insert Material: 52100 Bearing Steel, Black Oxided
- Locking Device: Set Screw
- Lubrication: Lithium Complex NLGI 2 Grease
- Lubrication Type: Lubrication Fitting
- Max Rpm: 4150 rpm
- Operating Temperature Range: Max 220 °F
- Outside Diameter: 4.1880 in
- Overall Width: 1.9380 in
- Radial Dynamic Load Capacity: 7340 lbs
- Radial Static Load Capacity: 4467 lbs
- Replacement Bearing: 2-18
- Seal Type: Felt Labyrinth Seal
- Series: SC
- Weight: 3.96 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 50 minutes.
