SEALMASTER SF-12T FOUR-BOLT FLANGE BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: SF-12T
IMS Product Code: 2145163
Packaging: Sold Individually
Description:

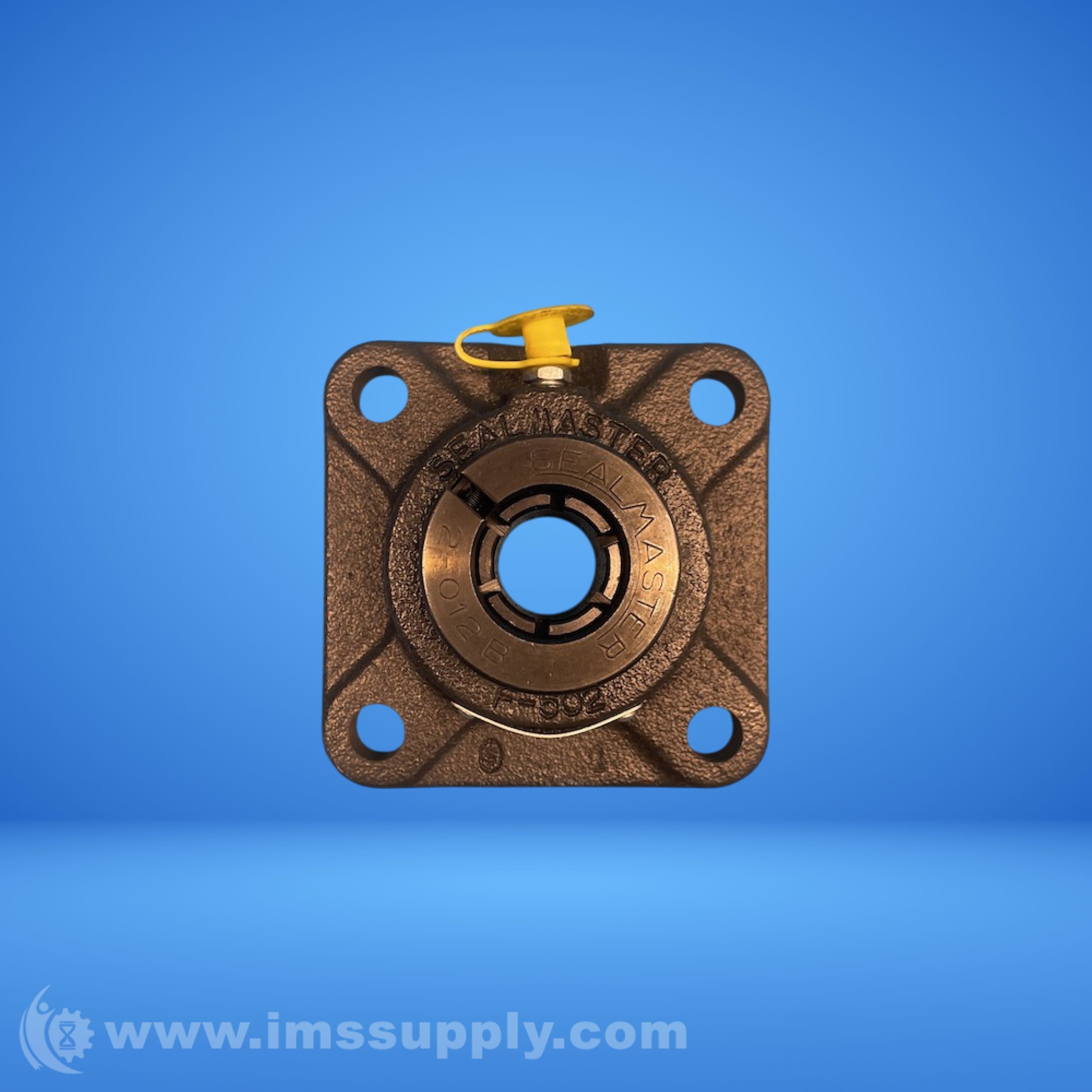

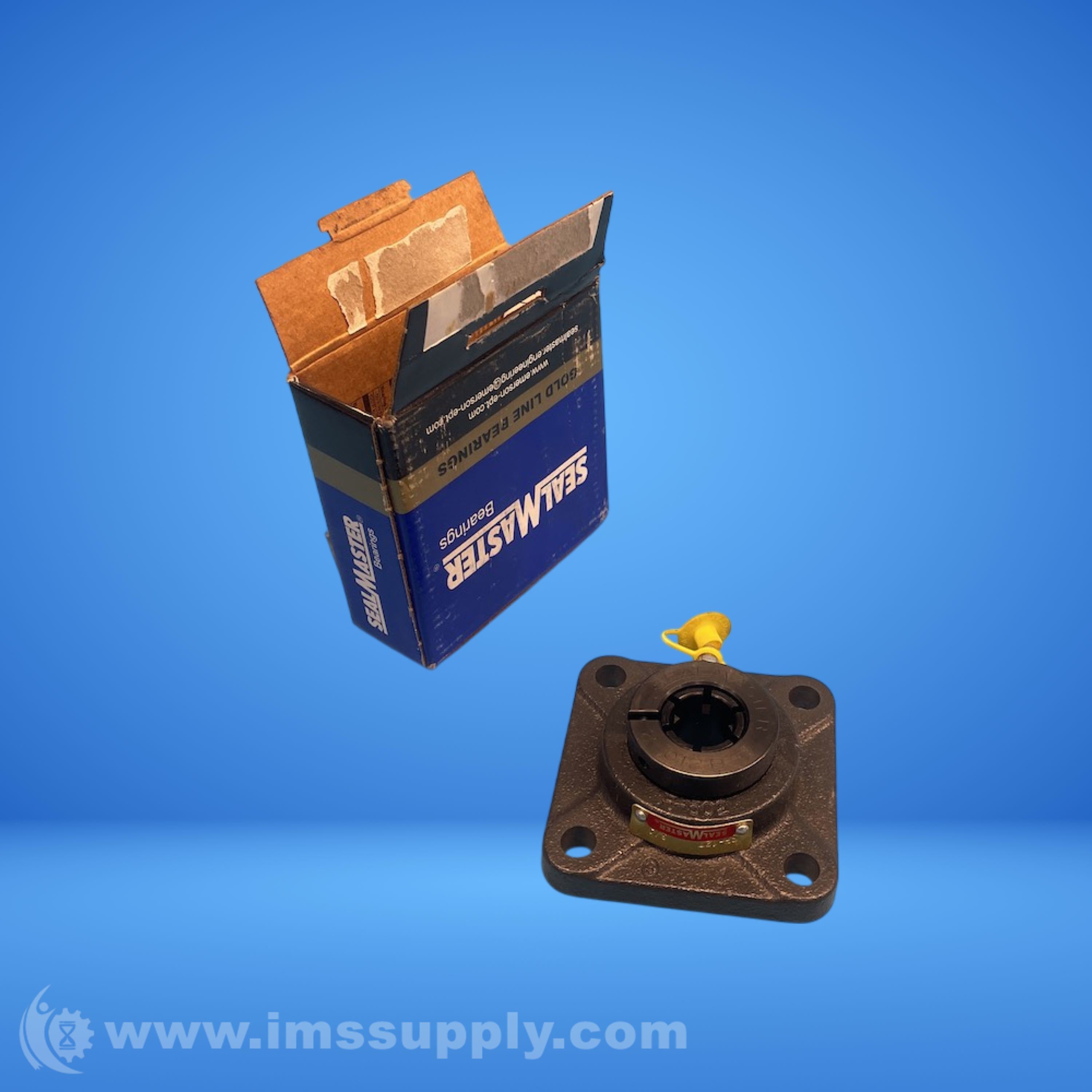

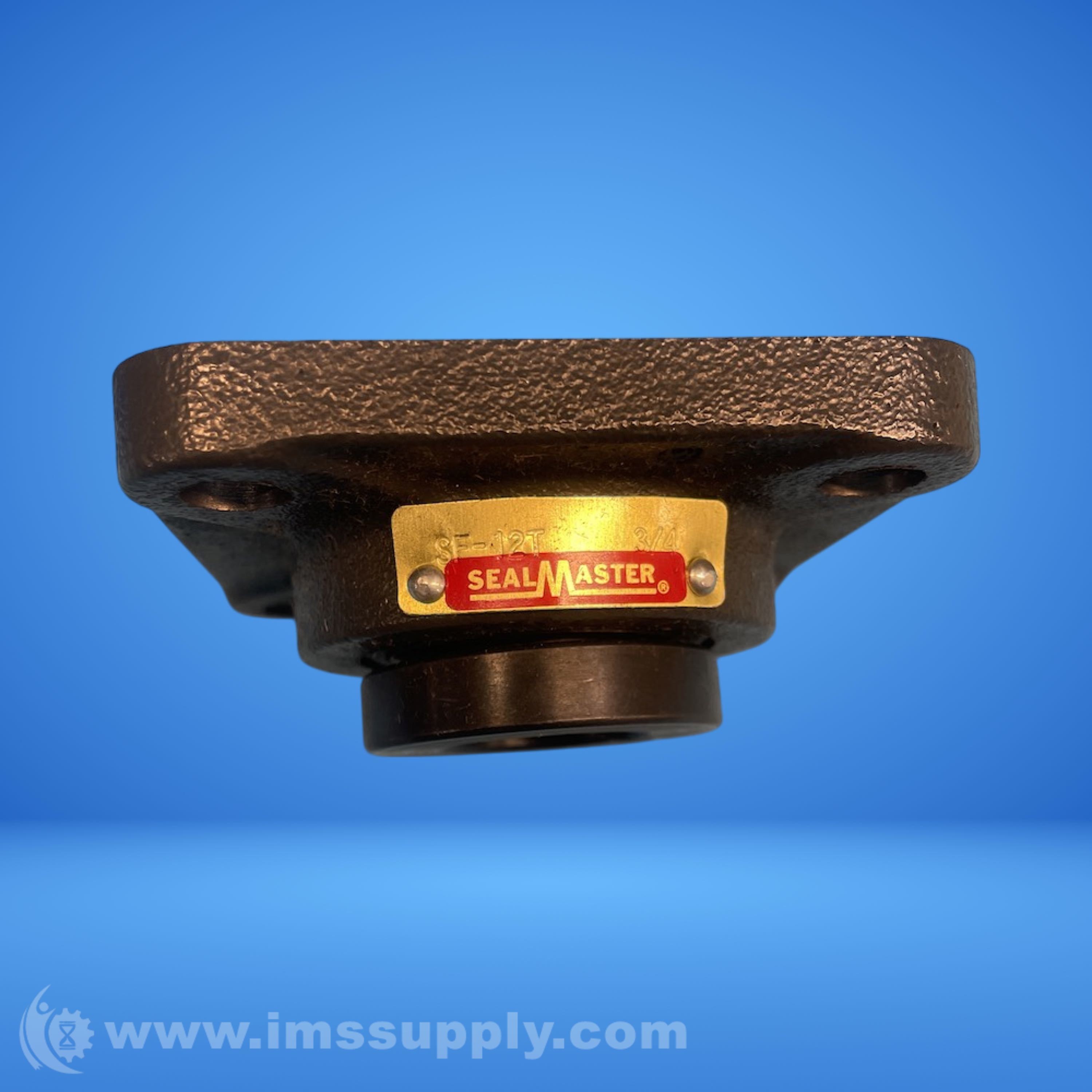

Sealmaster SF-12T Four-Bolt Flange Ball Bearing
Four-Bolt Flange Ball Bearing Unit with 3/4 in Bore, Cast Iron Housing, Concentric Collar Locking, Non-Expansion Bearing, Felt Labyrinth Seal
Specifications
- Bore Diameter: 3/4 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Concentric Collar
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Felt Labyrinth Seal
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Bore Type: Straight
- Bearing Material: 52100 Bearing Steel, Black Oxided
- Radial Dynamic Load Capacity: 2611 lbf
- Radial Static Load Capacity: 1444 lbf
- Operating Temperature Range: -20 to 220 degrees F
- Max Operating Temperature: 220 degrees F
- Bolt Size: 0.3750 in
- Max Rpm: 10200 rpm
- Series: SF
- Weight: 1.6 lbs
- Mounting Type: 4-Bolt Flange
- Cage Material: PPS - Polyphenylene Sulfide
- Misalignment Capability: ±2.0 degrees Misalignment - Static Only
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
