SEALMASTER SF-15 FOUR-BOLT FLANGE BALL BEARING UNIT
Quick Overview
Brand: SEALMASTER
Part Number: SF-15
IMS Product Code: 2038541
Packaging: Sold Individually
Description:

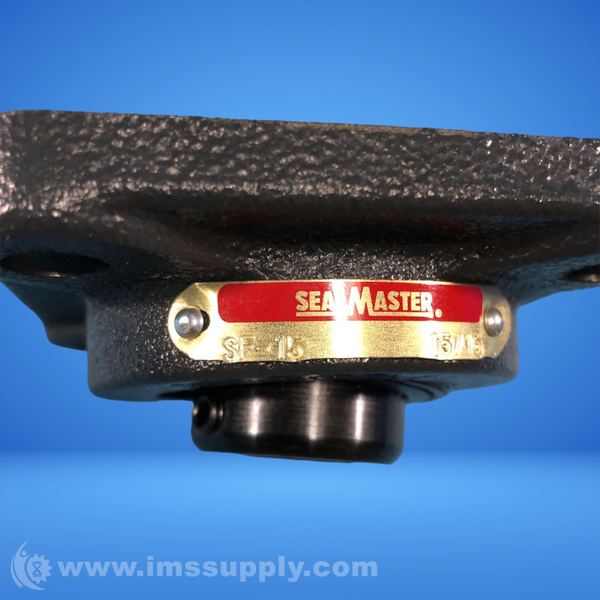

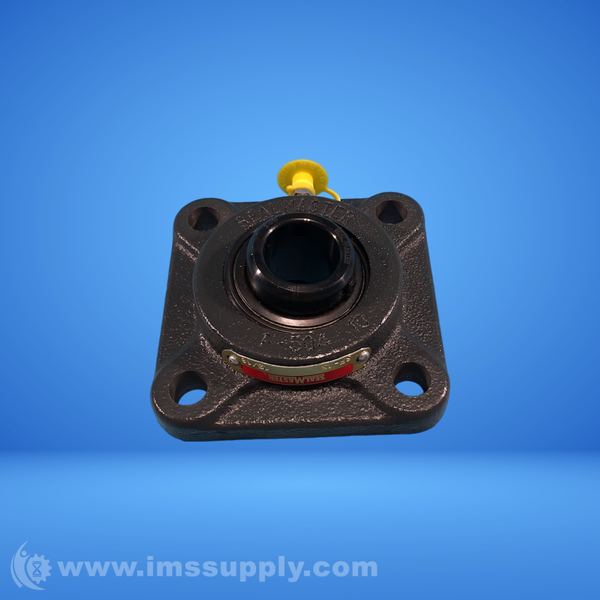

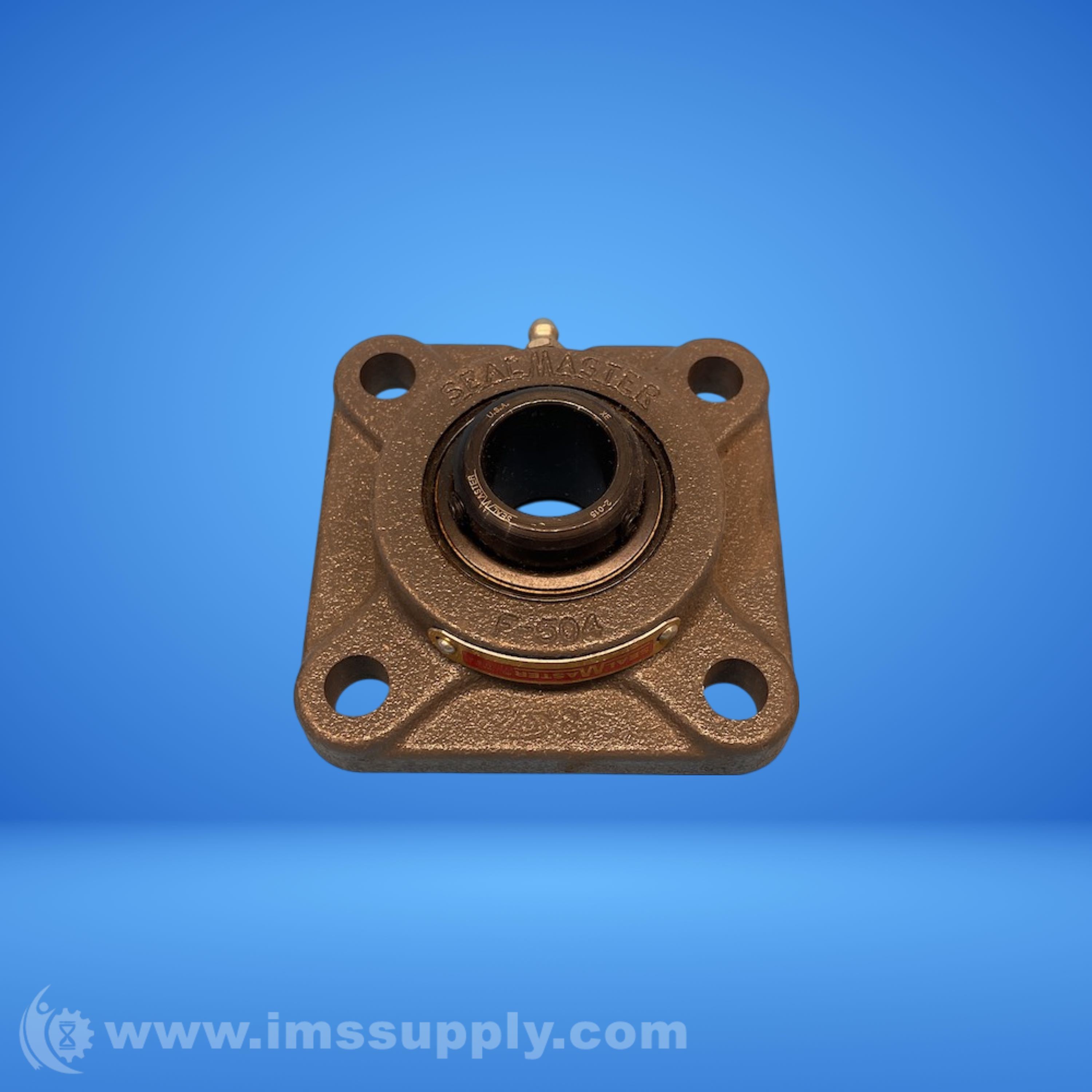

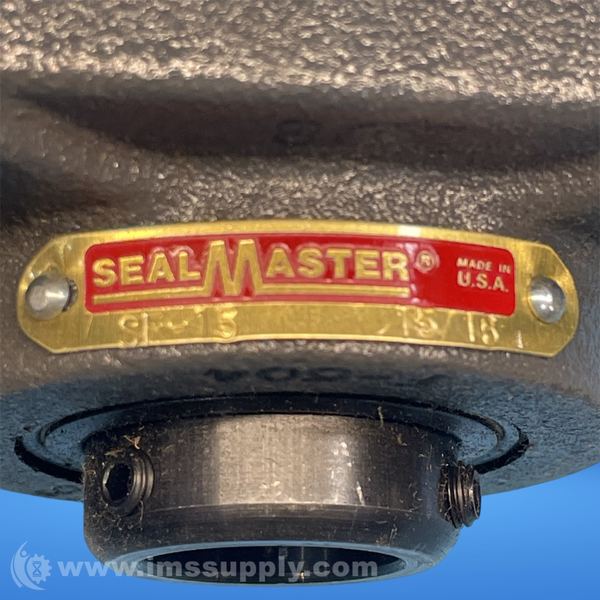

Sealmaster SF-15 Four-Bolt Flange Ball Bearing Unit
15/16 in Bore, 4-Bolt Flange, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Standard Duty, Felt Labyrinth Seal Seal
Specifications
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 15/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Center To Center Length: 2.7500 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Felt Labyrinth Seal
- Overall Length Diameter: 3.7500 in
- Overall Height: 1.4375 in
- Housing Width: 1.0313 in
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Bore Type: Straight
- Inner Ring Width: 1.3750 in
- Bearing Material: 52100 Bearing Steel, Black Oxided
- Length Through Bore: 1.3750 in
- Operating Temperature Range: -20 degrees to 220 degrees F
- Max Operating Temperature: 220 degrees F
- Finish Coating: Gray
- Bolt Size: 0.4375 in
- Max Rpm: 6350 rpm
- Series: SF
- Replacement Bearing: 2-015
- Color: Gray
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 2.75
- Bolt Center to Center MM: 69.85
- Bearing Locking Style: Set Screw
- Rolling Element: Ball Bearing
- Housing Style: 4 Bolt Square Flange Block
- Expansion / Non-Expansion: Non-expansion
- Length Across Bore Inch: 1.375
- Length Across Bore MM: 34.925
- Outside Diameter Inch: 4
- Outside Diameter MM: 101.6
- Mounting Bolts: 15/32 Inch
- Insert Part Number: 2-015
- Housing Configuration: 1 Piece Solid
- Pilot Configuration: No Pilot

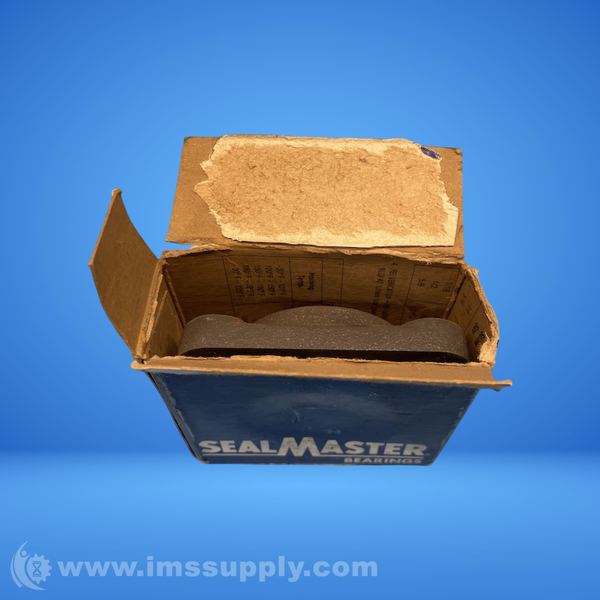

New - Open Box (Special):

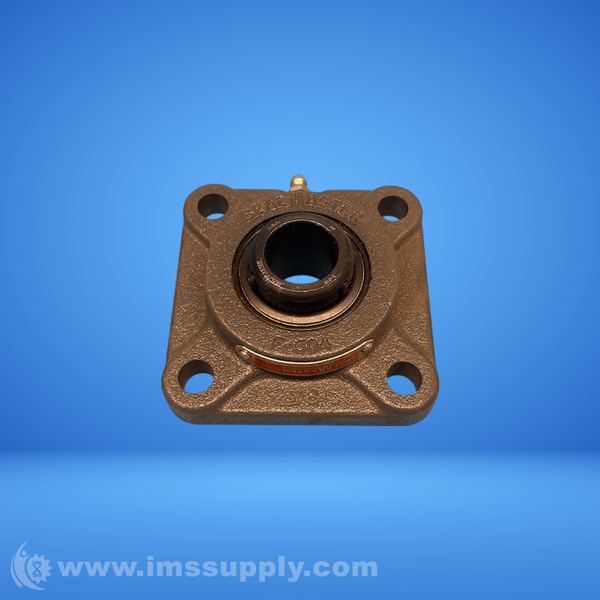

Part has another part #(F-504 10) & attachment screw, part # 2-015.
