SEALMASTER SFT-28 TWO-BOLT FLANGE BALL BEARING
Quick Overview
Brand: SEALMASTER
Part Number: SFT-28
IMS Product Code: 1833749
Packaging: Sold Individually
Description:

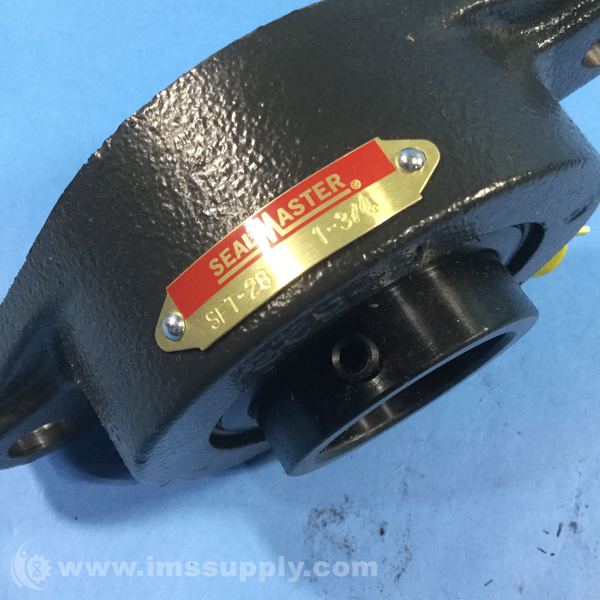

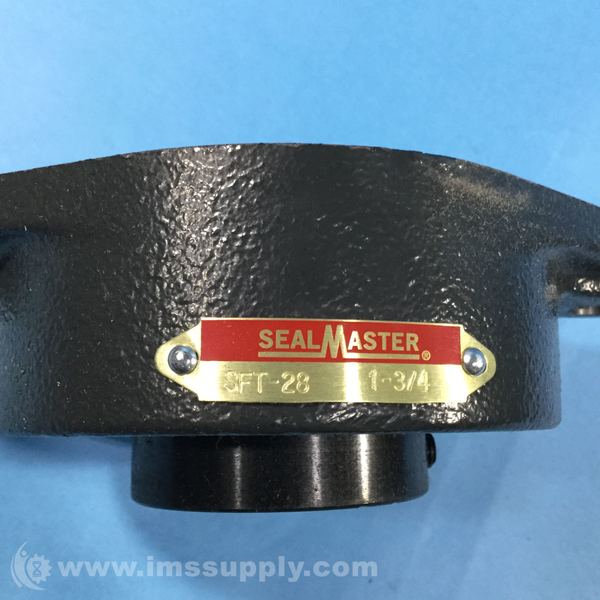

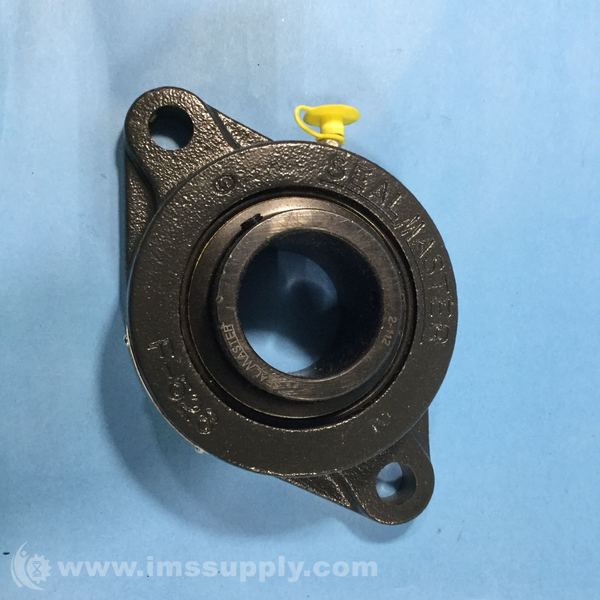

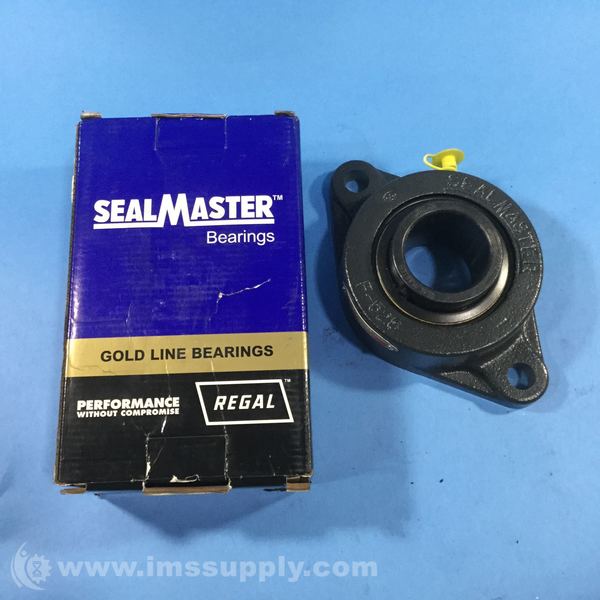

Sealmaster SFT-28 Two-Bolt Flange Ball Bearing
Two-Bolt Flange Ball Bearing Unit with 1-3/4 in Bore, Set Screw Locking, Cast Iron Housing, Non-Expansion Bearing (Fixed), Standard Duty
Specifications
- Bore Diameter: 1-3/4 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Felt Labyrinth Seal or High Temperature Contact Seal
- Lubrication Type: Lithium Complex NLGI 2 Grease or Relubricatable
- Bolt Size: 0.5625 in
- Max Rpm: 3800 rpm
- Operating Temperature Range: -20°F to 220°F
- Radial Dynamic Load Capacity: 7901 lbf
- Radial Static Load Capacity: 5139 lbf
- Weight: 4.63 lbs or 5 lbs
