SEALMASTER TB-12T TAPPED BASE PILLOW BLOCK
Quick Overview
Brand: SEALMASTER
Part Number: TB-12T
IMS Product Code: 2144759
Packaging: Sold Individually
Description:

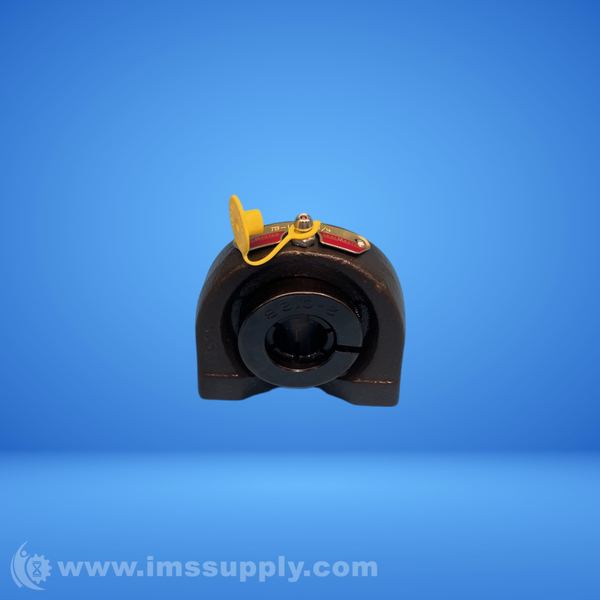

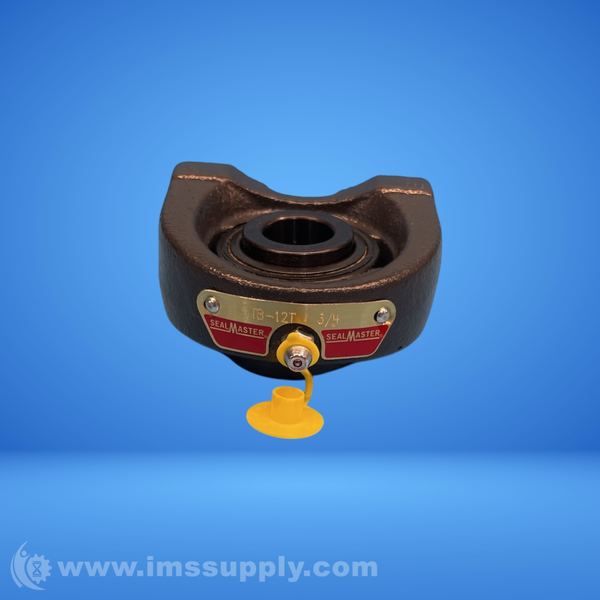

Sealmaster TB-12T Tapped Base Pillow Block
Tapped base pillow block unit with 3/4 inch bore, cast iron housing, and felt seal.
Specifications
- Mounting Type: Tapped Base
- Bore Type: Round
- Bore Diameter: 3/4 in
- Base To Bore Centerline: 1.3125 in
- Duty Type: Standard Duty
- Locking Device: Concentric Collar
- Seal Type: Felt Seal
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 2.5625 in
- Overall Length: 3.1250 in
- Base Width: 1.5000 in
- Overall Width: 1.5000 in
- Finish Coating: Uncoated
- Insert Material: 52100/Black Oxide
- Seal Material: Felt
- Lubrication Type: Lubrication Fitting
- Series: TB
- Weight: 2 lbs
- Locking Type: Concentric Collar
- Number Of Mounting Holes: 2
- Bearing Type: Tapped Base Pillow Block
- Locking: Skwezloc
- Shaft Diameter: 0.75 "
- Ability to Relubricate: Yes
- Cage Material: PPS - Polyphenylene Sulfide
- Dynamic Load Rating (lb): 2611
- Max Operating Temperature (F): 220
- Maximum Speed (RPM): 10200
- Misalignment Capability: ±2.0° Misalignment - Static Only
- Radial Clearance: Standard
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 12 minutes.
