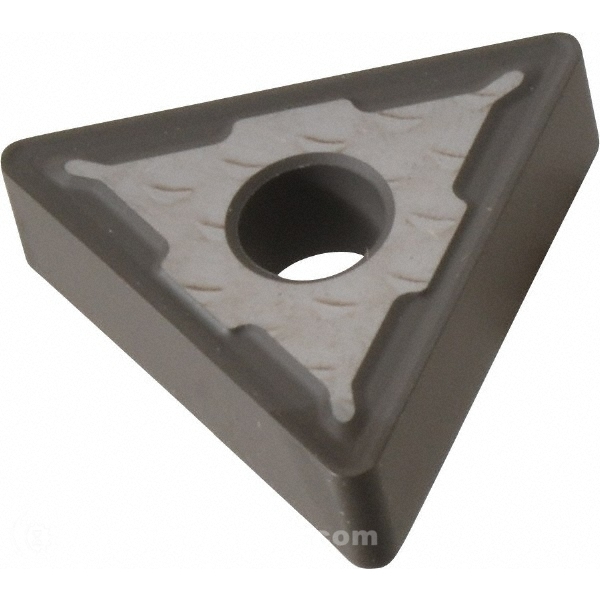

SECO 27579 INSERT TNMG543 M5
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 27579
IMS Product Code: 1790579
Packaging: Sold Individually
Description:
Seco 27579 Insert Tnmg543 M5
Specifications:
| Insert Style | TNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle | 15.88 |
| Inscribed Circle | 0.6250 |
| Inscribed Circle | 5/8 |
| Thickness | 1/4 |
| Thickness | 0.2500 |
| Corner Radius | 3/64 |
| Corner Radius | 0.0469 |
| Manufacturer's Grade | TP2500 |
| Coating | TiCN/Al2O3 |
| Material Grade | C6/C7 |
| Chip breaker | M5 |
| Hole Diameter (Decimal Inch) | 0.2530 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
