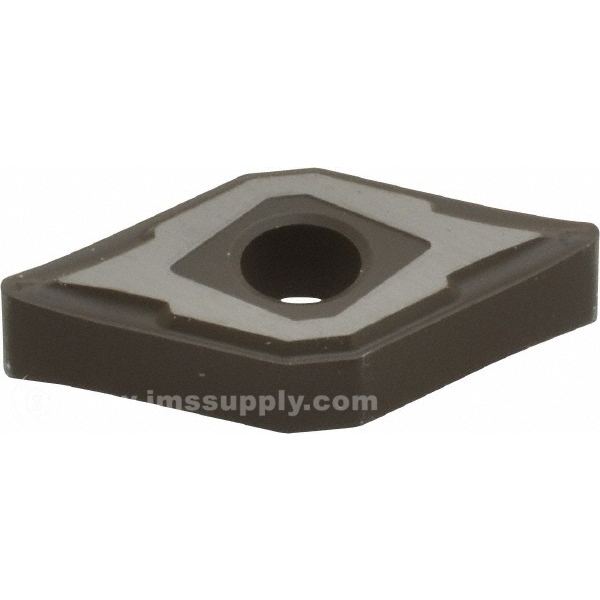

SECO 27667, DNMG432 MF2 TP2500 GRADE CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 27667
IMS Product Code: 1791019
Packaging: Sold Individually
Description:
Seco 27667, DNMG432 MF2 TP2500 Grade Carbide Turning Insert
Specifications:
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0312 |
| Manufacturer's Grade | TP2500 |
| Coating | TiCN/Al2O3 |
| Material Grade | C6/C7 |
| Chip breaker | MF2 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
