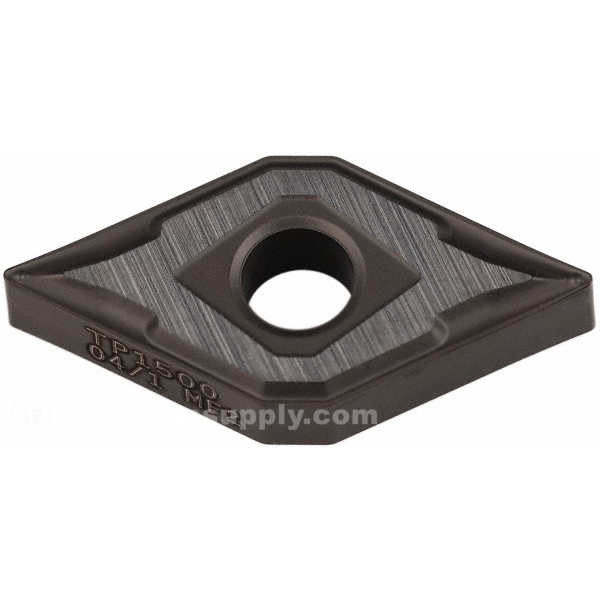

SECO 36388, DNMG431 MF2 TP1500 GRADE CARBIDE TURNING INSERT
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 36388
IMS Product Code: 1791015
Packaging: Sold Individually
Description:
Seco 36388, DNMG431 MF2 TP1500 Grade Carbide Turning Insert
Specifications:
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/64 |
| Corner Radius | 0.0156 |
| Manufacturer's Grade | TP1500 |
| Coating | TiCN/Al2O3 |
| Material Grade | C6 |
| Chip breaker | MF2 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
