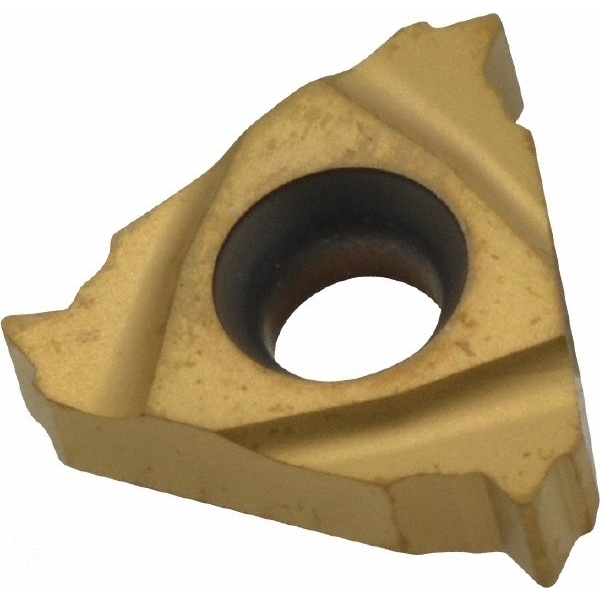

SECO 49818 INSERT THREAD 13 UN EXT RH LAYDOWN
Quick Overview
Manufactured By: SECO TOOLS
Manufacturer Part Number: 49818
IMS Product Code: 1790639
Packaging: Sold Individually
Description:
Seco 49818 Insert Thread 13 Un Ext Rh Laydown
Specifications:
- Material Carbide
- Insert Style 16ER
- Insert Hand Right Hand
- Thread Type External
- Thread Standard UN
- Material Grade Micrograin
- Manufacturer's Grade CP500
- Threads Per Inch 13
- Inscribed Circle 3/8
- Inscribed Circle 0.3750
- Thickness 0.1366
- Coating TiAlN/TiN
- Coating Process PVD
- Corner Radius (Decimal Inch) 0.0090
- Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.047
- Face of Insert to Tip Centerline (Decimal Inch) 0.059
